GROVE GEAR EL8210048.00 EL-BM821-100-L-56 Right Angle Gear Reducer, 100-109 to 1 Reduction Ratio, 10-19 RPM Output, 400-449 lb-in Torque, Aluminum
Get it by Wednesday, Jul 15
€1,603.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 3.91 |
| Aj | 5.88 |
| Application | Aluminum |
| Assembly | BM-L |
| B | 5.75 |
| Be | 0.38" |
| Bf | 0.41 |
| C | 6 22/25" |
| Center Distance | 2.06" |
| D | 2.63 |
| F | 3.25 |
| Family Name | Aluminum Housing Material Worm Gear Reducers |
| Frame | 56C |
| Frame Size | 56C |
| G | 1.63 |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Aluminum |
| I | 3 2/5" |
| Input Bore (c Face) | 5/8" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Flange | 56C |
| Input Hp | 0.217 hp |
| Input Hp @ 1750 Rpm | 0.217 hp |
| Input Keyway Size | 3/16" x 1/2" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | Flexible Coupling Input |
| Input Type | C-Face Coupled |
| J | 4.13" |
| K | 2.06" |
| L1 | 4" |
| Lm | 6.26 |
| Material | Aluminum |
| Max. Input Hp | 0.217 hp , 217/1000 hp |
| Max. Ohl (output Shaft) | 1580 |
| Max. Thrust Load (output Shaft) | 1144 |
| Mounting Type | Base |
| N | 4.68 |
| No. Of Gear Reductions | 1 |
| O | 2.29" |
| Output | Left |
| Output Dia. | 1" |
| Output Hp | 61/500 hp |
| Output Key Size | 1/4" x 1.44" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia. | 1" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Thrust Rating | 1144 |
| Output Shaft Type | Left Handed Shaft |
| Output Speed | 17 RPM |
| Output Style | L |
| Output Torque | 439 lbs.-in. |
| Output Type | Solid Shaft |
| Overhung Load | 1580 lbs. |
| Overhung Load Rating | 1580 lbs. |
| Paint/coating | Aluminum |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-BM-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 17 RPM |
| Tap Depth | 0.87" |
| Tap Size | 3/8"-16 |
| U | 5/8" |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Product Variants
| Product | Model | max. input hp | output torque | gear type | mounting type | gear ratio | center distance | output shaft | no. of gear reductions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

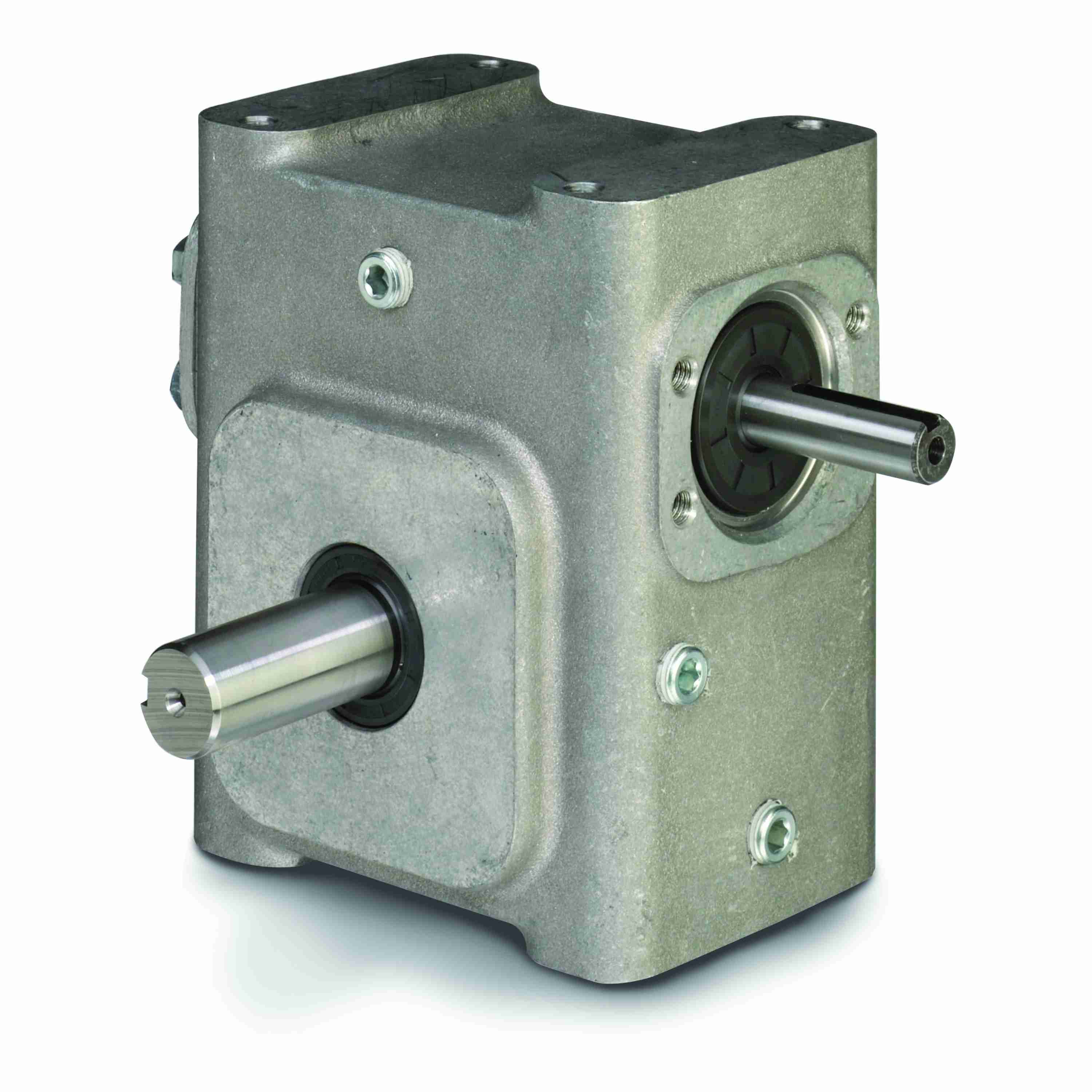

EL8210010.00 | 0.674 hp | - | - | Base | 60:1 | 2.06" | - | - | €1,478.28 | |
 |
EL8210018.00 | 1.333 hp | 985 lbs.-in. | Worm | Base | - | 2.06" | Solid Shaft | 1 | €1,478.28 | |
 |
EL8210148.00 | 1.887 hp | 897 lbs.-in. | Worm | Base | - | 2.06" | Solid Shaft | 1 | €1,603.17 | |
|
EL8212139.00 | - | - | - | - | - | 2.1" | - | - | €1,235.89 | RFQ
|
|
EL8210510.24 | - | - | - | - | - | - | - | - | €1,024.17 | |
 |
EL8210534.18 | 0.674 hp | 940 lbs.-in. | Worm | Shaft Mount | - | 2.06" | Hollow Bore | 1 | €2,038.17 | |
|
EL8210073.00 | 3.653 hp | 614 lbs.-in. | Worm | Base | - | 2.06" | Solid Shaft | 1 | €1,603.17 |
