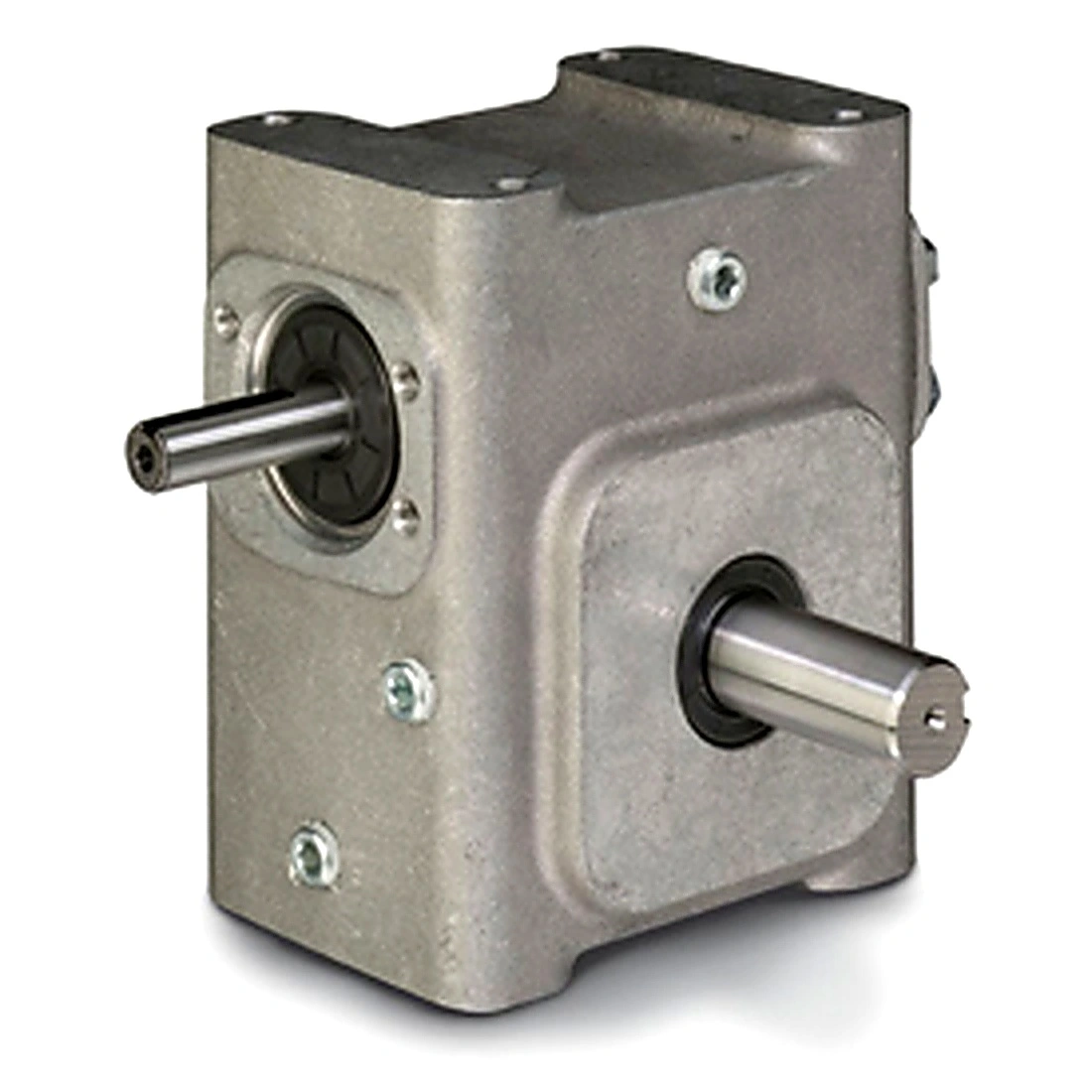

GROVE GEAR EL8210018.00 EL-B821-25-R Right Angle Gear Reducer, 25 to 1 Reduction Ratio, 70 RPM Output, 985 lb-in Torque, Aluminum
Get it by Tuesday, Sep 1
€1,478.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | Aluminum |
| Assembly | B-R |
| Center Distance | 2.06" |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Aluminum |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Hp | 1.333 hp |
| Input Hp @ 1750 Rpm | 1.333 hp |
| Input Keyway Size | 3/16" x 1.38" |
| Input Speed | 1750 RPM |
| Input Style | Solid Shaft |
| Input Type | Solid Shaft |
| Material | Aluminum |
| Max. Ohl (output Shaft) | 1210 |
| Max. Thrust Load (output Shaft) | 1144 |
| Mount Style | B |
| Mounting Type | Base |
| Nema Input Mounting | Solid Shaft |
| No. Of Gear Reductions | 1 |
| Output | Right |
| Output Dia. | 1" |
| Output Hp | 1 47/500 hp |
| Output Key Size | 1/4" x 1.44" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia. | 1" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Thrust Rating | 1144 |
| Output Shaft Type | Right Handed Shaft |
| Output Speed | 70 RPM |
| Output Style | R |
| Output Torque | 985 lbs.-in. |
| Output Type | Solid Shaft |
| Overhung Load | 1210 lbs. |
| Paint/coating | Aluminum |
| Product Datasheet | grove-gear-el8420339-00.pdf |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-B-R |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 70 RPM |
| Tap Depth | 0.87" |
| Tap Size | 3/8"-16 |
| Torque (lb-in)@1750rpm | 985 |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Documentation:
Product Variants
| Product | Model | Output Hp | Output Speed | Output Torque | Max. Input Hp | Output Dia. | Input Dia. | Paint/coating | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EL8210010.00 | 0.435 hp | - | - | 0.674 hp | 1" | 5/8" | Aluminum | - | €1,478.28 | |
 |
EL8210148.00 | 1.661 hp | 116 RPM | 897 lbs.-in. | 1.887 hp | 1" | 7/8" | Aluminum | EL Series | €1,603.17 | |
 |
EL8212139.00 | - | - | - | - | - | - | Aluminum | - | €1,235.89 | RFQ
|
|
EL8210510.24 | - | - | - | - | - | - | - | EL | €1,024.17 | |
 |
EL8210534.18 | 87/200 hp | 29 RPM | 940 lbs.-in. | 0.674 hp | 1 1/8" | 7/8" | Aluminum | EL Series | €2,038.17 | |
 |
EL8210073.00 | 3 41/100 hp | 350 RPM | 614 lbs.-in. | 3.653 hp | 1" | 5/8" | Aluminum | EL Series | €1,603.17 | |
 |
EL8210538.19 | 2.562 hp | 233 RPM | 692 lbs.-in. | 2.793 hp | 1.188" | 5/8" | Aluminum | EL Series | €2,038.17 |
