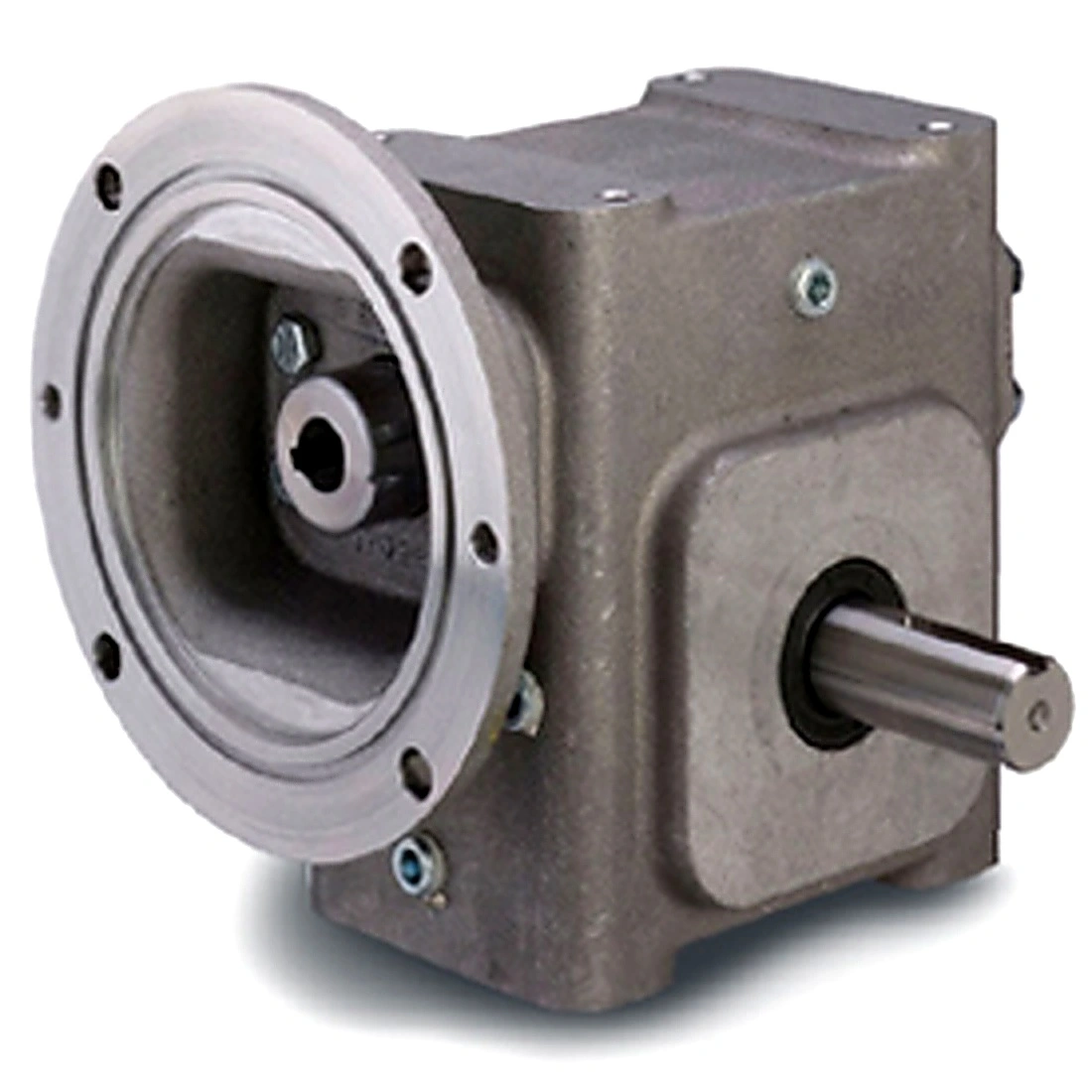

GROVE GEAR EL8130098.00 Worm Reducer, 7.5:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Aluminum
Item: AY9HFCModel: EL8130098.00
7 In Stock
Ships within 2 days via
€1,441.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Reducer |
| Assembly | BMQ-D |
| Center Distance | 1.33" |
| Frame | 56C |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Aluminum |
| Input Bore (c Face) | 5/8" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Hp @ 1750 Rpm | 1 1/40 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Material | Aluminum |
| Max Input Hp | 1 1/40 hp |
| Max. Input Hp | 1 1/40 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 5/8" |
| Output Hp | 0.933 hp |
| Output Key Size | 3/16" x 1.38" |
| Output Rpm | 233 RPM |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | D |
| Output Shaft Dia. | 5/8" |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Shaft Thrust Rating | 948 |
| Output Shaft Type | Double Shaft |
| Output Style | D |
| Output Torque | 252 lbs.-in. |
| Overhung Load | 700 lbs. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-BMQ-D |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Tap Depth | 1/2" |
| Tap Size | 5/16"-18 |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Product Variants
| Product | Model | Output Shaft Type | Max. Input Hp | Output Torque | Mounting Type | Frame | Finish | Gear Type | Overhung Load | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EL8130217.00 | Left Handed Shaft | 1 31/125 hp | 209 lbs.-in. | Base | 140TC | - | Worm | 700 lbs. | €1,364.95 | |
|
EL8130041.00 | - | - | 320 lbs.-in. | - | 56 | - | Worm | - | €676.29 | |
|
EL8130555.10 | - | - | - | - | - | Aluminum Coated | - | - | €667.91 | RFQ
|
|
EL8130077.00 | Left Handed Shaft | 0.551 hp | 320 lbs.-in. | Base | 56C | - | Worm | 700 lbs. | €1,364.95 | |
|
EL8130091.00 | Right Handed Shaft | 79/200 hp | 314 lbs.-in. | Base | 56C | - | Worm | 700 lbs. | €1,364.95 | |
|
EL8130114.00 | - | - | - | - | - | Aluminum Coated | - | - | €518.33 | RFQ
|
 |
EL8130507.10 | Hollow Shaft | 79/200 hp | 314 lbs.-in. | Shaft Mount | - | - | Worm | - | €1,470.22 |
