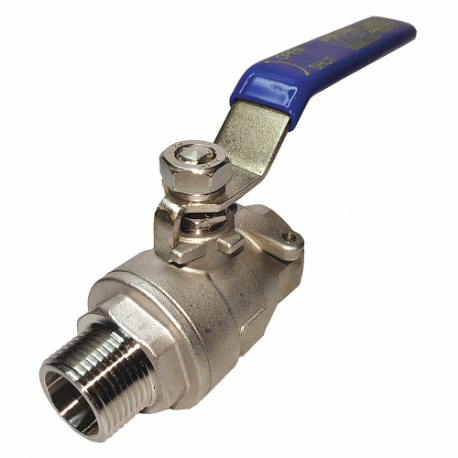

GRAINGER G-SSVM-50NLH Ball Valve, 1/2 Inch Pipe, 2000 PSI CWP, 0-400 Deg F, Lever Handle
Item: CQ2LKXModel: G-SSVM-50NLHCross Ref: 20K934
7 In Stock
Ships within 2 days via
10.00% off
€87.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Stainless Steel |
| Ball Port Style | Full Port |
| Body Material | Stainless Steel |
| Body Seal Material | PTFE |
| Body Style | Inline |
| Coefficient Of Volume (cv) | 18.55 |
| Connection Gender - Side 1 | Male |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/2" |
| Connection Size - Side 2 | 1/2" |
| Connection Type | FNPT x MNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Air, Steam, Water |
| Handle | Lever |
| Handle - Locking | Non Locking |
| Handle Color | Blue |
| Handle Material | Stainless Steel |
| Handle Material Grade | Grade 304 |
| Handle Type | Lever |
| Max. Media Temperature | 400°F |
| Max. Pressure | 2000 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 2000 psi |
| Max. Pressure (steam) | 150 psi |
| Max. Steam Pressure | 150 psi WSP |
| Media Temp. Range | 0°F to 400°F |
| Min. Media Temperature | 0°F |
| Nominal Valve Size | 1/2" |
| Overall Length | 4 4/25" |
| Pipe Size | 1/2" |
| Port | Full |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Standards | Ansi B1.20.3 |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | 0°F to +400°F |
| Vacuum Service Rating | 29.9 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Structure | Two Piece |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Connection Type | Seat Material | Max. Pressure | Stem Material | Body Material | Seal Material | Handle | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
06Q031B04112 | Butt Weld x Butt Weld | PCTFE, PTFE, RPTFE | 1000 psi | Stainless Steel | Stainless Steel | RPTFE | Locking Lever | 4.45" | €207.71 | |
 |
107-827-CL | FNPT x FNPT | PTFE | 600 psi | - | Brass | PTFE | Locking Lever | 7.58" | €106.04 | |
 |
SSV-150 | FNPT x FNPT | PTFE | 1500 psi | Stainless Steel | Stainless Steel | PTFE | Locking Lever | 7.19" | €346.54 | |
 |
SSV-150NLH | FNPT x FNPT | PTFE | 1500 psi | Stainless Steel | Stainless Steel | PTFE | Lever | 7.19" | €331.21 | |
 |
G-F600-150 | FNPT x FNPT | PTFE | 600 psi | Brass | Brass | PTFE | Lever | 8.23" | €120.65 | |
 |
G-F600-150LH | FNPT x FNPT | PTFE | 600 psi | Brass | Brass | PTFE | Locking Lever | 4 4/25" | €108.08 | |
|
06Q031B04114 | Butt Weld x Butt Weld | PCTFE, PTFE, RPTFE | 1000 psi | Stainless Steel | Stainless Steel | RPTFE | Locking Lever | 3.82" | €148.49 |
