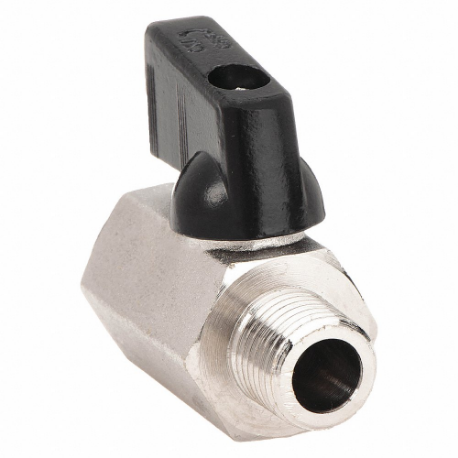

GRAINGER G-DCMV-50 Mini Ball Valve, 1/2 Inch Pipe, Std, 600 psi CWP, -20 Deg to 370 Deg F, Wedge Handle
Item: CQ2LNQModel: G-DCMV-50Cross Ref: 38EG08
7 In Stock
Ships within 2 days via
10.00% off
€20.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mini Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Finish | Brass , Chrome Plated |
| Ball Port Style | Standard Port |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Body Style | Inline |
| Coefficient Of Volume (cv) | 18.55 |
| Connection Gender - Side 1 | Male |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/2" |
| Connection Size - Side 2 | 1/2" |
| Connection Type | FNPT x MNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Features | Compact, Wedge Handle High Pressure |
| For Media | Air, Steam, Water |
| Handle | Wedge |
| Handle Color | Black |
| Handle Length | 1.13" |
| Handle Material | Zinc Alloy |
| Handle Type | Wedge |
| Max. Pressure | 600 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure (steam) | 150 psi |
| Max. Steam Pressure | 150 psi WSP |
| Media Temperature Range | -20°F to +370°F |
| Nominal Valve Size | 1/2" |
| Overall Length | 2.09" |
| Pipe Size | 1/2" |
| Port | Standard |
| Seal Material | FKM |
| Seat Material | PTFE |
| Standards | Mss Sp-110 |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Temp. Range | -20°F to +370°F |
| Vacuum Service Rating | 29.9 in. hg |
| Valve Body Style | Straight |
| Valve Construction | One-Piece |
| Valve Structure | One Piece |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Connection Type | Seat Material | Max. Pressure | Stem Material | Body Material | Seal Material | Handle | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
06Q031B04112 | Butt Weld x Butt Weld | PCTFE, PTFE, RPTFE | 1000 psi | Stainless Steel | Stainless Steel | RPTFE | Locking Lever | 4.45" | €207.71 | |
 |
107-827-CL | FNPT x FNPT | PTFE | 600 psi | - | Brass | PTFE | Locking Lever | 7.58" | €106.04 | |
 |
SSV-150 | FNPT x FNPT | PTFE | 1500 psi | Stainless Steel | Stainless Steel | PTFE | Locking Lever | 7.19" | €346.54 | |
 |
SSV-150NLH | FNPT x FNPT | PTFE | 1500 psi | Stainless Steel | Stainless Steel | PTFE | Lever | 7.19" | €331.21 | |
 |
G-F600-150 | FNPT x FNPT | PTFE | 600 psi | Brass | Brass | PTFE | Lever | 8.23" | €120.65 | |
 |
G-F600-150LH | FNPT x FNPT | PTFE | 600 psi | Brass | Brass | PTFE | Locking Lever | 4 4/25" | €108.08 | |
|
06Q031B04114 | Butt Weld x Butt Weld | PCTFE, PTFE, RPTFE | 1000 psi | Stainless Steel | Stainless Steel | RPTFE | Locking Lever | 3.82" | €148.49 |
