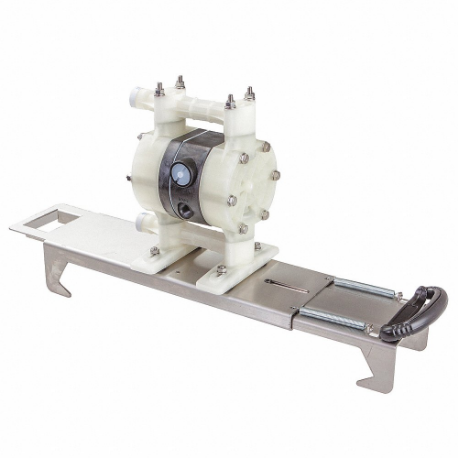

GRAINGER DIASYS-DRUM Air Operated Drum Pump, 30 Gal 55 Gal For Container Size, 13 Gpm
Get it by Monday, Feb 16
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€2,444.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Operated Drum Pump |
| Adapter Connection Type | MNPT |
| Adapter Material | Polyethylene |
| Agency Compliance | Ex |
| Air Inlet Size | 3/8" |
| Air Outlet Size | 3/8" |
| Bung Connection Dia. | 2" |
| Compatible Chemicals | Ammonia (Liquids), Antifreeze (Coolant), Brake Fluid, Diesel Fuel, Ethyl (Ethanol), Ethylene Glycol, Fertilizers, Fungicides, Glycerin, Herbicides, Hydraulic Oils (Synthetic), Isopropyl (Isopropanol), Methyl (Methanol), Pesticides, Sodium Bicarbonate (10%), Windshield Washer Fluid |
| Diesel Exhaust Fluid Compatible | Yes |
| Discharge Connection Type | Hose Barb |
| Discharge Tube Inside Dia. | 1/2" |
| Discharge Tube Outlet Od | 3/4" |
| Duty Cycle | Continuous |
| Explosion Proof | Yes |
| Features | High Suction Lift Even At Dry Start Up, Self-Priming Pump Design |
| Food Grade | No |
| For Container Size | 30 gal., 55 gal. |
| For Container Type | Drum |
| For Media Type | Ammonia, Antifreeze, Brake Fluid, Diesel Fuel, Ethanol, Ethylene Glycol, Fertilizers, Fungicides, Glycerin, Herbicides, Hydraulic Oil, Isopropanol, Methanol, Pesticides, Sodium Bicarbonate, Windshield Washer Fluid |
| For Use With | 55 gal. Drums, Ibc |
| Height Above Container | 9" |
| Hose Cover Material | Buna-N |
| Hose Inside Dia. | 1/2" |
| Hose Length | 59" |
| Hose Outside Dia. | 3/4" |
| Hose Tube Material | Buna N |
| Housing Material | Aluminum |
| Housing Material - Pumps | Aluminum |
| Includes | Diaphragm, Discharge Hose, Drum Bracket, Nozzle, Suction Tube |
| Includes Bung Adapter | Yes |
| Includes Discharge Hose | Yes |
| Includes Nozzle | Yes |
| Includes Spout | Yes |
| Includes Suction Tube | Yes |
| Length | 41 1/2" |
| Max. Air Pressure | 140 psi |
| Max. Flow Rate | 13 GPM |
| Max. Fluid Temp. | 130°F |
| Max. Head - Pumps | 20 ft. |
| Max. Head Pressure | 10 psi |
| Max. Oil Flow | 13 GPM |
| Max. Outlet Pressure | 100 psi |
| Max. Viscosity | 500 cPS |
| Metered | No |
| Min. Air Pressure | 20 psi |
| Min. Fluid Temp. | 45°F |
| Noise Level | 70 dBA |
| Not Recommended Chemicals | Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%) |
| Nozzle Material | Polypropylene |
| Nozzle Operation | Manual |
| Outlet Size | 3/8" |
| Overall Length | 41 1/2" |
| Power Source | Air |
| Pump Connection Inside Dia. | 1/2" |
| Pump Connection Outside Dia. | 3/4" |
| Pump Connection Type | FNPT |
| Pump Package Type | Unmetered Dispensing With Manual Shut-Off |
| Ratio | 1:1 |
| Runs Dry | Yes |
| Seal Material | Buna-N |
| Self-priming | Yes |
| Spout Connection Size | 1" |
| Spout Connection Type | FNPT |
| Spout Length | 7" |
| Spout Material | Polypropylene |
| Suction Tube Inside Dia. | 7/16" |
| Suction Tube Length | 114" |
| Suction Tube Material | Polyethylene |
| Suction Tube Od | 1/2" |
| Variable Speed | Yes |
| Wetted Materials | Buna N, Polypropylene, Stainless Steel, Tefzel |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | For Container Size | Max. Flow Rate | Max. Viscosity | Diesel Exhaust Fluid Compatible | Max. Outlet Pressure | Suction Tube Inside Dia. | Max. Head Pressure | Noise Level | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
53RU56 | 275 gal. | 22 GPM | 1500 cPS | No | 16 psi | 1 3/8" | 16 psi | 88 dB | €2,568.42 | |
 |
EMER-DD8 | - | - | - | - | 10 psi | 13/16" | - | - | €424.83 | |
 |
DIASYS-CART | 30 gal., 55 gal. | 13 GPM | 500 cPS | - | 100 psi | - | 10 psi | 70 dBA | €3,789.61 | |
 |
ACT-ELEMXRPPA | 30 gal., 55 gal. | 54 GPM | 1000 cPS | No | 13 psi | 1 5/16" | 10 psi | 80 dBA | €4,384.57 | |
 |
ACTKIT31 | 30 gal., 55 gal. | 6 GPM | 600 cPS | No | 435 psi | 1 7/8" | 100 psi | 75 dBA | €3,087.75 | |
 |
ACT-ELEMXRSSA | - | - | - | - | - | 1 3/8" | 10 psi | 80 dBA | €5,144.33 |
