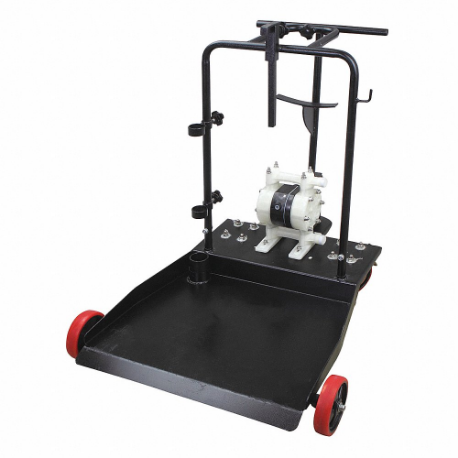

GRAINGER DIASYS-CART Air Operated Drum Pump, 30 Gal 55 Gal For Container Size, 13 Gpm
Get it by Tuesday, Sep 1
5.00% off
€3,300.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Operated Drum Pump |
| Agency Compliance | Ex |
| Air Inlet Size | 3/8" |
| Air Outlet Size | 3/8" |
| Compatible Chemicals | Ammonia (Liquids), Antifreeze (Coolant), Brake Fluid, Diesel Fuel, Ethyl (Ethanol), Ethylene Glycol, Fertilizers, Fungicides, Glycerin, Herbicides, Isopropyl (Isopropanol), Methyl (Methanol), Pesticides, Sodium Bicarbonate (10%), Windshield Washer Fluid |
| Discharge Connection Type | Hose Barb |
| Discharge Tube Inside Dia. | 1/2" |
| Discharge Tube Outlet Outside Dia. | 7/8" |
| Duty Cycle | Continuous |
| Explosion Proof | Yes |
| Features | High Suction Lift Even At Dry Start Up, Self-Priming Pump Design |
| Food Grade | No |
| For Container Size | 30 gal., 55 gal. |
| For Container Type | Drum |
| For Media Type | Ammonia, Antifreeze, Brake Fluid, Diesel Fuel, Ethanol, Ethylene Glycol, Fertilizers, Fungicides, Glycerin, Herbicides, Isopropanol, Methanol, Pesticides, Sodium Bicarbonate, Windshield Washer Fluid |
| For Use With | 55 gal. Drums, Chemicals |
| Height Above Container | 9" |
| Hose Cover Material | Buna-N |
| Hose Inside Dia. | 1/2" |
| Hose Length | 78" |
| Hose Outside Dia. | 3/4" |
| Hose Tube Material | Buna N |
| Housing Material | Aluminum |
| Housing Material-pumps | Aluminum |
| Included | Diaphragm, Discharge Hose, Dispensing Control, Drum Cart, Intake Tube |
| Included Bung Adapter | No |
| Included Discharge Hose | Yes |
| Included Nozzle | Yes |
| Included Spout | Yes |
| Included Suction Tube | Yes |
| Length | 41 1/2" |
| Max. Air Pressure | 140 psi |
| Max. Flow Rate | 13 GPM |
| Max. Fluid Temp. | 130°F |
| Max. Head Pressure | 10 psi |
| Max. Head-pumps | 20 ft. |
| Max. Oil Flow | 13 GPM |
| Max. Outlet Pressure | 100 psi |
| Max. Viscosity | 500 cPS |
| Metered | No |
| Min. Air Pressure | 20 psi |
| Min. Fluid Temp. | 45°F |
| Noise Level | 70 dBA |
| Not Recommended Chemicals | Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%) |
| Nozzle Material | Polypropylene |
| Nozzle Operation | Manual |
| Outlet Size | 3/8" |
| Overall Length | 41 1/2" |
| Power Source | Air |
| Pump Connection Inside Dia. | 1/2" |
| Pump Connection Outside Dia. | 7/8" |
| Pump Connection Type | FNPT |
| Pump Package Type | Unmetered Dispensing With Manual Shut-Off |
| Ratio | 1:1 |
| Runs Dry | Yes |
| Seal Material | Buna N |
| Self Priming | Yes |
| Spout Connection Size | 1" |
| Spout Connection Type | FNPT |
| Spout Length | 7" |
| Spout Material | Polypropylene |
| Suction Tube Inside Dia. | 7/16" |
| Suction Tube Length | 36" |
| Suction Tube Material | Buna N |
| Suction Tube Outside Dia. | 1/2" |
| Variable Speed | Yes |
| Wetted Material | Buna N, Polypropylene, Stainless Steel, Tefzel |
Shipping Info:
| Ship weight (kg) | 22.95 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Power Source | Max. Flow Rate | For Container Size | Hose Inside Dia. | Discharge Tube Outlet Outside Dia. | Discharge Tube Inside Dia. | Suction Tube Inside Dia. | For Container Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
53RU56 | Electric | 22 GPM | 275 gal. | 1" | 1 1/2" | 1" | 1 3/8" | Tote | €2,612.10 | |
 |
EMER-DD8 | Hand Operated | - | - | 1" | - | 3/4" | 13/16" | Drum | €394.89 | |
 |
DIASYS-DRUM | Air | 13 GPM | 30 gal., 55 gal. | 1/2" | 3/4" | 1/2" | 7/16" | Drum | €2,467.15 | |
 |
ACT-ELEMXRPPA | Air | 54 GPM | 30 gal., 55 gal. | - | - | 1 1/4" | 1 5/16" | Drum | €3,982.91 | |
 |
ACTKIT31 | Air | 6 GPM | 30 gal., 55 gal. | 1/2" | 1" | 3/4" | 1 7/8" | Drum | €2,804.89 | |
 |
ACT-ELEMXRSSA | Air | - | - | - | - | 1 1/4" | 1 3/8" | Drum | €4,673.06 |
