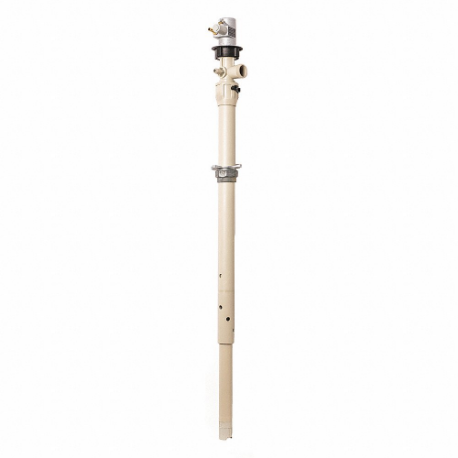

GRAINGER ACT-ELEMXRPPA Air Operated Drum Pump, 30 Gal 55 Gal For Container Size, 54 Gpm
Get it by Monday, Jul 6
5.00% off
€3,783.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Operated Drum Pump |
| Adapter Connection Type | MNPT |
| Adapter Material | Aluminum |
| Agency Compliance | Ce, Ex |
| Air Inlet Size | 1/4" |
| Air Outlet Size | 1/4" |
| Bung Connection Dia. | 2" |
| Compatible Chemicals | Ammonia (Liquids), Antifreeze (Coolant), Brake Fluid, Diesel Fuel, Ethyl (Ethanol), Ethylene Glycol, Fertilizers, Fungicides, Herbicides, Hydraulic Oils (Synthetic), Methyl (Methanol), Pesticides, Sodium Bicarbonate (10%), Windshield Washer Fluid |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | Hose Barb |
| Discharge Tube Inside Dia. | 1 1/4" |
| Discharge Tube Outside Dia. | 1 1/2" |
| Duty Cycle | Continuous |
| Explosion Proof | Yes |
| Features | Air Motor With Silencer, Handle For On/Off Mixing |
| Food Grade | No |
| For Container Size | 30 gal., 55 gal. |
| For Container Type | Drum |
| For Media Type | Ammonia, Antifreeze, Brake Fluid, Diesel Fuel, Ethanol, Ethylene Glycol, Fertilizers, Fungicides, Herbicides, Hydraulic Oil, Methanol, Pesticides, Sodium Bicarbonate, Windshield Washer Fluid |
| For Use With | 55 gal. Drums, Chemicals |
| Height Above Container | 9" |
| Housing Material | Aluminum |
| Housing Material-pumps | Aluminum |
| Included | Hose Barb, Mixer, Tube Set |
| Included Bung Adapter | Yes |
| Included Discharge Hose | No |
| Included Nozzle | No |
| Included Spout | No |
| Included Suction Tube | Yes |
| Length | 44" |
| Max. Air Pressure | 140 psi |
| Max. Flow Rate | 54 GPM |
| Max. Fluid Temp. | 130°F |
| Max. Head Pressure | 10 psi |
| Max. Head-pumps | 42 ft. |
| Max. Oil Flow | 33 GPM |
| Max. Outlet Pressure | 13 psi |
| Max. Viscosity | 1000 cPS |
| Metered | No |
| Min. Air Pressure | 45 psi |
| Min. Fluid Temp. | 45°F |
| Motor Enclosure | Tefc |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 10000 RPM |
| Noise Level | 80 dBA |
| Not Recommended Chemicals | Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%) |
| Outlet Size | 1/4" |
| Overall Length | 44" |
| Power Source | Air |
| Pump Connection Inside Dia. | 1" |
| Pump Connection Outside Dia. | 1 1/2" |
| Pump Connection Type | MNPT |
| Pump Package Type | Basic Pump Without Discharge Hose |
| Ratio | 1:1 |
| Runs Dry | Yes |
| Seal Material | Tefzel |
| Self Priming | Yes |
| Suction Tube Inside Dia. | 1 5/16" |
| Suction Tube Length | 39" |
| Suction Tube Material | Polypropylene |
| Suction Tube Outside Dia. | 2" |
| Variable Speed | Yes |
| Wetted Material | Polypropylene, Stainless Steel, Tefzel |
Shipping Info:
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | For Container Size | Max. Flow Rate | Max. Viscosity | Diesel Exhaust Fluid Compatible | Suction Tube Inside Dia. | Suction Tube Outside Dia. | Max. Outlet Pressure | Max. Head Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
53RU56 | 275 gal. | 22 GPM | 1500 cPS | No | 1 3/8" | 1 5/8" | 16 psi | 16 psi | €2,612.10 | |
 |
EMER-DD8 | - | - | - | - | 13/16" | 1" | 10 psi | - | €394.89 | |
 |
DIASYS-DRUM | 30 gal., 55 gal. | 13 GPM | 500 cPS | Yes | 7/16" | 1/2" | 100 psi | 10 psi | €2,467.15 | |
 |
DIASYS-CART | 30 gal., 55 gal. | 13 GPM | 500 cPS | - | 7/16" | 1/2" | 100 psi | 10 psi | €3,474.68 | |
 |
ACTKIT31 | 30 gal., 55 gal. | 6 GPM | 600 cPS | No | 1 7/8" | 1 63/64" | 435 psi | 100 psi | €2,804.89 | |
 |
ACT-ELEMXRSSA | - | - | - | - | 1 3/8" | - | - | 10 psi | €4,673.06 |
