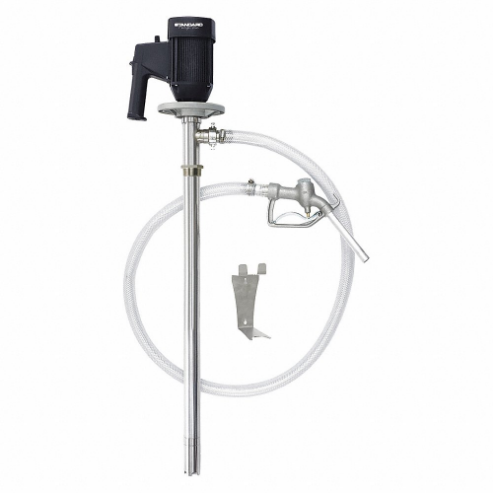

DAYTON 53RU56 Drum Pump, Electric Operated, 1HP, Aluminium, 22Gpm
Get it by Tuesday, Feb 17
10.00% off
€2,311.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Operated Drum Pump |
| Adapter Connection Type | MNPT |
| Adapter Dia. | 1.688" |
| Adapter Material | Stainless Steel |
| Adapter Size | 1 11/16" |
| Bung Connection Dia. | 2" |
| Bung Connection Size | 2" |
| Clamp Style | Worm |
| Compatible Chemicals | Antifreeze (Coolant), Deionized Water, Ethylene Glycol, Fresh Water, Glycerin, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil, Salt Water, Sodium Bicarbonate (10%) |
| Cord Length | 16 ft. |
| Def Compatible | No |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | Hose Barb |
| Discharge Tube Inside Dia. | 1" |
| Discharge Tube Length | 6 ft. |
| Discharge Tube Outlet I.d. | 1" |
| Discharge Tube Outlet Id Size | 1" |
| Discharge Tube Outlet O.d. | 1 1/2" |
| Discharge Tube Outlet Od Size | 1-1/4" |
| Discharge Tubing Material | PVC |
| Display Qty | 1 |
| Duty | Intermittent |
| Duty Cycle | Intermittent |
| Features | Stainless Steel Hose Clamps |
| Fits Container Size | 275 gal. |
| Flow Rate | 22 GPM |
| Food Grade | No |
| For Container Size | 275 gal. |
| For Container Type | Tote |
| For Media Type | Antifreeze, Ethylene Glycol, Glycerin, Hydraulic Oil, Motor Oil, Sodium Bicarbonate, Water |
| For Use With | 9762 |
| Frequency | 50/60 Hz |
| Full Load Amps | 8.5A |
| Grade | Grade 304 |
| Height | 61" |
| Hose Cover Material | PVC |
| Hose I.d. | 1" |
| Hose Inside Dia. | 1" |
| Hose Length | 72" |
| Hose Material | PVC |
| Hose Outside Dia. | 1 1/4" |
| Hose Tube Material | PVC |
| Housing Material | Aluminum |
| Housing Material - Pumps | Aluminum |
| Includes | Adapter, Hose, Motor, Nozzle With 3/4 In Spout |
| Includes Bung Adapter | Yes |
| Includes Discharge Hose | Yes |
| Includes Nozzle | Yes |
| Includes Spout | No |
| Includes Suction Tube | Yes |
| Inlet Size | 1 1/2" |
| Length | 60" |
| Max. Flow Rate | 22 GPM |
| Max. Flow Rate For Water | 22 GPM |
| Max. Fluid Temp. | 175°F |
| Max. Gpm For Water | 22 |
| Max. Head | 16 ft. |
| Max. Head - Pumps | 36 ft. |
| Max. Head Pressure | 16 psi |
| Max. Oil Flow | 7 GPM |
| Max. Outlet Pressure | 16 psi |
| Max. Pressure | 14 psi |
| Max. Temp. | 175°F |
| Max. Viscosity | 1500 cPS |
| Media Type | Antifreeze, Ethylene Glycol, Glycerin, Hydraulic Oil, Motor Oil, Sodium Bicarbonate, Water |
| Metered | No |
| Motor Enclosure | Odp |
| Motor Enclosure Design | Open Dripproof |
| Motor Hp | 1 1/10 hp |
| Motor Speed | 18000 RPM |
| Motor Type | Electric AC Brush |
| Noise Level | 88 dB |
| Noise Level | 88 dBA |
| Nominal Voltage | 110V AC |
| Nozzle Material | Aluminum |
| Nozzle Operation | Manual |
| Operation Type | Manual |
| Outlet Size | 1" |
| Outlet Type | Hose Barb |
| Overall Length | 60" |
| Phase | 1 |
| Plug Type | NEMA 5-15-P |
| Power Source | Electric |
| Pump Package Type | Unmetered Dispensing With Manual Shut-Off |
| Runs Dry | Yes |
| Seal Material | Sealless |
| Self Priming | Yes |
| Self-priming | Yes |
| Spout Connection Type | Hose Barb |
| Suction Tube I.d. | 1 3/8" |
| Suction Tube Inside Dia. | 1 3/8" |
| Suction Tube Length | 47" |
| Suction Tube Material | Aluminum |
| Suction Tube O.d. | 1 5/8" |
| Suction Tube Outlet O.d. Size | 1-1/2" |
| Suction Tube Outside Dia. | 1 5/8" |
| Suction Tube Type | 1-Piece Tube |
| Thermal Protection | Yes |
| Variable Speed | Yes |
| Voltage Rating | 110V AC |
| Wetted Material | Aluminum, Buna, Carbon Graphite, PTFE, PVC, Stainless Steel |
| Wetted Material Grade | Grade 316 |
| Wetted Materials | Aluminum, Buna, Carbon Graphite, PTFE, PVC, SS316 |
| Width | 4 3/5" |
Shipping Info:
| Ship weight (kg) | 10.64 |
| Ship height (cm) | 154.94 |
| Ship length (cm) | 152.4 |
| Ship width (cm) | 11.71 |
| Country of Origin | US |
Product Variants
| Product | Model | For Container Size | Max. Flow Rate | Max. Viscosity | Diesel Exhaust Fluid Compatible | Max. Outlet Pressure | Suction Tube Inside Dia. | Max. Head Pressure | Noise Level | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EMER-DD8 | - | - | - | - | 10 psi | 13/16" | - | - | €424.83 | |
 |
DIASYS-DRUM | 30 gal., 55 gal. | 13 GPM | 500 cPS | Yes | 100 psi | 7/16" | 10 psi | 70 dBA | €2,715.96 | |
 |
DIASYS-CART | 30 gal., 55 gal. | 13 GPM | 500 cPS | - | 100 psi | - | 10 psi | 70 dBA | €3,789.61 | |
 |
ACT-ELEMXRPPA | 30 gal., 55 gal. | 54 GPM | 1000 cPS | No | 13 psi | 1 5/16" | 10 psi | 80 dBA | €4,384.57 | |
 |
ACTKIT31 | 30 gal., 55 gal. | 6 GPM | 600 cPS | No | 435 psi | 1 7/8" | 100 psi | 75 dBA | €3,087.75 | |
 |
ACT-ELEMXRSSA | - | - | - | - | - | 1 3/8" | 10 psi | 80 dBA | €5,144.33 |
