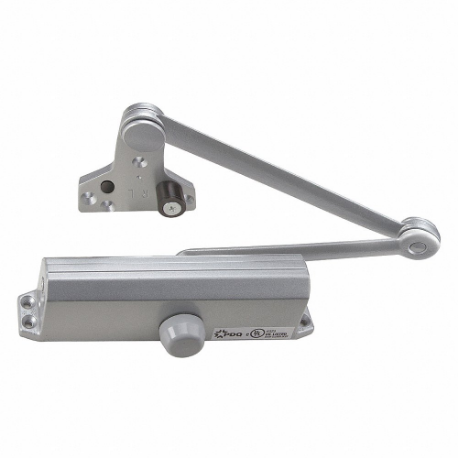

GRAINGER 3100 BCDS 689 Door Closer, Non Hold Open, Non-Handed, 9 1/16 Inch Housing Lg, 1 7/8 Inch Housing Dp
Item: CP9CPMModel: 3100 BCDS 689Cross Ref: 45NA33
7 In Stock
Ships within 2 days via
10.00% off
€187.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Door Closer |
| Ada Compliant | Yes |
| Arm Material | Steel |
| Arm Type | Parallel |
| Closer Cycles | 2000000 |
| Closer Mounting Type | Parallel |
| Closer Series | 3100 Series |
| Closer Stop Type | Compression |
| Closer Type | Non Hold Open |
| Color | Gray |
| Compatible With Series | 1260 Series |
| Door Width Campatibility | 54" |
| Energy Source | Hydraulic |
| Exterior Door Width | 48" |
| Exterior Door Width - Maximum | 48" |
| Finish | Aluminum Painted |
| Fire Rating | 3 hrs. |
| Hand Orientation | Non Handed |
| Height Between Mounting Holes | 3/4" |
| Housing Depth | 1 7/8" |
| Housing Height | 1 7/8" |
| Housing Length | 11 1/4" |
| Hydraulic/pneumatic | Hydraulic |
| Includes | Bolts, Sex Nuts |
| Includes Hardware | Hardware Included |
| Interior / Exterior | Interior And Exterior |
| Interior Door Width | 54" |
| Length Between Mounting Holes | 9 1/16" |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Use | Interior/Exterior |
| Manual/automatic | Manual |
| Material | Aluminum |
| Max Door Opening Angle | 110° |
| Max. Door Opening | 110° |
| Mounting Hardware | Included |
| Operation Style | Manual |
| Performance Rating | Grade 3 Light Duty |
| Product Type | Door Closer |
| Projection | 2 1/2" |
| Projection From Wall | 2 1/2" |
| Spring Size | 6 |
| Spring Size - Minimum | 3 |
| Spring Type | Adjustable |
Shipping Info:
| Ship weight (kg) | 3.47 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Spring Size | Finish | Closer Type | Arm Type | Color | Arm Material | Material | Fire Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7101 BC DS HO 689 | 6 | Aluminum Painted | Hold Open | Parallel | Gray | Cast Iron | Cast Iron | 3 hrs. | €476.70 | |
 |
7101 BC PA HO 689 | 6 | Aluminum Painted | Hold Open | Parallel | Gray | Cast Iron | Cast Iron | 3 hrs. | €441.85 | |
 |
5831T x 690 GAV | 6 | Dark Bronze Paint | Hold Open | Parallel, Regular | Bronze | Steel | Cast Iron | 90 min. | €532.09 | |
 |
5831T x 689 GAV | 6 | Aluminum Paint | Hold Open | Parallel, Regular | Gray | Steel | Cast Iron | 90 min. | €538.58 | |
 |
5811 x 690 GAV | 6 | Dark Bronze Paint | Hold Open | Parallel, Regular | Bronze | Steel | Cast Iron | 90 min. | €490.04 | |
 |
2711 x 689 GAV | 6 | Aluminum Paint | Hold Open | Parallel, Regular | Gray | Steel | Aluminum | - | €354.03 | |
 |
2711 X 690 GAV | 6 | Dark Bronze Paint | Hold Open | Parallel, Regular | Bronze | Steel | Aluminum | - | €354.03 |
