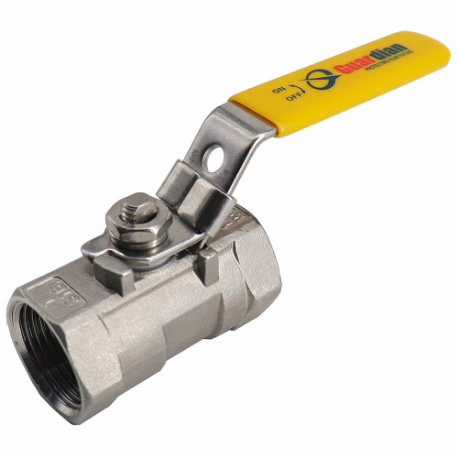

GRAINGER 06Q011N04034 Reduced Port Ball Valve, 3/4 Inch Pipe, 3/4 Inch Tube, Reduced, 1000 Psi, Female Npt
Item: CQ2LQMModel: 06Q011N04034Cross Ref: 796A77
7 In Stock
Ships within 2 days via
10.00% off
€33.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Stainless Steel |
| Ball Material Grade | Grade 316 |
| Ball Port Style | Standard Port |
| Body Material | Stainless Steel |
| Body Seal Material | PTFE |
| Body Style | Two Way |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 3/4" |
| Connection Size - Side 2 | 3/4" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Features | Inspection: API598, Lost Wax Precision Casting |
| For Media | Combustible Gases, Water |
| Handle | Locking Lever |
| Handle - Locking | Locking |
| Handle Color | Yellow |
| Handle Height | 1.73" |
| Handle Length | 3.74" |
| Handle Material | Stainless Steel |
| Handle Material Grade | Grade 304 |
| Handle Type | Lever |
| Hose I.d. | 1/2" |
| Max. Media Temperature | 320°F |
| Max. Pressure | 1000 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 1000 psi |
| Max. Steam Pressure | 1000 psi |
| Media Temperature Range | 32°F to 320°F |
| Min. Media Temperature | 32°F |
| Nominal Valve Size | 3/4" |
| Overall Length | 2 8/25" |
| Pipe Size | 3/4" |
| Port | Reduced |
| Seal Material | RPTFE |
| Seat Material | PCTFE, PTFE, RPTFE |
| Standards | Ad2000-Wo |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | +32°F to +320°F |
| Tube Size | 3/4" |
| Valve Body Style | Straight |
| Valve Construction | One-Piece |
| Valve Series | Q011N04 Series |
| Valve Structure | One Piece |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Connection Type | Seat Material | Max. Pressure | Stem Material | Body Material | Seal Material | Handle | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
06Q031B04112 | Butt Weld x Butt Weld | PCTFE, PTFE, RPTFE | 1000 psi | Stainless Steel | Stainless Steel | RPTFE | Locking Lever | 4.45" | €207.71 | |
 |
107-827-CL | FNPT x FNPT | PTFE | 600 psi | - | Brass | PTFE | Locking Lever | 7.58" | €106.04 | |
 |
SSV-150 | FNPT x FNPT | PTFE | 1500 psi | Stainless Steel | Stainless Steel | PTFE | Locking Lever | 7.19" | €346.54 | |
 |
SSV-150NLH | FNPT x FNPT | PTFE | 1500 psi | Stainless Steel | Stainless Steel | PTFE | Lever | 7.19" | €331.21 | |
 |
G-F600-150 | FNPT x FNPT | PTFE | 600 psi | Brass | Brass | PTFE | Lever | 8.23" | €120.65 | |
 |
G-F600-150LH | FNPT x FNPT | PTFE | 600 psi | Brass | Brass | PTFE | Locking Lever | 4 4/25" | €108.08 | |
|
06Q031B04114 | Butt Weld x Butt Weld | PCTFE, PTFE, RPTFE | 1000 psi | Stainless Steel | Stainless Steel | RPTFE | Locking Lever | 3.82" | €148.49 |
