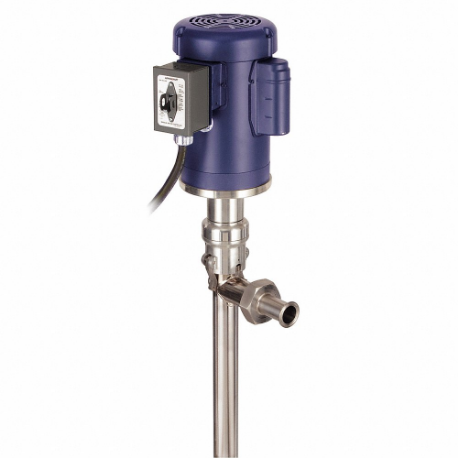

FINISH THOMPSON HVDP & M62 Electric Operated Drum Pump, 2 Hp Motor Hp, 55 Gal For Container Size
Get it by Thursday, Aug 27
5.00% off
€11,551.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Operated Drum Pump |
| Action Type | Piston |
| Adapter Material | Stainless Steel |
| Application | Food Ingredients, Pharmaceuticals, Colorants. |
| Bung Connection Dia. | 2" |
| Bung Connection Size | 2" |
| Compatible Chemicals | Acetic Acid 20%, Antifreeze (Coolant), Automatic Transmission Fluid, Brake Fluid, Calcium Chloride, Citric Acid 50%, Deionized Water, Ethylene Glycol, Fresh Water, Lithium Grease, Paint, Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Trichlorethylene (50%) |
| Cord Length | 12 ft. |
| Def Compatible | No |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | Tri Clamp |
| Discharge Tube Inside Dia. | 1 1/2" |
| Discharge Tube Outlet Inside Dia. | 1 1/2" |
| Discharge Tube Outlet Outside Dia. | 1 7/8" |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Explosion Proof | No |
| Food Grade | No |
| For Container Size | 55 gal. |
| For Container Type | Drum |
| For Media Type | Acetic Acid, Antifreeze, Automatic Transmission Fluid, Brake Fluid, Calcium Chloride, Citric Acid, Ethylene Glycol, Lithium Grease, Paint, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Trichlorethylene, Water |
| For Use With | Colorants., Food Ingredients, Pharmaceuticals |
| Frequency | 60 Hz |
| Full Load Amps | 10/20A |
| Grade | Grade 316 |
| Hose Length | 60" |
| Hose Material | PVC |
| Hose Outside Dia. | 1 7/8" |
| Hose Tube Material | PVC |
| Housing Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Included | Motor And Pump |
| Included Bung Adapter | No |
| Included Discharge Hose | Yes |
| Included Nozzle | No |
| Included Suction Tube | Yes |
| Length | 57 7/8" |
| Material Grade | Grade 316 Stainless Steel |
| Max. Flow Rate | 7 GPM |
| Max. Fluid Temp. | 180°F |
| Max. Head | 300 ft. |
| Max. Head Pressure | 120 psi |
| Max. Liquid Temp. | 180°F |
| Max. Outlet Pressure | 120 psi |
| Max. Temp. | 180°F |
| Max. Viscosity | 100000 cPS |
| Metered | No |
| Min. Fluid Temp. | -20°F |
| Min. Temp. | -20°F |
| Motor Enclosure | Tefc |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Hp | 2 hp |
| Motor Speed | 3450 RPM |
| Motor Type | Electric AC |
| Nominal Voltage | 110/220V AC |
| Overall Length | 57 7/8" |
| Phase | 1 |
| Power Source | Electric |
| Pump Connection Type | Smooth Bore |
| Pump Package Type | Basic Pump With Discharge Hose |
| Runs Dry | No |
| Seal Material | Buna N, Carbon Ceramic |
| Self Priming | Yes |
| Series | HVDP Series |
| Suction Tube Grade | Grade 316 |
| Suction Tube Inside Dia. | 2" |
| Suction Tube Length | 40" |
| Suction Tube Material | Stainless Steel |
| Suction Tube Outside Dia. | 2" |
| Thermal Protection | No |
| Variable Speed | No |
| Voltage | 115/230V AC |
| Wetted Material | 316 Stainless Steel, Buna |
Shipping Info:
| Ship weight (kg) | 36 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Flow Rate | For Container Size | Power Source | Discharge Tube Outlet Outside Dia. | Max. Viscosity | For Container Type | Included Bung Adapter | Max. Head | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HVDP & M58H | 8.5 GPM | 55 gal. | Electric | 1 7/8" | 20000 cPS | Drum | No | 300 ft. | €11,401.54 | |
 |
ACTHD15ESS | 10 gal./stroke | 55 gal. | - | - | 5000 cPS | Drum | - | - | €2,490.50 | |
 |
ACT-17ESS | 20 gal./stroke | 55 gal. | - | - | 1000 cPS | Drum | - | - | €2,216.40 | |
 |
490SSTSP | 6 gal./stroke | 55 gal. | Hand Operated | - | 2000 cPS | - | - | 16 ft. | €401.83 | |
 |
THP-5-STGRND | 10 oz./stroke | 5 gal. | - | - | 2000 SUS | Drum | Yes | - | €330.42 | |
 |
THP-STGRND | 20 oz./stroke | 55 gal. | - | - | 2000 SUS | Drum | Yes | - | €309.09 | |
 |
HVDP & M66 | 7 GPM | 55 gal. | Air | 2" | - | Drum | No | 300 ft. | €9,859.21 |
