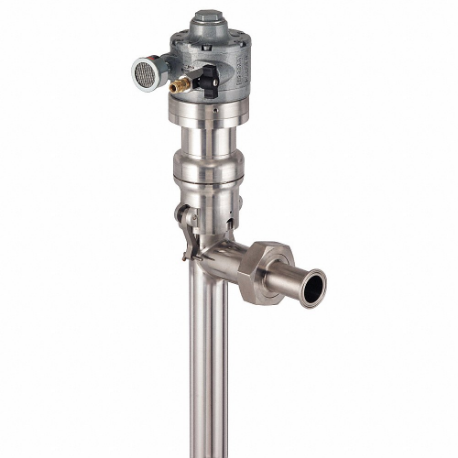

FINISH THOMPSON HVDP & M66 Air Operated Drum Pump, 55 Gal For Container Size, 7 Gpm
Get it by Thursday, Aug 27
5.00% off
€9,366.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Operated Drum Pump |
| Action Type | Piston |
| Air Outlet Size | 1/4" |
| Def Compatible | No |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | Tri Clamp |
| Discharge Tube Inside Dia. | 1 1/2" |
| Discharge Tube Outlet Inside Dia. | 1 1/2" |
| Discharge Tube Outlet Outside Dia. | 2" |
| Discharge Tube Outside Dia. | 2" |
| Duty Cycle | Continuous |
| Explosion Proof | Yes |
| Food Grade | No |
| For Container Size | 55 gal. |
| For Container Type | Drum |
| For Use With | Colorants., Food Ingredients, Pharmaceuticals |
| Housing Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Included Bung Adapter | No |
| Included Discharge Hose | No |
| Included Nozzle | No |
| Included Spout | No |
| Included Suction Tube | Yes |
| Length | 57 7/8" |
| Max. Air Pressure | 100 psi |
| Max. Flow Rate | 7 GPM |
| Max. Head | 300 ft. |
| Max. Head Pressure | 120 psi |
| Max. Liquid Temp. | 180°F |
| Max. Outlet Pressure | 130 psi |
| Metered | No |
| Min. Air Pressure | 100 psi |
| Motor Hp | 1 1/2 hp |
| Motor Speed | 3000 RPM |
| Noise Level | 90 dBA |
| Noise Level | 90 dB |
| Outlet Size | 1/4" |
| Power Source | Air |
| Pump Connection Inside Dia. | 2" |
| Pump Connection Outside Dia. | 2" |
| Runs Dry | No |
| Seal Material | Buna N, Carbon, Ceramic |
| Self Priming | Yes |
| Suction Tube Inside Dia. | 2" |
| Suction Tube Length | 40" |
| Suction Tube Outside Dia. | 2" |
| Thermal Protection | No |
| Variable Speed | Yes |
Shipping Info:
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Flow Rate | For Container Size | Power Source | Discharge Tube Outlet Outside Dia. | Max. Viscosity | For Container Type | Included Bung Adapter | Max. Head | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HVDP & M58H | 8.5 GPM | 55 gal. | Electric | 1 7/8" | 20000 cPS | Drum | No | 300 ft. | €11,401.54 | |
 |
ACTHD15ESS | 10 gal./stroke | 55 gal. | - | - | 5000 cPS | Drum | - | - | €2,490.50 | |
 |
ACT-17ESS | 20 gal./stroke | 55 gal. | - | - | 1000 cPS | Drum | - | - | €2,216.40 | |
 |
490SSTSP | 6 gal./stroke | 55 gal. | Hand Operated | - | 2000 cPS | - | - | 16 ft. | €401.83 | |
 |
THP-5-STGRND | 10 oz./stroke | 5 gal. | - | - | 2000 SUS | Drum | Yes | - | €330.42 | |
 |
THP-STGRND | 20 oz./stroke | 55 gal. | - | - | 2000 SUS | Drum | Yes | - | €309.09 | |
 |
HVDP & M62 | 7 GPM | 55 gal. | Electric | 1 7/8" | 100000 cPS | Drum | No | 300 ft. | €12,159.89 |
