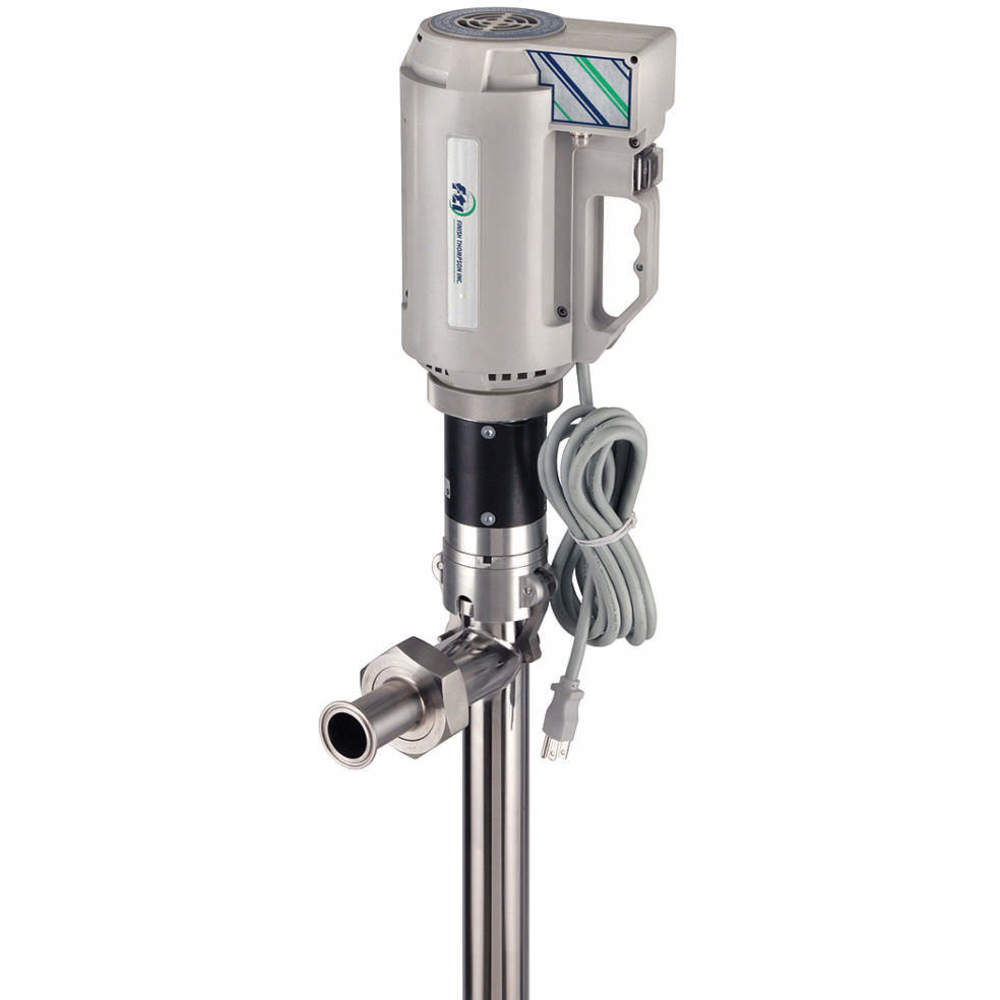

FINISH THOMPSON HVDP & M58H Electric Drum Pump 115v 60 Hz 1 Hp | AD3UBZ 40P662

FINISH THOMPSON HVDP & M58H Electric Drum Pump 115v 60 Hz 1 Hp

Item: AD3UBZModel: HVDP & M58HCross Ref: 40P662
Check Availability
In Stock

Get it by Thursday, Aug 27

€11,401.54
5.00% off
€10,831.46 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Operated Drum Pump
Action Type Piston
Adapter Material Stainless Steel
Adapter Type Bung
Application Food Ingredients, Pharmaceuticals, Colorants.
Bung Connection Dia. 2"
Bung Connection Size 2"
Compatible Chemicals Acetic Acid 20%, Antifreeze (Coolant), Automatic Transmission Fluid, Brake Fluid, Calcium Chloride, Citric Acid 50%, Deionized Water, Ethylene Glycol, Fresh Water, Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Trichlorethylene (50%)
Cord Length 12 ft.
Def Compatible No
Diesel Exhaust Fluid Compatible No
Discharge Connection Type Tri Clamp
Discharge Tube Inside Dia. 1 1/2"
Discharge Tube Outlet Id Size 1-1/2"
Discharge Tube Outlet Inside Dia. 1 1/2"
Discharge Tube Outlet Outside Dia. 1 7/8"
Display Qty 1
Duty Cycle Continuous
Explosion Proof No
Flow Rate 3.5-8.5 GPM
Food Grade No
For Container Size 55 gal.
For Container Type Drum
For Media Type Acetic Acid, Antifreeze, Automatic Transmission Fluid, Brake Fluid, Calcium Chloride, Citric Acid, Ethylene Glycol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Trichlorethylene, Water
For Use On 30, 55 Gal. Drums
For Use With Colorants., Food Ingredients, Pharmaceuticals
Frequency 60 Hz
Gasket Material Buna N
Grade Grade 316
Hose Length 60"
Hose Material PVC
Hose Outside Dia. 1 7/8"
Hose Tube Material PVC
Housing Grade Grade 316
Housing Material Stainless Steel
Included Motor And Pump
Included Bung Adapter No
Included Discharge Hose Yes
Included Nozzle No
Included Suction Tube Yes
Inlet Size 2"
Length 57 7/8"
Material Grade Grade 316 Stainless Steel
Max. Flow Rate 8.5 GPM
Max. Flow Rate For Oil 8.5 GPM
Max. Flow Rate For Water 8.5 GPM
Max. Fluid Temp. 180°F
Max. Gpm For Oil 8.5 @ 100 CPS
Max. Gpm For Water 8.5
Max. Head 300 ft.
Max. Head Pressure 120 psi
Max. Liquid Temp. 180°F
Max. Outlet Pressure 120 psi
Max. Pressure 130 psi
Max. Temp. 180°F
Max. Viscosity 20000 cPS
Media Type Acetic Acid, Antifreeze, Automatic Transmission Fluid, Brake Fluid, Calcium Chloride, Citric Acid, Ethylene Glycol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Trichlorethylene, Water
Metered No
Min. Fluid Temp. -20°F
Min. Temp. -20°F
Motor Enclosure Tefc
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Hp 1 hp
Motor Speed 10000 RPM
Noise Level 81 dBA
Noise Level 81 dB
Nominal Voltage 110V AC
Outlet Type Tri Clamp
Overall Length 57 7/8"
Ph 6 pH to 10 pH
Phase 1
Plug Type NEMA 5-15
Power Source Electric
Pump Connection Type Smooth Bore
Pump Package Type Basic Pump With Discharge Hose
Runs Dry No
Seal Material Buna N, Carbon Ceramic
Self Priming Yes
Series HVDP Series
Suction Tube Grade Grade 316
Suction Tube Inside Dia. 2"
Suction Tube Length 40"
Suction Tube Material Stainless Steel
Suction Tube Outlet O.d. Size 2"
Suction Tube Outside Dia. 2"
Thermal Protection No
Variable Speed Yes
Wetted Material 316 Stainless Steel, Buna , Stainless Steel, Buna
Wetted Material Grade Grade 316

Shipping Info:

Ship weight (kg) 17.1
Ship height (cm)22.86
Ship length (cm)149.86
Ship width (cm)27.94
HS code8413810040
Country of OriginUS

Product Details:

    • DEF Compatible (No)
    • Special Features: Progressive cavity design, Up to 100,000 cP, 316 stainless steel tube and shaft, Buna-N, Viton(R), or PTFE stator materials, Mechanical seal, Unique camlock feature easily disengages tube for cleaning, HR versions for use with M58H or M59H universal motor
