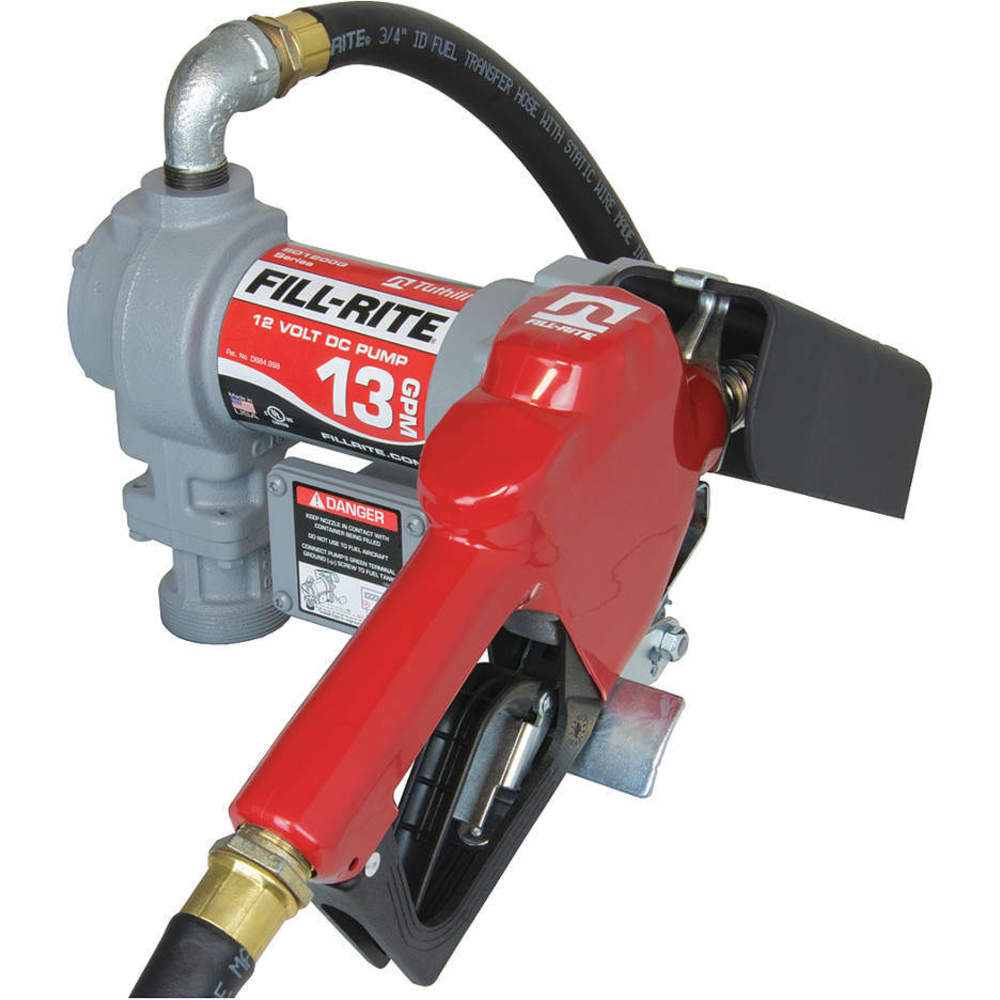

FILLRITE SD1202G Fuel Transfer Pump 1/4 Hp 12vdc 13 Gpm
Get it by Friday, Dec 19
10.00% off
€645.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuel Transfer Pump |
| Bearing Type | Ball |
| Bypass Valve | Internal |
| Compatible Fluids | Diesel, Gasoline, Kerosene, E15, Biodiesel up to B20 |
| Discharge Connection Type | NPT |
| Discharge Hose Size | 3/4" x 10 ft. |
| Duty Cycle | 30 min. On/30 min. Off |
| Explosion Proof | Yes |
| For Container Size | 275 gal. |
| For Media Type | Biodiesel, Diesel, E15, Gasoline, Kerosene |
| Full Load Amps | 20A |
| Hose Dia. | 3/4" |
| Housing Material | Cast Iron |
| Hp | 1/4 hp |
| Includes | Battery, Cable, Discharge Hose, Nozzle |
| Includes Suction Tube | Yes |
| Inlet Size | 1" |
| Max. Flow Rate | 13 GPM |
| Max. Head | 37 ft. |
| Max. Head Pressure | 16 psi |
| Max. Outlet Pressure | 16 psi |
| Max. Viscosity | 50 SUS |
| Media Type | Biodiesel, Diesel, E15, Gasoline, Kerosene |
| Meter | Not Included |
| Metered | No |
| Motor Enclosure Design | Explosion Proof |
| Motor Hp | 1/4 hp |
| Motor Speed | 2600 RPM |
| Motor Type | Permanent Magnet |
| Mount Type | Bung |
| Nozzle Material | Aluminum |
| Nozzle Type | Manual Gasoline |
| Outlet Size | 3/4" |
| Overall Height | 9" |
| Overall Length | 9" |
| Overall Width | 7 1/2" |
| Power Cord Length | 15 ft. |
| Pump Connection Type | NPT |
| Pump Design | Rotary Vane |
| Pump Kit Type | Pump With Hose And Nozzle |
| Rated Voltage | 12V DC |
| Seal Material | Carbon Ceramic |
| Seal Type | Mechanical |
| Self Priming | Yes |
| Self-priming | Yes |
Shipping Info:
| Ship weight (kg) | 14.06 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 44.77 |
| Ship width (cm) | 44.77 |
| HS code | 8413190000 |
| Country of Origin | US |
