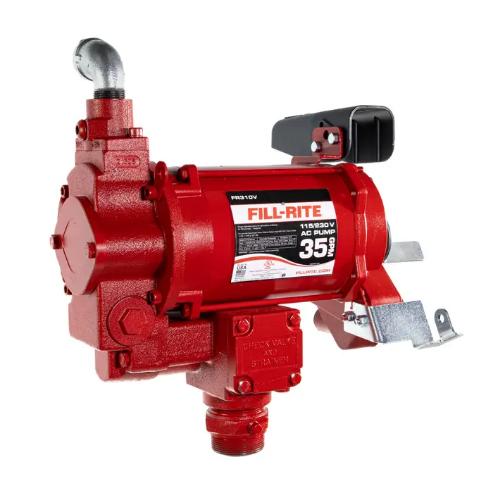

FILLRITE FR310VN Ac Transfer Pump Diesel Transfer 3/4
Get it by Thursday, Dec 25
10.00% off
€1,848.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuel Transfer Pump |
| Bearing Type | Sealed |
| Bypass Valve | Internal |
| Compatible Fluids | Diesel, Kerosene, E15, Biodiesel up to B20 |
| Discharge Connection Type | NPT |
| Discharge Hose Size | No Hose |
| Duty Cycle | 30 min. On/30 min. Off |
| Explosion Proof | Yes |
| For Container Size | 10000 gal. |
| For Media Type | B20, Diesel, E15, Gasoline, Kerosene |
| Full Load Amps | 11.4A |
| Hose Dia. | 1" |
| Housing Material | Cast Iron |
| Hp | 3/4 hp |
| Includes | Installation Components |
| Includes Suction Tube | No |
| Inlet Size | 1 1/4" |
| Max. Flow Rate | 35 GPM |
| Max. Head | 60 ft. |
| Max. Head Pressure | 26 psi |
| Max. Outlet Pressure | 26 psi |
| Max. Viscosity | 50 SUS |
| Media Type | B20, Diesel, E15, Gasoline, Kerosene |
| Metered | No |
| Motor Enclosure Design | Explosion Proof |
| Motor Hp | 3/4 hp |
| Motor Speed | 1725 RPM |
| Motor Type | Permanent Magnet |
| Mount Type | Bung |
| Nozzle Type | Not Included |
| Outlet Size | 1" |
| Overall Height | 15 3/4" |
| Overall Length | 16" |
| Overall Width | 13 1/4" |
| Power Source | Electric |
| Pump Connection Type | NPT |
| Pump Design | Rotary Vane |
| Pump Kit Type | Pump Only |
| Rated Voltage | 230V AC |
| Seal Material | Carbon |
| Seal Type | Mechanical |
| Self Priming | Yes |
| Self-priming | Yes |
| Series | 300 Series |
| Suction Tube Length | No |
Shipping Info:
| Ship weight (kg) | 32.85 |
| Ship height (cm) | 31.12 |
| Ship length (cm) | 50.17 |
| Ship width (cm) | 56.67 |
| HS code | 8413190000 |
| Country of Origin | US |
Product Details:
- Transfer Pump Application (Farming, Construction, Agriculture)
Product Variants
| Product | Model | Rated Voltage | Discharge Hose Size | Nozzle Type | Seal Material | Overall Width | Overall Length | Overall Height | Bypass Valve | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FR319VB | 230V AC | 1" x 18 ft. | Automatic Diesel | Carbon Ceramic | 14 1/4" | 18 5/8" | 14 3/8" | Internal | €2,848.87 | |
 |

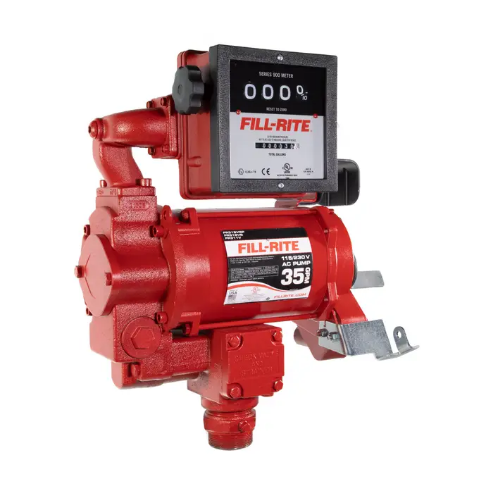

FR311VN | 115/230V AC | No Hose | Not Included | Carbon | 17" | 15" | 19 1/4" | Internal | €2,515.58 | |
 |
FR311VB | 230V AC | 1" x 18 ft. | Automatic Diesel | Carbon | 17" | 15" | 19 1/4" | Internal | €2,838.28 | |
 |
FR310VB | 230V AC | 1" x 18 ft. | Automatic Diesel | Carbon | 13 1/4" | 16" | 15 3/4" | Internal | €2,472.18 | |
 |
FR311VLB | 230V AC | 1" x 18 ft. | Automatic Diesel | Carbon | 16" | 12" | 18" | Yes | €2,893.23 | |
 |
FR313V | 230V AC | Not Included | Not Included | Carbon | 16" | 12" | 16 1/2" | Yes | €2,208.57 |
