FILLRITE 901C Liquid Mechanical Flowmeter, 1 Inch FNPT Connection
Item: AH9KGRModel: 901CCross Ref: 3XNL1
7 In Stock
Ships within 2 days via
10.00% off
€606.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mechanical Flowmeter |
| Accuracy | -2% to +2% |
| Compatible Flow Material | Diesel, Gasoline, Kerosene, Petroleum Fluids, Solvents |
| Connection Size | 1" |
| Connection Type | FNPT |
| Display Type | Mechanical |
| Fits Pipe Size | 1" |
| Flow Range | 6-40 GPM |
| Flow Rate | 6-40 GPM |
| Flow Rate Range | 6-40 GPM |
| Flowmeter Type | Paddle Wheel |
| Fluid Connection | 1" FNPT |
| Fluid Temp. | -40°F to +140°F |
| Fluid Temp. Range | -40 Degrees to 140 Degrees F |
| For Pipe Size | 1" |
| Gpm Max. | 40 GPM |
| Gpm Max. | 40 |
| Housing Material | Aluminum |
| Includes Flow Rate Adjustment Knob | Yes |
| Includes Pressure Gauge | No |
| Includes Totalizer | Yes |
| Manufacturer Warranty Length | 2 yrs. |
| Max. Flow Rate | 40 GPM |
| Max. Media Temperature | 140°F |
| Max. Operating Pressure | 50 psi |
| Max. Pressure | 50 psi |
| Max. Temp. | 150°F |
| Max. Viscosity | 50 SUS |
| Media Temp. Range | -40°F to +140°F |
| Media Type | Diesel, Gasoline, Kerosene, Petroleum Fluids, Solvents |
| Min. Flow Rate | 6 GPM |
| Min. Media Temp. | -40°F |
| Mounting Location | Inline |
| Mounting Orientation | Universal |
| O-ring Material | Buna N |
| Output Type | Standard Frequency Pulse |
| Overall Height | 5 1/2" |
| Overall Length | 5 1/2" |
| Overall Width | 6.3" |
| Product Type | 4-Digit Mechanical Fuel Transfer Meter |
| Pulse Rate | 10 pulses/gal. |
| Resetable Cumulative Totalizer | 1000 gal. |
| Rotor Material | Polyphenylene Sulfide |
| Seal Material | Buna N, Viton |
| Series | 900 Meter Series |
| Shaft Material | Stainless Steel |
| Unit Of Measure | Gal. |
| Wetted Material | Aluminum, Buna N, Nickel, PTFE, Ryton, Stainless Steel, Viton |
Shipping Info:
| Ship weight (kg) | 3.24 |
| Ship height (cm) | 18.75 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 18.42 |
| Country of Origin | US |
Product Details:
- Fill-Rite 901C flow meter designed for metering viscous fluids in transfer pumps with flow rates of 6 - 40 GPM
- Features nickel-plated aluminium construction for durability, 4-digit resettable display with easy field calibration and inlet / outlet flow ports in 90 degree increments for easy installation in both vertical & horizontal orientations
- Capability to handle diesel, gasoline, kerosene, mineral spirits, Stoddard solvents and heptane
- Meets UL / cUL standards
Product Variants
| Product | Model | Connection Size | Overall Length | Fits Pipe Size | Gpm Max. | Connection Type | Min. Flow Rate | Max. Flow Rate | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

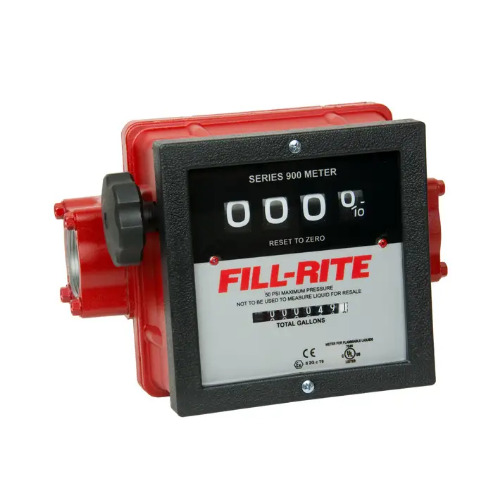

901C1.5 | 1 1/2" | 5 1/2" | 1 1/2" | 40 GPM | FNPT | 6 GPM | 40 GPM | 50 psi | €665.86 | |
 |

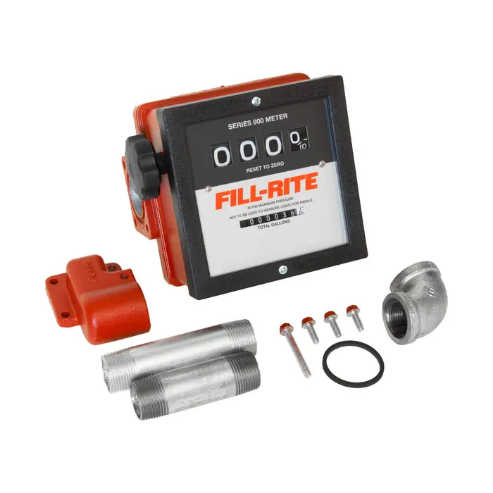

901CMK4200 | 1" | 6.9" | 1" | 20 GPM | FNPT | 6 GPM | 40 GPM | 50 psi | €674.08 |
