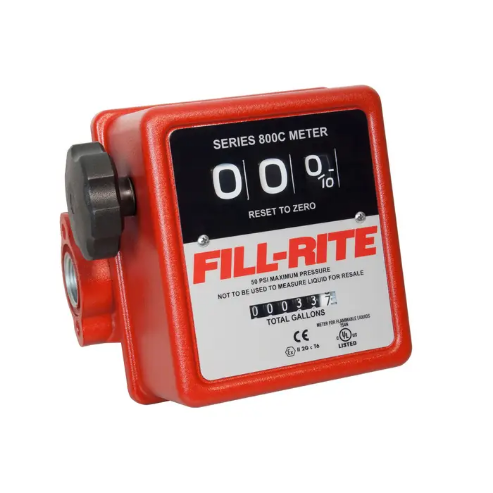

FILLRITE 807C Liquid Mechanical Flowmeter, 3/4 Inch FNPT Connection
Item: AH2BQFModel: 807CCross Ref: 24KJ09
7 In Stock
Ships within 2 days via
10.00% off
€424.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flowmeter |
| Accuracy | -1% to +1% |
| Compatible Flow Material | Diesel, Gasoline, Kerosene, Petroleum Fluids, Solvents |
| Connection Size | 3/4" |
| Connection Type | FNPT |
| Display Type | Mechanical |
| Fits Pipe Size | 3/4" |
| Flow Material | Diesel, Petrol, Kerosene Fuels |
| Flow Range | 5-20 GPM |
| Flow Rate | 5-20 GPM |
| Flow Rate Range | 5-20 GPM |
| Flowmeter Type | Paddle Wheel |
| Fluid Connection | 3/4" FNPT |
| Fluid Temp. | -15°F to +150°F |
| Gpm Max. | 40 GPM |
| Gpm Max. | 40 |
| Housing Material | Aluminum |
| Includes Flow Rate Adjustment Knob | Yes |
| Includes Pressure Gauge | No |
| Includes Totalizer | Yes |
| Manufacturer Warranty Length | 2 yrs. |
| Max. Flow Rate | 20 GPM |
| Max. Media Temperature | 140°F |
| Max. Operating Pressure | 50 psi |
| Max. Pressure | 50 psi |
| Max. Temp. | 150°F |
| Max. Viscosity | 50 SUS |
| Media Temp. Range | -40°F to +140°F |
| Media Type | Diesel, Gasoline, Kerosene, Petroleum Fluids, Solvents |
| Min. Flow Rate | 5 GPM |
| Min. Media Temp. | -40°F |
| Mounting Location | Inline |
| Mounting Orientation | Universal |
| O-ring Material | Buna N |
| Output Type | Standard Frequency Pulse |
| Overall Height | 6" |
| Overall Length | 4.9" |
| Overall Width | 6" |
| Product Type | Mechanical Fuel Transfer Meter |
| Pulse Rate | 10 pulses/gal. |
| Resetable Cumulative Totalizer | 100 gal. |
| Rotor Material | Polyphenylene Sulfide |
| Seal Material | Buna N |
| Series | 800C Meter Series |
| Shaft Material | Stainless Steel |
| Unit Of Measure | Gal. |
| Wetted Material | Aluminum, Buna N, Nickel, PTFE, Ryton, Stainless Steel, Viton |
Shipping Info:
| Ship weight (kg) | 2.37 |
| Ship height (cm) | 18.75 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 18.42 |
| Country of Origin | US |
Product Details:
- Fill-Rite 807C flow meter suitable for measuring liquid flow rates with an accuracy of +/- 1% for fuel dispensing pumps & industrial flow measurement applications
- Nickel plated aluminium construction for durability, 3-digit display, 90 degree rotations for easy installation in both vertical & horizontal orientations and easy field calibration settings
- Features Viton and Buna-N sealants for excellent sealing against moisture to protect internal components in harsh conditions
- Compatibility with fluids including gasoline, diesel, B20, E15 and kerosene
- UL-listed, CE-marked, Ex-certified and ATEX-compliant
Product Variants
| Product | Model | Connection Size | Min. Flow Rate | Max. Flow Rate | Overall Length | Flowmeter Type | Seal Material | Unit Of Measure | Rotor Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
807CN1 | 1" | 5 GPM | 20 GPM | 5" | Paddle Wheel | Viton | Gal. | Polyphenylene Sulfide | €617.76 | |
 |
807CMK | 3/4" | 5 GPM | 20 GPM | 4.9" | Paddle Wheel | Buna N, Viton | Gal. | Polyphenylene Sulfide | €502.76 | |
 |
807C1 | 1" | 5 GPM | 20 GPM | 4.9" | Paddle Wheel | Buna N, Viton | Gal. | Polyphenylene Sulfide | €443.62 | |
 |
807-CL | 3/4" | 19 LPM | 76 LPM | 4 4/5" | Paddle Wheel | Buna N | Gal. | Polyphenylene Sulfide | €481.90 | |
 |
807CLMK | - | - | - | - | - | - | - | - | €620.99 | |
 |
807CNL1X418 | 1" | 19 LPM | 76 LPM | 10" | Paddlewheel | Buna N | Liters | PPS | €683.01 |
