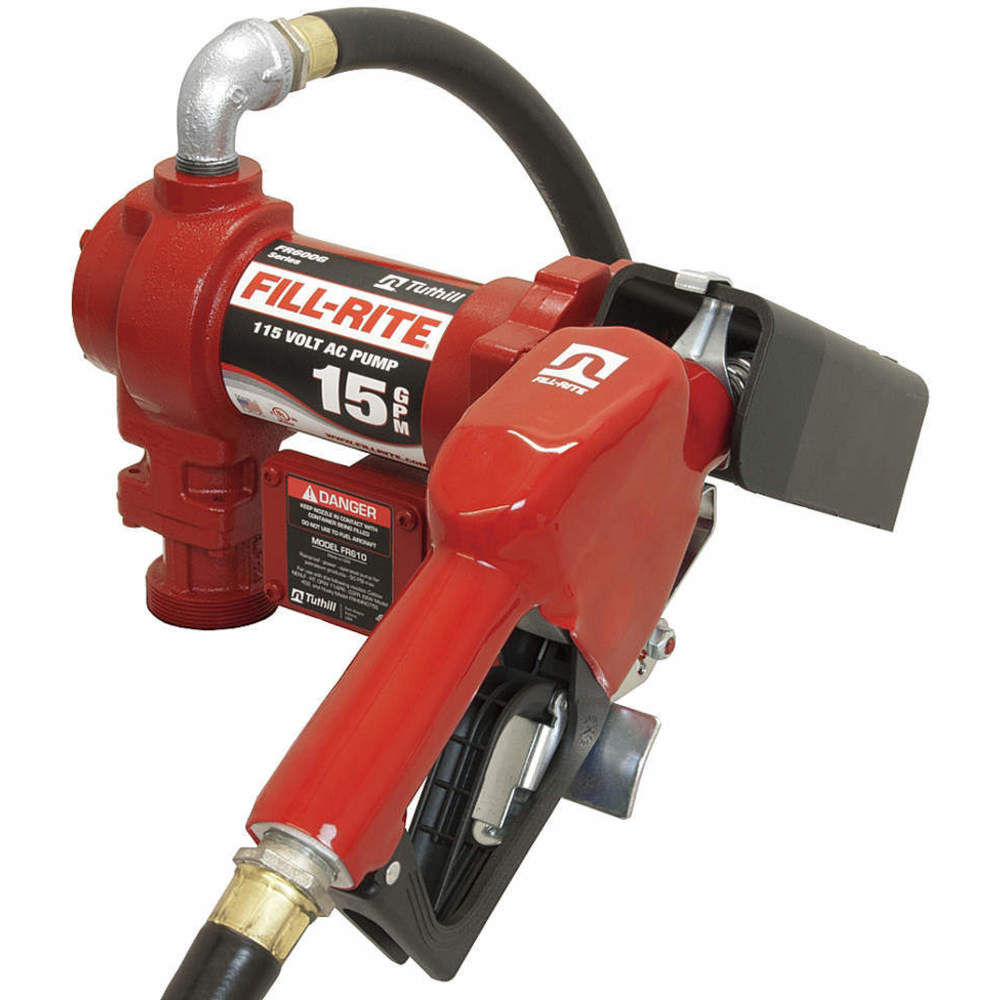

FILLRITE FR610GA Fuel Transfer Pump 1/4 Hp 115vac 15 Gpm
Get it by Tuesday, Dec 23
10.00% off
€822.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuel Transfer Pump |
| Bearing Type | Ball Without Lubrication |
| Bypass Valve | Internal |
| Compatible Fluids | Diesel, Gasoline, Kerosene, E15, Biodiesel up to B20 |
| Discharge Connection Type | NPT |
| Discharge Hose Size | 3/4" x 12 ft. |
| Duty Cycle | 30 min. On/30 min. Off |
| Explosion Proof | Yes |
| Filter | Particulate Filter |
| For Container Size | 500 gal. |
| For Media Type | Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits |
| Full Load Amps | 2.5A |
| Hose Dia. | 3/4" |
| Housing Material | Cast Iron |
| Hp | 1/6 hp |
| Includes | Cable, Discharge Hose, Nozzle |
| Includes Suction Tube | Yes |
| Inlet Size | 1" |
| Max. Flow Rate | 15 GPM |
| Max. Head | 37 ft. |
| Max. Head Pressure | 16 psi |
| Max. Outlet Pressure | 16 psi |
| Max. Viscosity | 50 SUS |
| Media Type | Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits |
| Metered | No |
| Motor Enclosure Design | Explosion Proof |
| Motor Hp | 1/6 hp |
| Motor Speed | 2000 RPM |
| Motor Type | Permanent Magnet |
| Mount Type | Bung |
| Nozzle Material | Aluminum |
| Nozzle Type | Automatic Diesel |
| Outlet Size | 3/4" |
| Overall Height | 15 3/4" |
| Overall Length | 16" |
| Overall Width | 13 1/4" |
| Power Source | Electric |
| Pump Connection Type | NPT |
| Pump Design | Rotary Vane |
| Pump Kit Type | Pump With Hose, Nozzle & Particulate Filter |
| Rated Voltage | 115V AC |
| Runs Dry | Yes |
| Seal Material | Carbon Ceramic |
| Seal Type | Mechanical |
| Self Priming | Yes |
| Self-priming | Yes |
| Suction Tube Length | 34" |
| Thermal Protection | Yes |
| Wetted Material | Buna N, Ceramic, Cork, Stainless Steel, Steel, Thermoset Plastic, Viton |
| Wetted Materials | Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton |
Shipping Info:
| Ship weight (kg) | 14.21 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 44.77 |
| Ship width (cm) | 44.77 |
| HS code | 8413600020 |
| Country of Origin | US |
Product Details:
- Transfer Pump Application (Construction, Agriculture)
