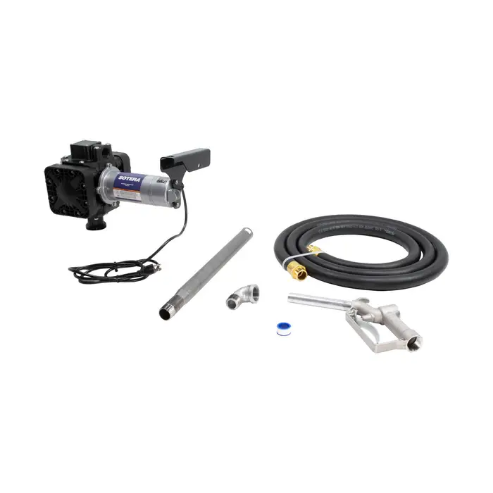

FILLRITE FR410B Pump Diaphragm 1/4 Hp
Get it by Friday, Feb 13
10.00% off
€1,542.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Diaphragm Pump |
| Application | For Transferring Fluids Such As Ethylene Glycol, Diesel Fuel, Grease, Hydraulic Oil, Kerosene, Motor Oil, Water |
| Compatible Chemicals | Hydraulic Oil, Light Oil, Lubricating Fluid, Medium Viscosity Liquids, Oil |
| Cord Length | 12 ft. |
| Discharge Connection Type | NPT |
| Display Qty | 1 |
| Duty Cycle | 30 min. On/30 min. Off |
| For Container Size | 330 gal. |
| For Media Type | Lubricating Fluid, Medium Viscosity Liquids, Oil |
| Full Load Amps | 20A |
| Gpm Max. | 13 |
| Hose Length | 12 ft. |
| Hose Material | Nitrile |
| Hose Outside Dia. | 1" |
| Hose Tube Material | Nitrile |
| Hp | 1/4 hp |
| Includes | Cable, Discharge Hose, Hose, Manual Nozzle, Nozzle, Nozzle Boot, Telescoping Steel Suction Tube |
| Includes Discharge Hose | Yes |
| Includes Nozzle | Yes |
| Includes Suction Tube | Yes |
| Max. Flow Rate | 13 GPM |
| Max. Fluid Temp. | 130°F |
| Max. Head Pressure | 15 psi |
| Max. Outlet Pressure | 15 psi |
| Max. Viscosity | 30 SUS |
| Media Type | Lubricating Fluid, Medium Viscosity Liquids, Oil |
| Motor Hp | 1/4 hp |
| Motor Speed | 2600 RPM |
| Motor Type | Permanent Magnet |
| Mounting Type | Bung |
| Nominal Voltage | 12V DC |
| Nozzle Material | Aluminum |
| Nozzle Operation | Manual |
| Power Source | Electric |
| Pump Connection Type | NPT |
| Rated Voltage | 12V DC |
| Self Priming | Yes |
| Self-priming | Yes |
| Suction Tube Length | Telescoping 22 to 40 In. |
| Type | Diaphragm |
Shipping Info:
| Ship weight (kg) | 16.2 |
| Ship height (cm) | 41.91 |
| Ship length (cm) | 41.28 |
| Ship width (cm) | 51.44 |
| HS code | 8413500050 |
| Country of Origin | US |
Product Details:
- Nozzle Shutoff (Manual)
Product Variants
| Product | Model | Max. Flow Rate | Diaphragm Material | Housing Material | Valve Material | Check Seat Material | Max. Solid Dia. | Max. Media Temp. | Pump Assembly Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PF20A-AAS-SAA-B | 178 GPM | Santoprene | Aluminum | Santoprene | Stainless Steel | 2" | 225°F | Bolt | €6,374.81 | |
 |
E5AP2R229C | 12 GPM | Buna N | Aluminum | Buna N | Aluminum | 0.06" | 180°F | Bolt | €2,311.86 | |
|
E5AP6X669C | 12 GPM | Santoprene | Aluminum | Santoprene | Aluminum | 0.06" | 300°F | Bolt | €2,287.18 | |
|
E5AP5T559C | 12 GPM | PTFE | Aluminum | PTFE | Aluminum | 0.06" | 220°F | Bolt | €2,492.97 | |
 |
E5SP2R229C | 12 GPM | Buna N | Stainless Steel | Buna N | Stainless Steel | 0.06" | 180°F | Bolt | €4,213.29 | |
|
E5SP6X669C | 12 GPM | Santoprene | Stainless Steel | Santoprene | Santoprene | 0.06" | 300°F | - | €4,121.41 | |
|
E5SP5T559C | 12 GPM | PTFE | Stainless Steel | PTFE | Stainless Steel | 0.06" | 220°F | Bolt | €4,710.19 |
