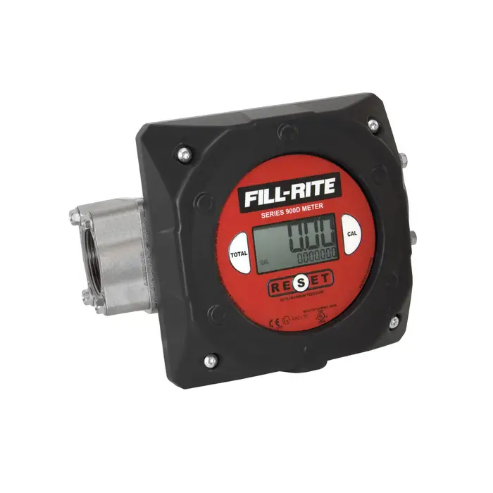

FILLRITE 900CD Digital Flow Meter, 50 PSI, NPT Threads, 6 - 40 GPM
Item: AC4RXQModel: 900CDCross Ref: 30J078
7 In Stock
Ships within 2 days via
10.00% off
€770.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flowmeter |
| Accuracy | -1.25% to +1.25% |
| Application | B20, Diesel, E15, Gasoline, Kerosene |
| Chamber Material | Aluminum |
| Compatible Flow Material | B20, Diesel, Gasoline, Kerosene, Petroleum Fluids, Solvents |
| Connection Size | 1" |
| Connection Type | FNPT |
| Display | Digital Register With Large Easy-To-Read Numbers |
| Display Type | Digital |
| Fits Pipe Size | 1" |
| Fitting | 1" NPT |
| Flow Material | Diesel Fuel, Gasoline, Kerosene, Light Oil, Stoddard Fluids |
| Flow Material | Gasoline, Diesel Fuel, Light oil, Kerosene, Stoddard Fluids |
| Flow Range | 6-40 GPM |
| Flow Rate | 6-40 GPM |
| Flow Rate Range | 6-40 GPM |
| Flowmeter Type | Paddle Wheel |
| Fluid Connection | 1" FNPT |
| Fluid Temp. | -40°F to +140°F |
| Gpm Max. | 40 GPM |
| Gpm Max. | 40 |
| Housing Material | Aluminum |
| Includes Flow Rate Adjustment Knob | Yes |
| Includes Pressure Gauge | No |
| Includes Totalizer | Yes |
| Insert | Nickel Plated Aluminum |
| Insert Material | Aluminum |
| Manufacturer Warranty Length | 2 yrs. |
| Master Totalizer | Yes |
| Max. Flow Rate | 40 GPM |
| Max. Media Temperature | 140°F |
| Max. Operating Pressure | 50 psi |
| Max. Pressure | 50 psi |
| Max. Temp. | 140°F |
| Max. Viscosity | 50 SUS |
| Media Temp. Range | -40°F to +140°F |
| Media Type | B20, Diesel, Gasoline, Kerosene, Petroleum Fluids, Solvents |
| Min. Flow Rate | 6 GPM |
| Min. Media Temp. | -40°F |
| Mounting Location | Inline |
| Mounting Orientation | Universal |
| O-ring | Buna/Viton |
| O-ring Material | Buna N |
| Output Type | Standard Frequency Pulse |
| Overall Height | 8" |
| Overall Length | 4.3" |
| Overall Width | 8" |
| Product Type | Digital Fuel Transfer Meter |
| Pulse Rate | 10 pulses/gal. |
| Resetable Cumulative Totalizer | 99999 gal. |
| Rotor Material | Polyphenylene Sulfide |
| Seal Material | Buna N, Viton |
| Series | 900 Series Digital Meters |
| Shaft Material | Stainless Steel |
| Standards | Atex, Culus Listed |
| Temp. | 140°F |
| Thread | NPT |
| Type | Nutating Disk |
| Unit Of Measure | Gal., L |
| Warranty | 2 yrs. |
| Wetted Material | Aluminum, Buna N, Nickel, PTFE, Ryton, Stainless Steel, Viton |
Shipping Info:
| Ship weight (kg) | 3.97 |
| Ship height (cm) | 13.03 |
| Ship length (cm) | 30.18 |
| Ship width (cm) | 25.4 |
| HS code | 9026104000 |
| Country of Origin | US |
Product Details:
- Fill-Rite 900CD positive displacement flowmeter to monitor flow rates of industrial fuels and viscous fluids in boiler feed, additive dispensing and condensate return applications
- Nickel-plated aluminium housing provides extremely rugged and long-term performance
- Features an electronic head with 90 degree rotation for ease of viewing and 3/4 inch LCD readout (four digit) with calibrations settings in gallons, pints, quarts, ounces & liters
- 7-digit resettable and non-resettable totaliser with an accuracy of +/-1.25%
- Compatible with gasoline, biodiesel, kerosene, diesel, E15, heptane and standard solvents
- Meets UL / cUL standards
Product Variants
| Product | Model | Connection Size | Connection Type | Overall Length | Overall Width | Overall Height | Flowmeter Type | Seal Material | Unit Of Measure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
900CD1.5 | 1 1/2" | FNPT | 4 1/2" | 8" | 8" | Paddle Wheel | Buna N, Viton | Gal., L | €822.64 | |
 |
900CDBSPT | 1" | BSPT | 8" | 8" | 8" | Paddle Wheel | Buna N, Viton | Gal., L | €811.87 | |
|
900CD1.5BSPT | 1 1/2" | BSPT | 8" | 8" | 8" | Paddle Wheel | Buna N, Viton | Gal., L | €819.88 | |
 |
900CDP1.5 | 1 1/2" | FNPT | 4" | 10" | 7 1/2" | Paddlewheel | Buna N | Gallons, Liters | €1,604.86 | |
 |
900CDPX1.5 | 1 1/2" | FNPT | 5" | 7 1/2" | 6 1/2" | Paddlewheel | Buna N | Gallons, Liters | €996.15 | |
 |
900CDP | 1" | FNPT | 4" | 10" | 7 1/2" | Paddlewheel | Buna N | Gallons, Liters | €1,604.86 | |
 |
900CDPX | 1" | FNPT | 4" | 7 1/2" | 6 1/2" | Paddlewheel | Buna N | Gallons, Liters | €1,005.18 |
