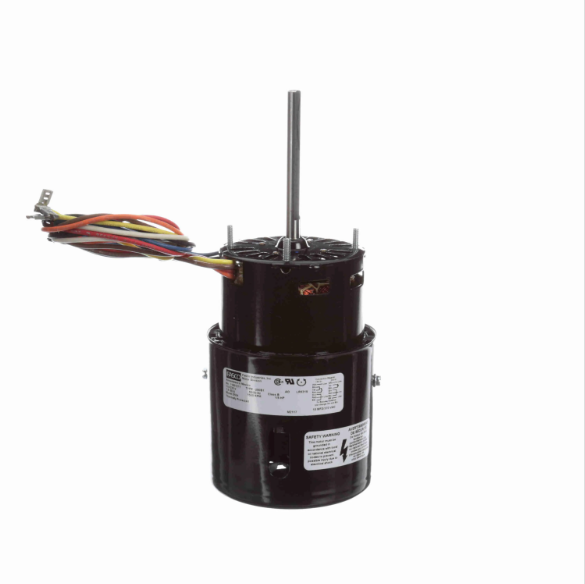

FASCO D504 Motor1/8Hp 115/230V 1500Rpm Motor
Item: CP4XNBModel: D504Cross Ref: 241Y24
7 In Stock
Ships within 2 days via
10.00% off
€561.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motor |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 1.6/0.08A |
| Capacitor Required | Included |
| Ce | N |
| Csa | Y |
| Current | 1.6/0.08A |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Electrical Type | Permanent Split Capacitor |
| Enclosure | Open Air Over |
| Frame | 3.3 |
| Frame Length | 4.45" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Includes Capacitor | No |
| Insulation Class | Class B |
| Length | 9.25" |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | OAO |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Automatic |
| Mounting | Extended Studs |
| Mounting Type | Extended Studs |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/8 hp |
| Output Kw | 0.10 kW |
| Overall Length | 9.25" |
| Permanent Split Capacitor Required | 10 µf, 370V |
| Phase | 1 |
| Poles | 4 |
| Rotation | Reversible |
| Rpm | 1550 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.313" |
| Shaft Diameter | 0.313" |
| Shaft Extension | 3.56" |
| Shaft Extension Size | 3.56" |
| Shaft Type | Flat |
| Speed | 1550 RPM |
| Starting Method | Across The Line |
| Stud Size | 8 |
| Ul | Recognized |
| Voltage | 115/230V |
Shipping Info:
| Ship weight (kg) | 2.97 |
| Ship height (cm) | 11.13 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 13.67 |
| Country of Origin | MX |
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Phase | Full Load Amps | Nameplate Rpm | Hp | Mounting Type | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
H845 | Dripproof | 200-230/460V AC | 3 | 4.3/9-8.6A | 3450 RPM | 3 hp | Cushion Base | 1.15 | €922.36 | |
 |
BK3074 | - | - | - | - | - | - | - | - | €736.91 | |
 |
RB3154AV1 | Open Dripproof | 208-230/460V AC | 3 | 4.6/2.3A | - | 1 1/2 hp | Resilient Base | 1.15 | €819.92 | |
 |
H852L | Open Dripproof | 200-230/460V AC | 3 | 2/3.7-4A | - | - | Resilient Base | 1.15 | €696.41 | |
 |
RB3204AV1 | Open Dripproof | 208-230/460V AC | 3 | 5.8/2.9A | 1725 RPM | 2 hp | Resilient Base | 1.15 | €822.75 | |
 |
OB3204V1 | - | - | - | - | - | - | - | - | €697.80 | |
 |
H847 | Dripproof | 208-230/460V AC | 3 | 6.6/13.4-13.2A | 3450 RPM | 5 hp | Rigid Base | 1.15 | €1,109.87 |
