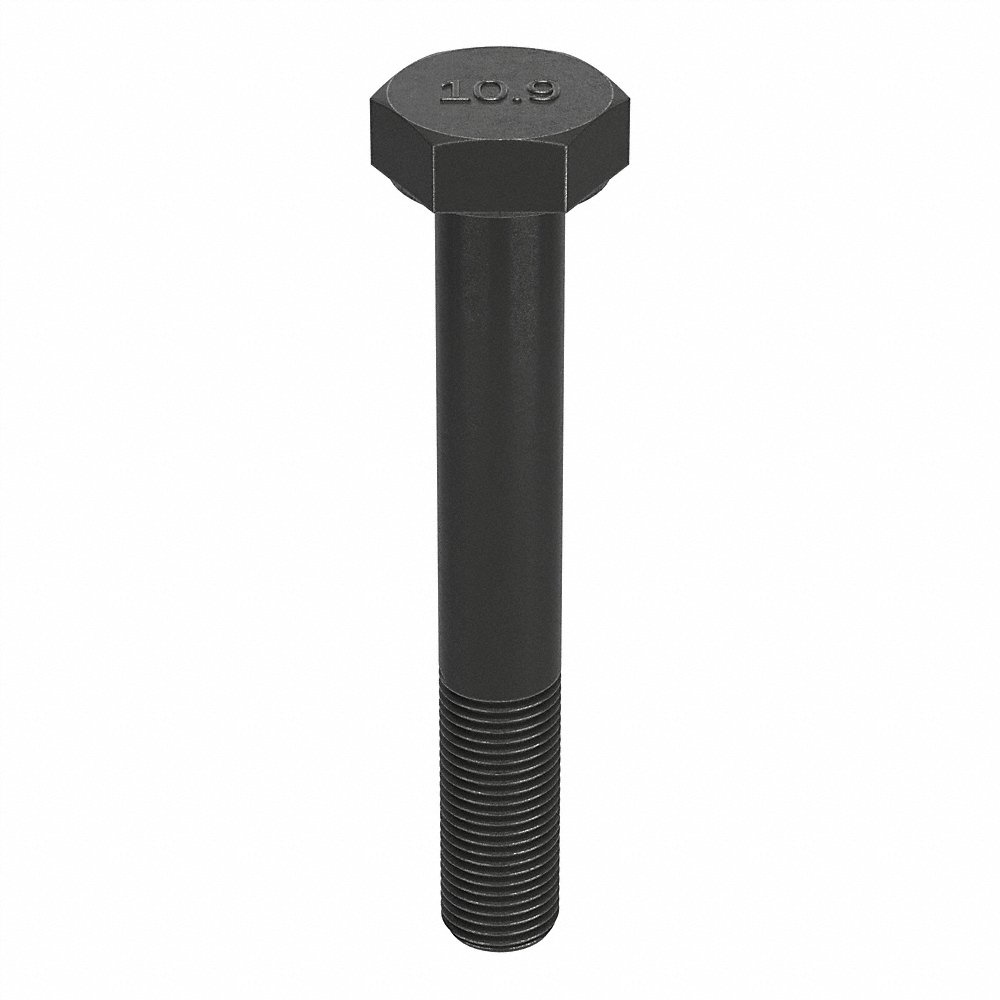

FABORY M04161.100.0090 Hex Head Cap Screw, M10x1 Thread Size, Steel, 90 mm Lg., 6.4 mm Head Ht., Fine
Item: CG8DKNModel: M04161.100.0090Cross Ref: 38CU84
7 In Stock
Ships within 2 days via
5.00% off
€155.91 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Class 10.9 |
| Drive | Hex |
| Fastener Length | 90 mm |
| Finish | Black Oxide |
| Grade | Non Graded |
| Hardness | Rockwell C32 |
| Head Height | 6.4 mm |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 17 mm |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 90 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Thread Length | 26 mm |
| Overall Length | 90 mm |
| Rockwell Hardness | Hrc32 |
| Standard | DIN 960 |
| System Of Measurement | Metric |
| Tensile Strength | 150800 psi |
| Thread Direction | Right Hand |
| Thread Length | 26 mm |
| Thread Size | M10 x 1 |
| Thread Style | Partially Threaded |
| Thread Type | Extra Fine |
Shipping Info:
| Ship weight (kg) | 3.22 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Head Height | Head Width | Thread Direction | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M04161.100.0050 | Partially Threaded | 26 mm | 50 mm | 26 mm | 6.4 mm | 17 mm | Right Hand | Class 10.9 | 50 | €84.61 | |
| M04161.100.0060 | Partially Threaded | 26 mm | 60 mm | 26 mm | 6.4 mm | 17 mm | Right Hand | Class 10.9 | 50 | €109.00 | |
| M04161.100.0070 | Partially Threaded | 26 mm | 70 mm | 26 mm | 6.4 mm | 17 mm | Right Hand | Class 10.9 | 50 | €166.31 | |
| M04161.100.0080 | Partially Threaded | 26 mm | 80 mm | 26 mm | 6.4 mm | 17 mm | Right Hand | Class 10.9 | 50 | €70.70 | |
| M04171.100.0020 | Fully Threaded | 20 mm | 20 mm | 20 mm | 6.4 mm | 17 mm | Right Hand | Class 10.9 | 100 | €70.70 | |
| M04171.100.0025 | Fully Threaded | 25 mm | 25 mm | 25 mm | 6.4 mm | 17 mm | Right Hand | Class 10.9 | 100 | €77.03 | |
| M04171.100.0030 | Fully Threaded | 30 mm | 30 mm | 30 mm | 6.4 mm | 17 mm | Right Hand | Class 10.9 | 100 | €177.93 |
