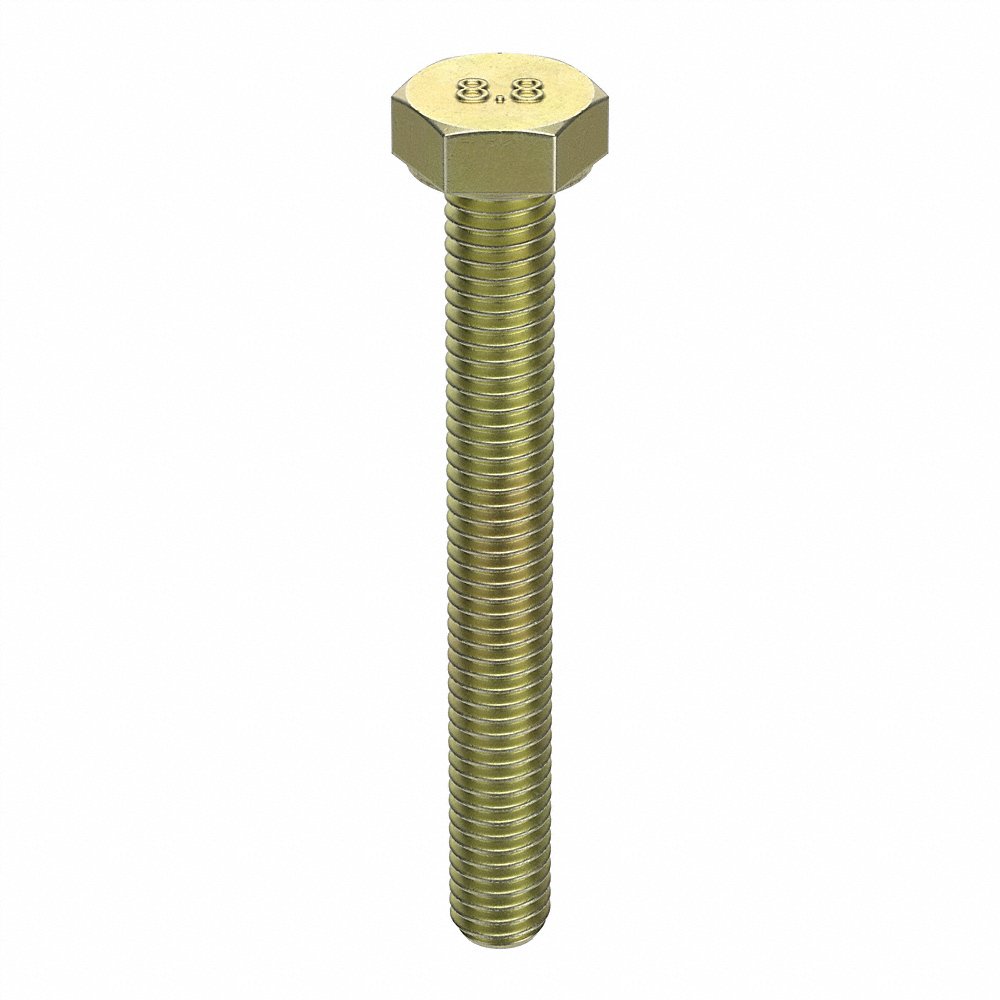

FABORY M01230.040.0060 Hex Head Cap Screw, M4x0.7 Thread Size, Steel, 60mm Lg., 2.8mm Head Ht., Coarse
Item: CG8CLNModel: M01230.040.0060Cross Ref: 38CM37
7 In Stock
Ships within 2 days via
5.00% off
€29.84 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Class 8.8 |
| Drive | Hex |
| Fastener Length | 60 mm |
| Finish | Zinc Yellow |
| Grade | Non Graded |
| Hardness | Rockwell C22 |
| Head Height | 2.8 mm |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 7 mm |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 60 mm |
| Material | Steel |
| Material Grade/class | Class 8.8 |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Thread Length | 60 mm |
| Overall Length | 60 mm |
| Rockwell Hardness | Hrc22 |
| Standard | DIN 933, ISO 4017 |
| System Of Measurement | Metric |
| Tensile Strength | 116000 psi |
| Thread Direction | Right Hand |
| Thread Length | 60 mm |
| Thread Size | M4 x 0.7 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.55 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Product | Model | Thread Style | Min. Thread Length | Thread Direction | Max. Temp. | Min. Temp. | Head Type | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M01220.040.0025 | Partially Threaded | 14 mm | Right Hand | 302°F | -58°F | - | Rockwell C22 | 100 | €28.42 | |
 |
M01230.040.0010 | Fully Threaded | 10 mm | Right Hand | 302°F | -58°F | Hex | Rockwell C22 | 100 | €15.64 | |
|
M01230.040.0012 | Fully Threaded | 12 mm | Right Hand | 302°F | -58°F | Hex | Rockwell C22 | 100 | €19.33 | |
 |
M01230.040.0016 | Fully Threaded | 16 mm | Right Hand | 302°F | -58°F | Hex | Rockwell C22 | 100 | €21.31 | |
|
M01230.040.0020 | Fully Threaded | 20 mm | Right Hand | 302°F | -58°F | Hex | Rockwell C22 | 100 | €18.18 | |
|
M01230.040.0025 | Fully Threaded | 25 mm | Right Hand | 302°F | -58°F | Hex | Rockwell C22 | 100 | €19.08 | |
|
M01230.040.0030 | Fully Threaded | 30 mm | Right Hand | 302°F | -58°F | Hex | Rockwell C22 | 100 | €17.81 |
