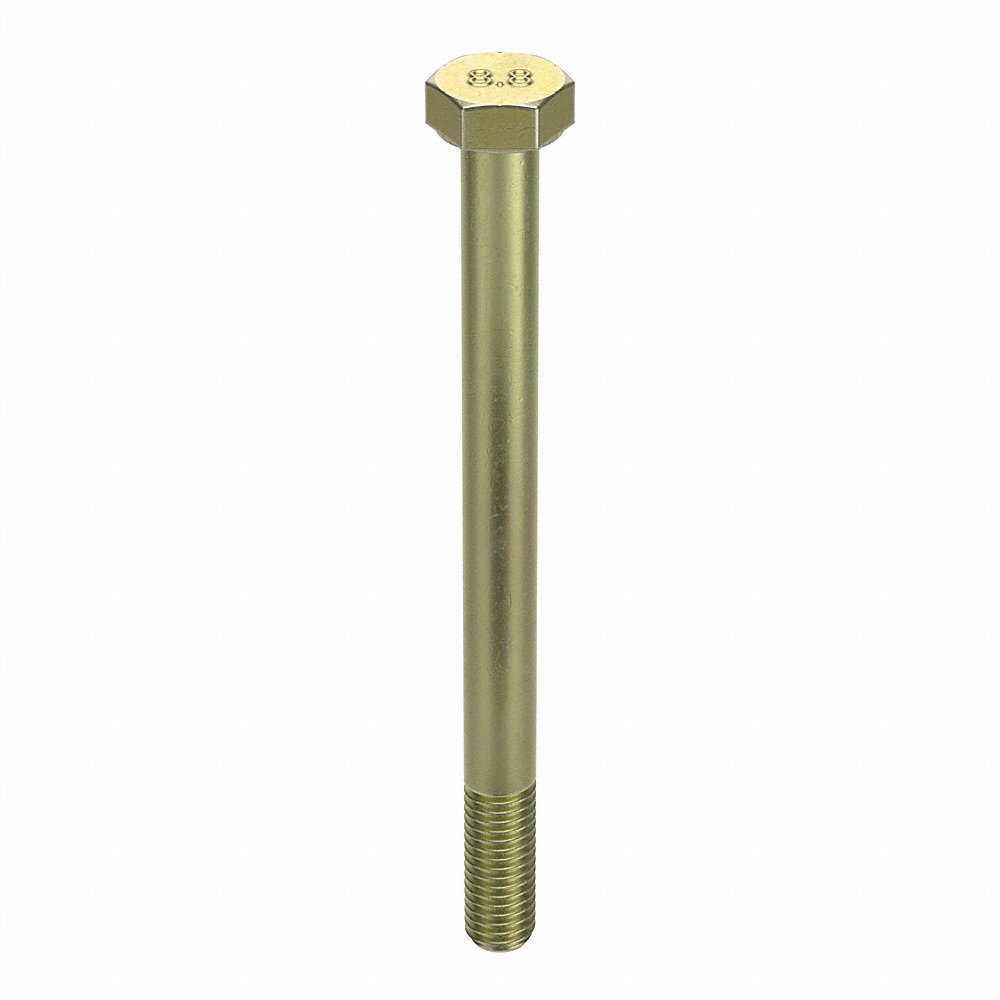

FABORY M01220.080.0140 Hex Head Cap Screw, M8x1.25 Thread Size, Steel, 140mm Lg., 5.3mm Head Ht., Yellow Zn Plated
Item: CG8CHAModel: M01220.080.0140Cross Ref: 38CL54
7 In Stock
Ships within 2 days via
10.00% off
€86.74 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Class 8.8 |
| Drive | Hex |
| Fastener Length | 140 mm |
| Finish | Zinc Yellow |
| Grade | Non Graded |
| Hardness | Rockwell C22 |
| Head Height | 5.3 mm |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 13 mm |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 140 mm |
| Material | Steel |
| Material Grade/class | Class 8.8 |
| Maximum Temperature | 302°F |
| Min. Thread Length | 28 mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 28 mm |
| Overall Length | 140 mm |
| Rockwell Hardness | Hrc22 |
| Standard | DIN 931 |
| System Of Measurement | Metric |
| Tensile Strength | 116000 psi |
| Thread Direction | Right Hand |
| Thread Length | 28 mm |
| Thread Size | M8 x 1.25 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 2.93 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
