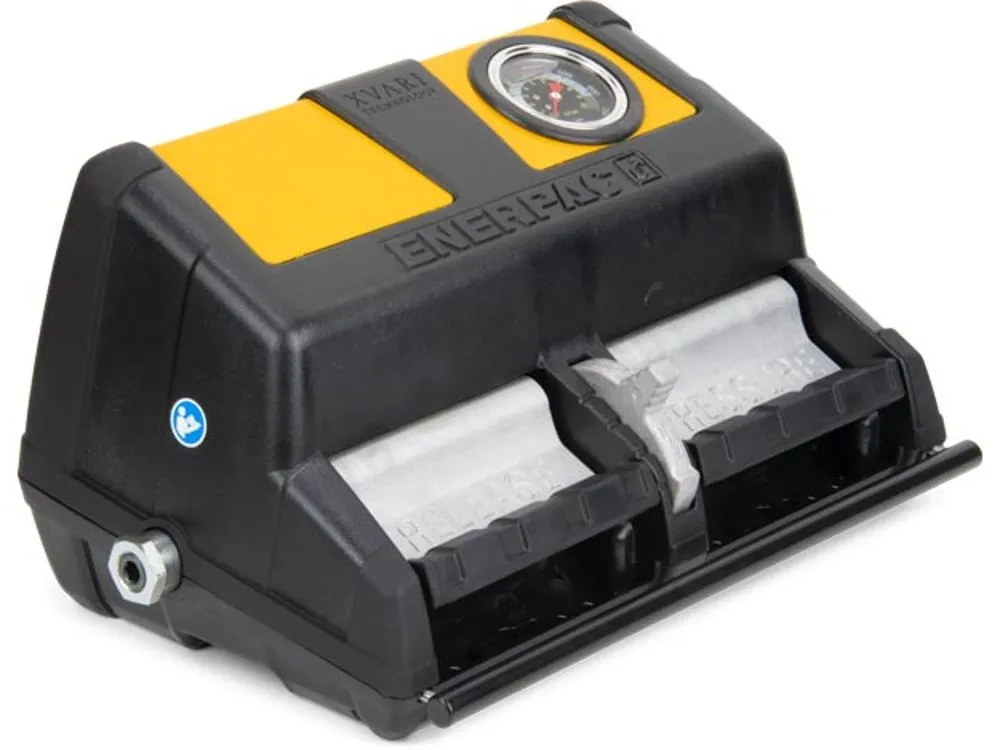

ENERPAC XA12 Air Driven Hydraulic Pump, 3/3 Valve, 122 Inch Cu. Capacity Usable Oil
Get it by Tuesday, Dec 23
10.00% off
€2,346.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Pump |
| Actuation Type | Foot |
| Air Consumption | 10-35 SCFM |
| Air Intake Connection Size | 1/4" |
| Air Intake Connection Type | FNPT |
| Air Pressure | 30 psi to 125 psi |
| Air Pressure | 30 to 125 psi |
| Control Valve Function | Advance, Hold, Retract |
| Control Valve Type | 3 Position, 3 Way |
| Cylinder Compatibility | Single Acting |
| Dimension H2 | 6.69" |
| Displacement @ 10,000 Psi | 15 cu. in./min. |
| Displacement @ No Load | 120 cu. in./min. |
| Features | Ergonomic Design, Pedal Lock Function, Pressure Relief Valve |
| Includes | External Adjustable Pressure Setting Valve, Ground Screw |
| Length | 13.82" |
| Max. Air Consumption | 35 SCFM |
| Max. Air Intake Pressure | 125 psi |
| Max. Flow Rate | 15 cu. in./min. |
| Max. Operating Pressure | 10000 psi |
| Max. Sound Level | 87 dBA |
| Media Intake Connection Size | 3/8" |
| Oil Capacity | 122 cu. in. |
| Oil Displacement @ 10,000 Psi | 15 cu. in./min. |
| Overall Height | 6.7" |
| Overall Length | 13.8" |
| Overall Width | 8.7" |
| Power Source | Air |
| Product Datasheet | enerpac-xa12.pdf |
| Reservoir Capacity | 122 cu. in. |
| Sound Level | 87 dBA |
| Treadle | Foot Operated |
| Type | Air Powered |
| Valve Operation | Manual |
Shipping Info:
| Ship weight (kg) | 11 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 34.93 |
| HS code | 8413500080 |
| Country of Origin | CN |
Product Details:
- Designed to power single-acting hydraulic cylinders or tools
- Three-way, three-position valve monitors and controls the direction of the hydraulic fluid in a single-acting system
- The closed hydraulic system prevents chances of contamination and two-foot pedals facilitate retraction of the hydraulic fluid
Documentation:
Product Variants
| Product | Model | Reservoir Capacity | Oil Capacity | Max. Operating Pressure | Oil Displacement @ 10,000 Psi | Actuation Type | Air Consumption | Type | Power Source | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

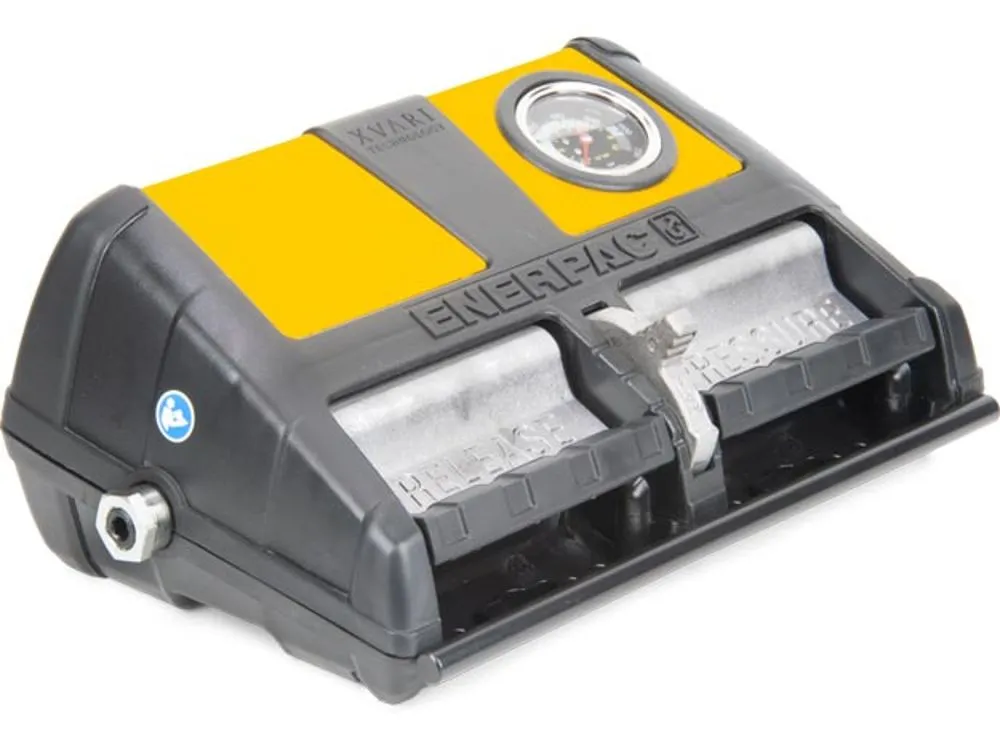

XA11G | 61 cu. in. | 61 cu. in. | 10000 psi | 15 cu. in./min. | Foot | 10-35 SCFM | Air Powered | Air | €2,801.86 | |
 |
XA12G | - | 122 cu. in. | 10000 psi | 15 cu. in./min. | Foot | 10-35 SCFM | Air Powered | Air | €3,037.76 |
