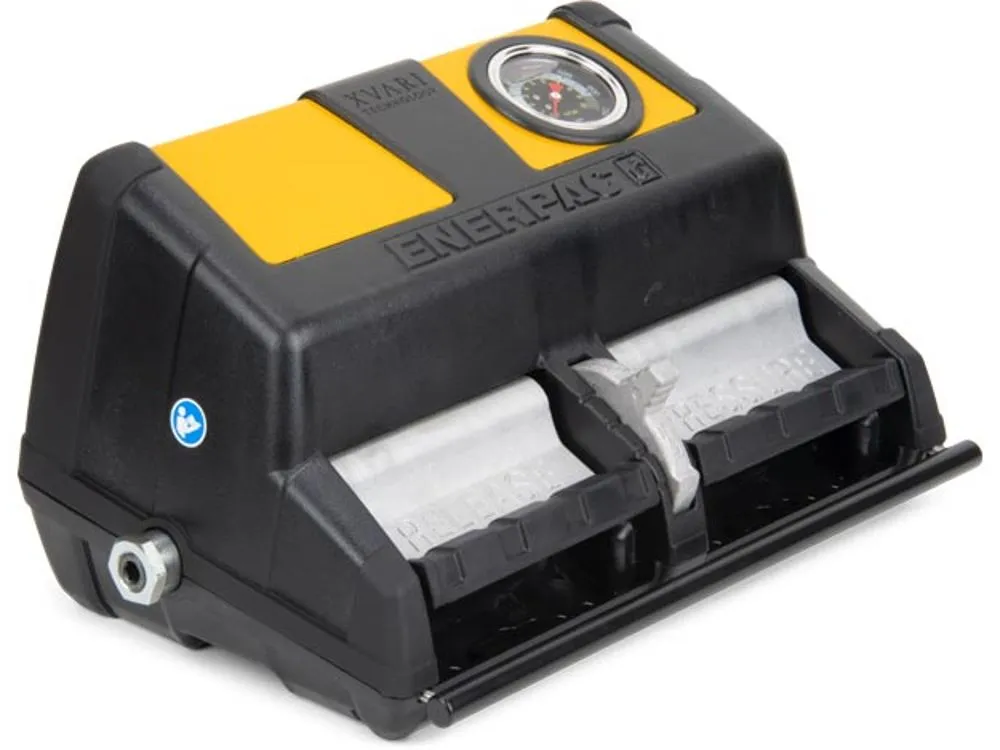

ENERPAC XA12G Air Driven Hydraulic Pump, 3/3 Valve, 122 Inch Cu. Capacity Usable Oil
Get it by Tuesday, Aug 25
13.00% off
€2,303.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Pump |
| Actuation Type | Foot |
| Air Consumption | 10-35 SCFM |
| Air Pressure | 30 psi to 125 psi |
| Air Pressure | 30 to 125 psi |
| Control Valve Function | Advance, Hold, Retract |
| Cylinder Compatibility | Single Acting |
| Dimension H2 | 6.69" |
| Features | Ergonomic Design, Pedal Lock Function, Pressure Relief Valve |
| Included | External Adjustable Pressure Setting Valve, Ground Screw |
| Max. Operating Pressure | 10000 psi |
| Oil Capacity | 122 cu. in. |
| Oil Displacement @ 10, 000 Psi | 15 cu. in./min. |
| Power Source | Air |
| Product Datasheet | enerpac-xa12g.pdf |
| Reservoir Capacity | 122 cu. in. |
| Sound Level | 87 dBA |
| Treadle | Foot Operated |
| Type | Air Powered |
| Valve Operation | Manual |
Shipping Info:
| Ship weight (kg) | 11.3 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 50.8 |
| HS code | 8413500080 |
| Country of Origin | CN |
Product Details:
Enerpac XA12G air-powered hydraulic pump designed to generate high pressure for various hydraulic applications such as construction, manufacturing and oil and gas.
Features:
- Enerpac XA12G air-powered pump AXVARI technology allows controlling the amount of hydraulic oil flow and speed of the cylinder with two separate foot pedals.
- It is equipped with the fine metering capability for precise control and integrated gauge with calibrated readings in bar, psi and MPa units.
- This Enerpac pump has a pedal lock function and an optional pedal safety guard for safety and durability.
- It is integrated with a closed hydraulic system for preventing contamination and allowing pump usage in any position.
- This Enerpac pump has an external setting valve for adjusting pressure.
- It is equipped with two separate feet for releasing and adding pressure, making it an ideal choice for hands-free pump operation.
- The manual valve function of this Enerpac XA12G air powered hydraulic pump offers advance, hold and retract operations.
Compatible Accessories:
- Enerpac XLK1 Lever Kit: It provides convenient and precise control over the pump's operation, enhancing user experience and allowing for more efficient hydraulic tasks.
- Enerpac XSC1 Swivel Coupler: It allows easy and flexible connection of hydraulic hoses with this pump, providing convenience during hydraulic operations.
- Enerpac RFL102 Regulator Filter Lubricator: It regulates air pressure, filters out contaminants and provides lubrication to the pump's components, ensuring optimal operation and protecting the pump from potential damage.
Frequently Asked Questions:
Q. What is the maximum pressure output of the Enerpac XA12G air powered pump?
A. Enerpac XA12G air powered pump can generate pressures up to 10000 psi.
Q. Is this ENERPAC XA12G air powered pump portable?
A. Yes, the brand's XA12G air powered pump is designed to be lightweight and portable. It is easy to transport and manoeuvre, making it suitable for applications that require mobility.
Documentation:
Product Variants
| Product | Model | Oil Capacity | Reservoir Capacity | Max. Operating Pressure | Air Pressure | Type | Overall Width | Power Source | Oil Displacement @ 10, 000 Psi | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

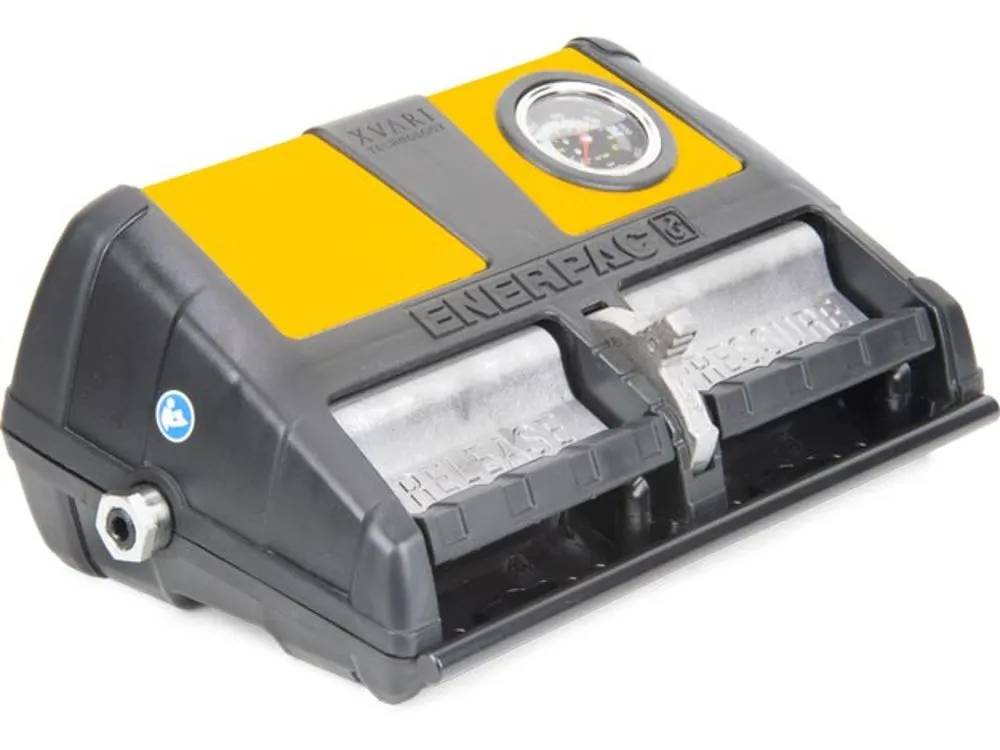

XA11G | 61 cu. in. | 61 cu. in. | 10000 psi | 30 psi to 125 psi | Air Powered | 8.7" | Air | 15 cu. in./min. | €2,441.80 | |
 |

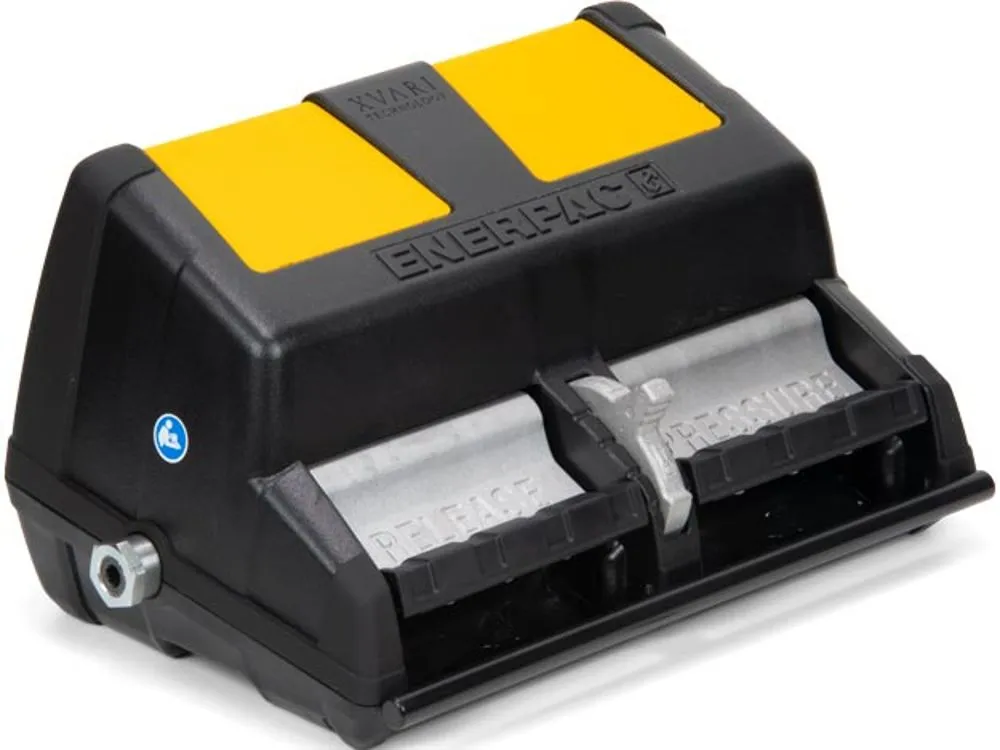

XA12 | 122 cu. in. | 122 cu. in. | 10000 psi | 30 psi to 125 psi | Air Powered | 8.7" | Air | 15 cu. in./min. | €2,271.82 |
