ENERPAC RRH307 Cylinder 30 Tons 7 Inch Stroke Length
Get it by Wednesday, Dec 24
10.00% off
€7,108.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cylinder |
| Base Bolt Circle Dia. | 3.63" |
| Base Mounting Holes Thread Size | 3/8"-16 |
| Base Mounting Thread Size | 3/8"-16 |
| Base To Advance Port | 1" |
| Body Material | Steel |
| Bolt Circle Dia. | 3.63" |
| Center Hole Dia. | 1.31" |
| Collapsed Height | 13" |
| Collar Thread Size | 4 1/2"-12 |
| Cylinder Bore | 3 1/2" |
| Cylinder Type | Hollow Plunger |
| Effective Push Area | 7.22 sq. in. |
| Extended Height | 20" |
| Finish | Paint |
| Handle | Yes |
| Includes | Dust Cap, Female Coupler |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Max. Push Capacity | 30 ton. |
| Nominal Capacity | 30 ton. |
| Nominal Stroke Length | 7" |
| Oil Capacity | 50.55 cu. in. |
| Oil Capacity Push | 50.55 cu. in. |
| Outside Dia. | 4 1/2" |
| Plunger Dia. | 2.5" |
| Plunger Internal Thread Size | 11 3/16"-16 |
| Plunger Thread Size | 1 13/16" -16 |
| Plunger Type | Hollow |
| Product Datasheet | enerpac-rrh307.pdf |
| Retracted Height | 13" |
| Series | RRH Series |
| Single Acting/double Acting | Double Acting |
| Stroke Length | 7" |
| Thread Size | 3/8"-16 |
| Top To Retract Port | 2.38" |
| Weighing Capacity | 30 ton. |
Shipping Info:
| Ship weight (kg) | 20.03 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 22.86 |
| HS code | 8425420000 |
| Country of Origin | CN |
Product Details:
Enerpac RRH307 cylinder is used for lifting, tensioning, testing and pulling applications with precise control of the retraction speed of the cylinder. This 30-ton hollow ram is attached to a hydraulic pump to move or support workpieces by applying a large force.
Features:
- Enerpac RRH307 cylinder features alloy steel construction with baked enamel exterior coating finish for structural rigidity and corrosion resistance.
- This Enerpac RRH307 double acting hydraulic hollow plunger cylinder is equipped with a relief valve to prevent damage against over-pressurisation during operation.
- It has nickel-plated floating centre tubes to withstand high pressures and temperatures to ensure long service life.
- This Enerpac RRH307 hydraulic cylinder offers double-acting operation that facilitates fast retraction for precise control.
- It further features a plunger wiper for minimising contamination in the cylinder.
Compatible Accessories:
- Enerpac Threaded Hollow Saddles: They feature a threaded hollow design, allowing secure attachment & precise positioning and making it an ideal accessory for lifting and supporting heavy loads.
Frequently Asked Questions:
Q. What is the stroke length of this Enerpac RRH307 cylinder?
A. The brand's RRH307 cylinder has a stroke length of 7 inches, allowing for precise positioning and extended reach in tasks.
Q. What accessories come included with this Enerpac RRH307 double-acting hydraulic hollow plunger cylinder?
A. It comes equipped with a CR-400 coupler and dust cap.
Documentation:
Product Variants
| Product | Model | Stroke Length | Retracted Height | Weighing Capacity | Outside Dia. | Oil Capacity | Cylinder Bore | Bolt Circle Dia. | Plunger Thread Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
RRH1001 | 1 1/2" | 6.5" | 100 ton. | 8.38" | 30.94 cu. in. | 6 1/2" | 7" | 1" | €15,231.49 | |
 |
RRH10010 | 10 1/8" | 18.13" | 100 ton. | 8.38" | 208.84 cu. in. | 6 1/2" | 7" | 1" | €24,579.14 | |
 |

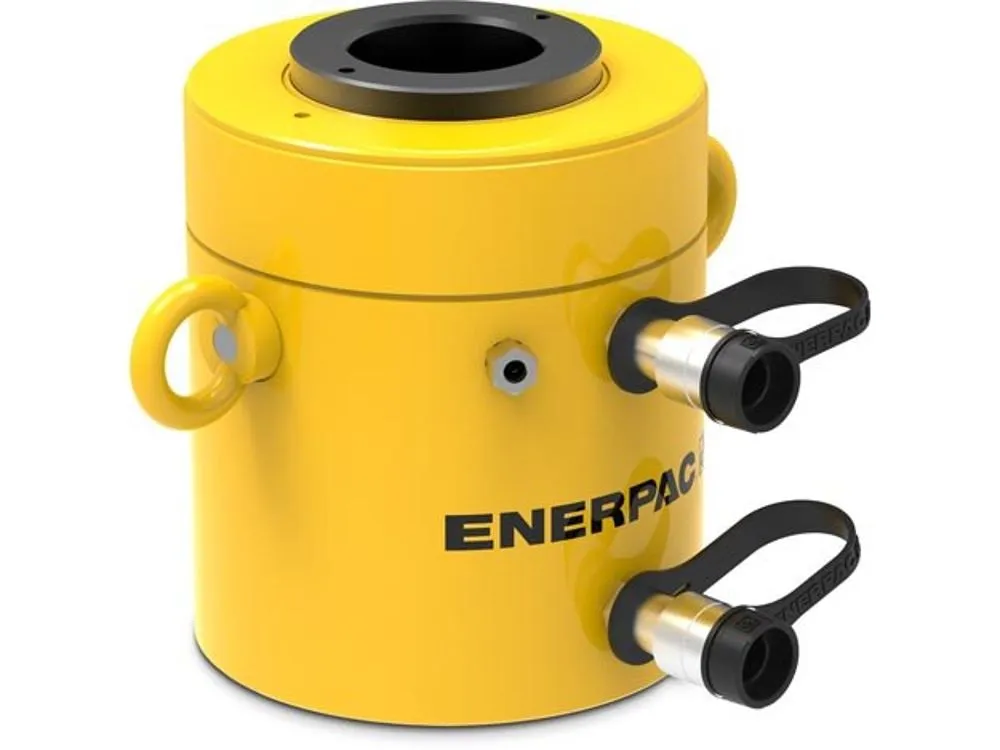

RRH1003 | 3" | 10" | 100 ton. | 8.38" | 61.88 cu. in. | 6 1/2" | 7" | 1" | €18,641.46 | |
|
RRH1006 | 6" | 13.5" | 100 ton. | 8.38" | - | 6 1/2" | - | 1" | €18,730.17 | |
|
RRH1508 | 8" | - | 150 ton. | 9 3/4" | 252.97 cu. in. | 7 1/2" | 6 1/2" | 1" | €31,827.79 | |
|
RRH3010 | 10 1/8" | 17" | 30 ton. | 4 1/2" | 73.12 cu. in. | 3 1/2" | 3.63" | 22/25" | €14,519.13 | |
 |
RRH6010 | 10 1/8" | 17.25" | 60 ton. | 6 1/4" | 128.94 cu. in. | 4 22/25" | 5 3/25" | 3/4" | €18,244.25 |
