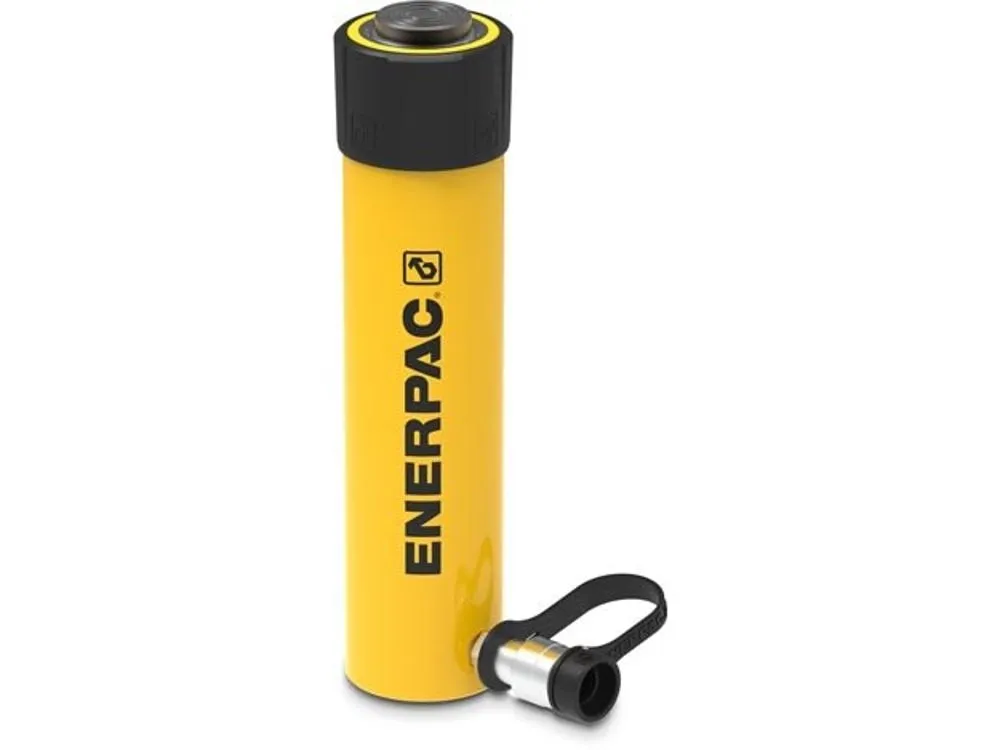

ENERPAC RC-2510 General Purpose Hydraulic Cylinder, Hydraulic Ram, 25 Ton, 10000 PSI, Steel Construction | AF2NGP 6W473

ENERPAC RC-2510 General Purpose Hydraulic Cylinder, Hydraulic Ram, 25 Ton, 10000 PSI, Steel Construction

In Stock
Item: AF2NGP Model: RC-2510Cross Ref: 6W473
Check Availability
See variants (40)

Get it by Jun 10, Monday

Not eligible for flat shipping. Flat shipping is available on order value € or more and aggregate weight below 10 pounds.

€1,750.29 /unit
Add To Cart
Request a Quote

Payment Options Available

Delivery Options Available

Product Specifications:

ItemHydraulic Cylinder
Base Mounting Holes Bolt Circle2.31"
Base Mounting Holes Thread Depth0.75"
Base Mounting Holes Thread Size1/2"-13 UN
Base to Advance Port1"
Capacity25 ton.
Collapsed Height14.75"
Collar Thread Length1.94"
Collar Thread Size3 5/16"-12 UN
CouplersCR400 Coupler
Cylinder Bore2.56"
Cylinder Effective Area Advance5.16 sq. in.
Cylinder Return TypeSingle-Acting, Spring Return
Extended Height25"
FinishPainted
MaterialSteel
Max. Cylinder Capacity Advance25.8 short ton.
Max. Operating Pressure10000 psi
Number of Stages1
Oil Capacity Advance52.86 cu. in.
Optional Tilt Saddle Addition To Collapsed Height0.59"
Optional Tilt Saddle Dia.1.97"
Outside Dia.3.38"
Plunger Dia.2.25"
Plunger Internal Thread Size1 1/2"-16
Plunger Thread Length1"
Plunger TypeSolid
Saddle Diameter1.97"
Saddle Max. Tilt Angle5 Deg.
Saddle Protrusion from Plunger0.41"
Stroke10.25"

Shipping Info:

Ship weight (kg) 13.95
Ship height (cm)20.32
Ship length (cm)46.99
Ship width (cm)8.59
HS code8431100090
Country of OriginCN

Product Details:

Enerpac RC2510 general-purpose hydraulic cylinder is ideal for construction, manufacturing and agriculture applications, where heavy lifting, pushing and pulling tasks require a reliable and robust general-purpose hydraulic cylinder.

Features:

  • It features a reinforced stop ring to improve durability and enhance side load resistance.
  • This unit has a high-grade polyethene seal to ensure low wear and provides a long service life.
  • It includes a CR400 coupler, dust cap, and collar thread protector for additional functionality and protection for the cylinder's components.
  • This unit offers collar and plunger threads with base mounting holes for convenient fixturing, easy installation, and integration into different applications.
  • It includes a plunger wiper to reduce contamination, safeguarding the internal components and extending the overall lifespan of the cylinder.
  • This unit further features steel construction with baked enamel finish enhancing corrosion resistance, ensuring long-lasting durability.
  • It features a Trio hybrid pre-tensioned spring system to enable faster retraction.

Compatible Accessories:

  • Enerpac GA45GC Gauge Adapter: It is used to connect pressure gauges to hydraulic systems, allowing for accurate measurement & monitoring of hydraulic pressure levels during various industrial applications.
  • Enerpac REB25 Clevis Eye Base: It is used as a secure attachment point for lifting or pulling applications, providing a reliable & sturdy connection between the hydraulic cylinder & the load being lifted or pulled.

Frequently Asked Questions:

Q. What is the role of the piston in Enerpac RC2510 hydraulic cylinder?

A. The piston separates the cylinder into two chambers and transmits the hydraulic force generated by the fluid to the rod.

Q. What are the factors to consider while choosing the right hydraulic cylinder for my application?

A. Major factors include stroke length, load capacity, operating pressure and environmental conditions.

Product Variants

ProductModelOutside Dia.Cylinder Effective Area AdvanceBase Mounting Holes Bolt CircleBase Mounting Holes Thread SizeBase to Advance PortCapacityCollar Thread LengthCylinder BorePrice
ENERPAC RC10010 General Purpose Hydraulic Cylinder, 103.1 Ton, Capacity, 10.25 Inch Stroke Length | AA8KTP 18Y535 RC100107"20.63 sq. in.5.5"3/4"-10 UN1.63"100 ton.1.75"5.13"€9,652.85
ENERPAC RC1512 General Purpose Hydraulic Cylinder15.7 Ton, Capacity, 12.00 Inch Stroke Length | AA8KTQ 18Y536 RC15122.75"3.14 sq. in.1.88"3/8"-16 UN1"15 ton.1.19"2"€3,100.60
ENERPAC RC7513 General Purpose Hydraulic Cylinder79.5 Ton, Capacity, 13.13 Inch Stroke Length | AA8KTR 18Y537 RC75135.75"15.9 sq. in.4.5"5/8"-11 UNC1.19"75 ton.1.75"4.5"€8,564.68
ENERPAC RC756 General Purpose Hydraulic Cylinder79.5 Ton, Capacity, 6.13 Inch Stroke Length | AA8KTT 18Y538 RC7565.75"15.9 sq. in.4.5"5/8"-11 UNC1.19"75 ton.1.75"4.5"€6,192.24
ENERPAC RC-1006 General Purpose Hydraulic Cylinder, 103.1 Ton, Capacity | AC2XLA 2NWH3 RC10067"20.63 sq. in.5.5"3/4"-10 UN1.63"100 ton.1.75"5.13"€4,412.10
ENERPAC RC-1012 General Purpose Hydraulic Cylinder, 10000 PSI Max Pressure, 10 Ton, Capacity | AC2XLB 2NWH4 RC10122.25"2.24 sq. in.1.56"5/16"-18 UN0.75"10 ton.1.06"1.69"€1,131.90
ENERPAC RC-1014 General Purpose Hydraulic Cylinder, 14 Inch Stroke Length, Single Acting, Alloy Steel | AC2XLC 2NWH5 RC10142.25"2.24 sq. in.1.56"5/16"-18 UN0.75"10 ton.1.06"1.69"€1,166.20
