ENERPAC RC Series Hydraulic Cylinders
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1| Style | Model | Stroke Length | Extended Height | Plunger Dia. | Nominal Stroke Length | Retracted Height | Nominal Capacity | Oil Capacity Push | Center Hole Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RC51 | 1" | 5.53" | 1" | 1" | 4.34" | 5 ton. | 0.99 cu. in. | 1" | €687.55 | |
| B | RC-251 | 1" | 6 1/2" | 2 1/4" | 1" | 5.5" | 25 ton. | 5.16 cu. in. | 2 1/4" | €1,102.18 | |
| C | RC151 | 1" | 5.33" | 1.63" | 1" | 4.88" | 15 ton. | 3.14 cu. in. | 1 5/8" | €1,031.81 | |
| D | RC-101 | 1" | 4.56" | 1 1/2" | 1" | 3.53" | 10 ton. | 2.24 cu. in. | 1 1/2" | €780.92 | |
| E | RC-102 | 2 1/8" | 6.14" | 1 1/2" | 2" | 4.78" | 10 ton. | 4.75 cu. in. | 1 1/2" | €721.74 | |
| F | RC1002 | 2" | 10.63" | 4.13" | 2" | 8.62" | 105 ton. | 41.26 cu. in. | 3/4" | €5,692.06 | |
| G | RC-502 | 2" | 8.94" | 3.13" | 2" | 6.94" | 50 ton. | 22.09 cu. in. | 3 1/8" | €2,349.26 | |
| H | RC-252 | 2" | 8 1/2" | 2 1/4" | 2" | 6.5" | 25 ton. | 10.31 cu. in. | 2 1/4" | €1,161.35 | |
| I | RC-152 | 2" | 7.33" | 1.63" | 2" | 5.88" | 15 ton. | 6.28 cu. in. | 1 5/8" | €1,013.73 | |
| J | RC-53 | 3" | 9 1/2" | 1" | 3" | 6.5" | 5 ton. | 2.98 cu. in. | 1" | €856.22 | |
| K | RC-104 | 4 1/8" | 10.33" | 1 1/2" | 4" | 6.75" | 10 ton. | 9.23 cu. in. | 1 1/2" | €818.40 | |
| L | RC-254 | 4" | 12 1/2" | 2 1/4" | 4" | 8.5" | 25 ton. | 20.63 cu. in. | 2 1/4" | €1,288.99 | |
| M | RC-504 | 4" | 12.95" | 3.13" | 4" | 8.94" | 50 ton. | 44.18 cu. in. | 3 1/8" | €2,395.68 | |
| N | RC-154 | 4" | 11 22/25" | 1.63" | 4" | 7.88" | 15 ton. | 12.57 cu. in. | 1 5/8" | €1,152.92 | |
| O | RC55 | 5" | 13 1/2" | 1" | 5" | 8.5" | 5 ton. | 4.97 cu. in. | 1" | €724.67 | |
| P | RC50 | 5/8" | 2 1/4" | 1" | 5/8" | 1.63" | 5 ton. | 0.62 cu. in. | 1" | €662.74 | |
| Q | RC-506 | 6 1/4" | 17.37" | 3.13" | 6" | 11.13" | 50 ton. | 69.03 cu. in. | 3 1/8" | €2,491.51 | |
| R | RC-256 | 6 1/4" | 17" | 2 1/4" | 6" | 10.75" | 25 ton. | 32.23 cu. in. | 2 1/4" | €1,404.92 | |
| S | RC-106 | 6 1/8" | 15.33" | 1 1/2" | 6" | 9.75" | 10 ton. | 13.7 cu. in. | 1 1/2" | €990.61 | |
| T | RC756 | 6 1/8" | 17.38" | 3 3/4" | 6" | 11.25" | 75 ton. | 97.41 cu. in. | 3 3/4" | €5,228.10 | |
| U | RC1006 | 6 5/8" | 20.56" | 4.13" | 7" | 14.06" | 100 ton. | 4.75 cu. in. | 4 1/8" | €6,192.19 | |
| V | RC-156 | 6" | 16.56" | 1.63" | 6" | 10.69" | 15 ton. | 18.85 cu. in. | 1 5/8" | €1,154.20 | |
| W | RC-57 | 7" | 17 3/4" | 1" | 7" | 10.75" | 5 ton. | 6.96 cu. in. | 1" | €968.97 | |
| X | RC-258 | 8 1/4" | 21" | 2 1/4" | 8" | 12.75" | 25 ton. | 42.55 cu. in. | 2 1/4" | €1,914.42 | |
| Y | RC-308 | 8 1/4" | 23 1/2" | 2 1/4" | 8" | 15.25" | 30 ton. | 53.56 cu. in. | 2 1/4" | €2,762.81 | |
| Z | RC-108 | 8" | 19 3/4" | 1 1/2" | 8" | 11.75" | 10 ton. | 17.89 cu. in. | 1 1/2" | €995.93 | |
| A1 | RC-158 | 8" | 20.56" | 1.63" | 8" | 12.69" | 15 ton. | 25.13 cu. in. | 1 5/8" | €1,341.01 | |
| B1 | RC59 | 9 1/8" | 21.33" | 1" | 9" | 12.75" | 5 ton. | 9.07 cu. in. | 1" | €1,117.19 | |
| C1 | RC-2510 | 10 1/4" | 25" | 2 1/4" | 10" | 14.75" | 25 ton. | 52.86 cu. in. | 2 1/4" | €2,178.43 | |
| D1 | RC10010 | 10 1/4" | 27.94" | 4.13" | - | - | - | - | - | €8,497.32 | |
| E1 | RC5010 | 10 1/4" | 25.35" | 3.13" | 10" | 15.12" | 55 ton. | 113.21 cu. in. | 1/2" | €4,595.16 | |
| F1 | RC-1010 | 10 1/8" | 23 22/25" | 1 1/2" | 10" | 13.75" | 10 ton. | 22.65 cu. in. | 1 1/2" | €1,012.06 | |

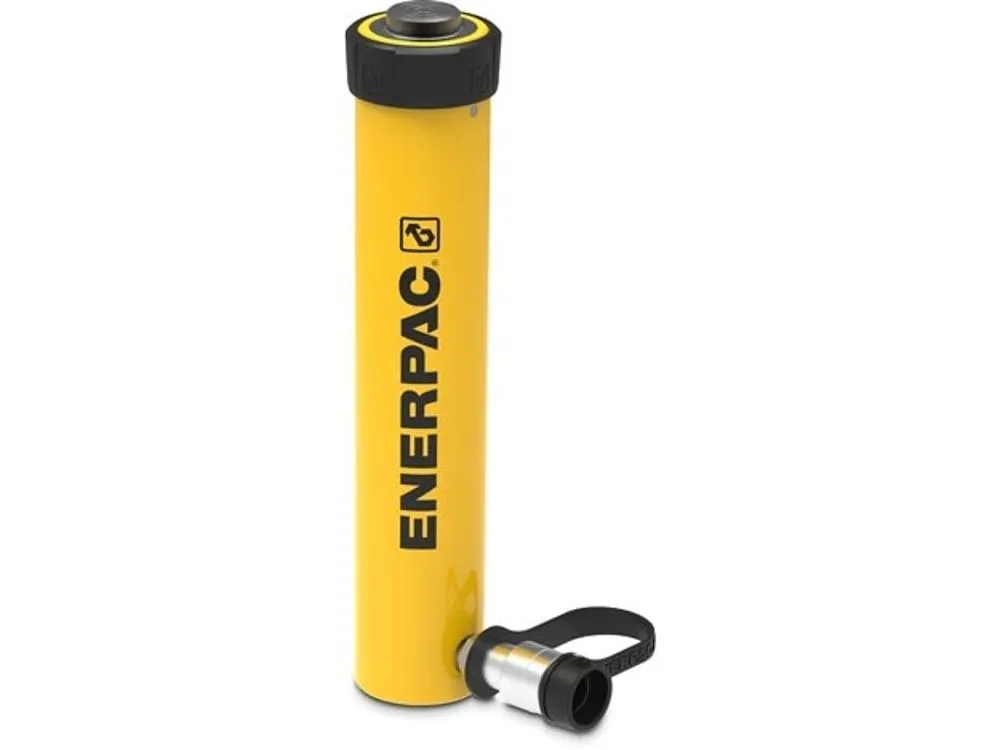

| G1 | RC1510 | 10" | 24.56" | 1.63" | 10" | 14.69" | 15 ton. | 31.42 cu. in. | 1 5/8" | €1,545.84 | |
| H1 | RC2512 | 12 1/4" | 29" | 2 1/4" | 12" | 16.75" | 25 ton. | 63.18 cu. in. | 2 1/4" | €2,510.04 | |
| I1 | RC1012 | 12" | 27 3/4" | 1 1/2" | 12" | 15.75" | 10 ton. | 26.84 cu. in. | 1 1/2" | €1,334.10 | |
| J1 | RC1512 | 12" | 28.69" | 1.63" | 12" | 16.69" | 15 ton. | 37.7 cu. in. | 1 5/8" | €2,566.66 | |
| K1 | RC5013 | 13 1/4" | 31.37" | 3.13" | 13" | 18.13" | 50 ton. | 146.34 cu. in. | 3 1/8" | €4,149.63 | |
| L1 | RC7513 | 13 1/8" | 32 1/2" | 3 3/4" | 13" | 19.38" | 75 ton. | 208.74 cu. in. | 3 3/4" | €7,525.64 | |
| M1 | RC2514 | 14 1/4" | 33" | 2 1/4" | 14" | 18.75" | 25 ton. | 73.49 cu. in. | 2 1/4" | €2,665.74 | |
| N1 | RC1014 | 14" | 31 3/4" | 1 1/2" | 14" | 17.75" | 10 ton. | 31.31 cu. in. | 1 1/2" | €1,498.24 | |
| O1 | RC1514 | 14" | 32.69" | 2" | 14" | 18.69" | 15 ton. | 43.98 cu. in. | 1 5/8" | €2,164.04 |
