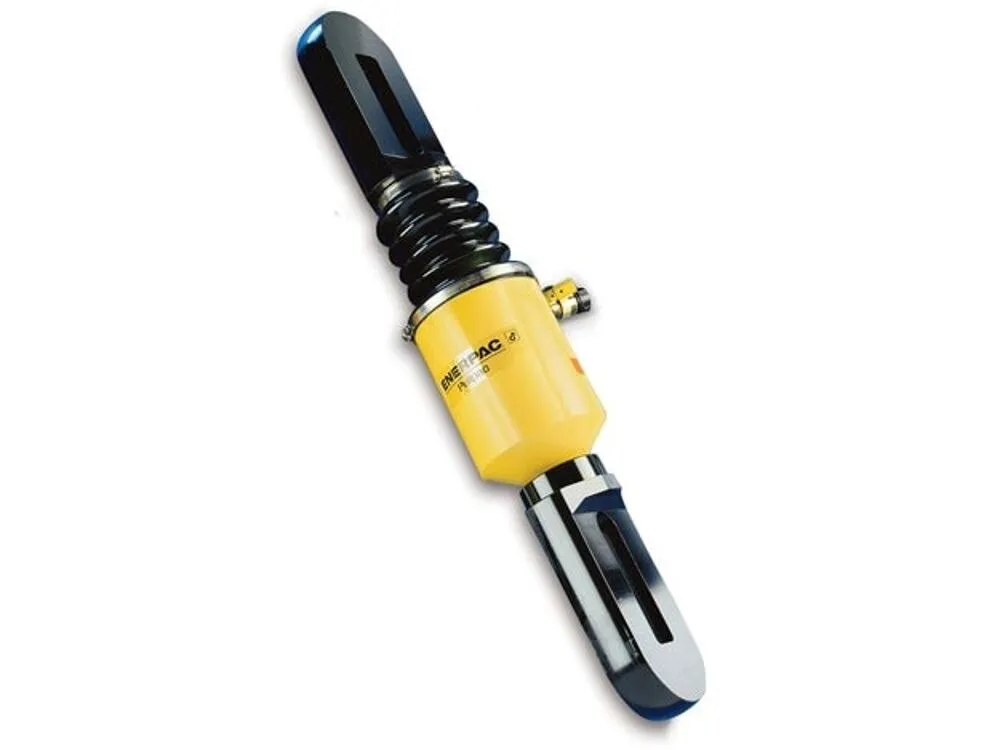

ENERPAC BRP606 Cylinder 60 Tons 6 Inch Stroke Length
Get it by Wednesday, Dec 24
10.00% off
€18,874.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cylinder |
| Body Material | Steel |
| Center Hole Dia. | 4 1/3" |
| Collapsed Height | 28.28" |
| Collapsed Height | 28 7/25" |
| Cylinder Bore | 4.33" |
| Cylinder Type | Pull |
| Effective Pull Area | 11.17 sq. in. |
| Extended Height | 34 7/25" |
| Extended Height | 34.28" |
| Finish | Paint |
| Handle | No |
| Includes | Slotted Link |
| Link Width | 1.89" |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Max. Pull Capacity | 60 ton. |
| Mounting Hole Dia. | 5.93" |
| Nominal Capacity | 60 ton. |
| Nominal Stroke Length | 6" |
| Oil Capacity | 70.43 cu. in. |
| Oil Capacity Pull | 67.02 cu. in. |
| Outside Dia. | 5.51" |
| Plunger Dia. | 6 1/2" |
| Plunger To Mounting Hole | 1.58" |
| Plunger Type | Solid |
| Product Datasheet | enerpac-brp606.pdf |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 28.28" |
| Saddle Diameter | 5 3/25" |
| Series | BRP Series |
| Single Acting/double Acting | Single Acting |
| Slot To Link End | 2 14/25" |
| Stroke Length | 6" |
| Weighing Capacity | 60 ton. |
Shipping Info:
| Ship weight (kg) | 65.25 |
| Ship height (cm) | 82.6 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 16.08 |
| HS code | 8425420000 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Stroke Length | Retracted Height | Oil Capacity | Weighing Capacity | Outside Dia. | Cylinder Bore | Saddle Diameter | Center Hole Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

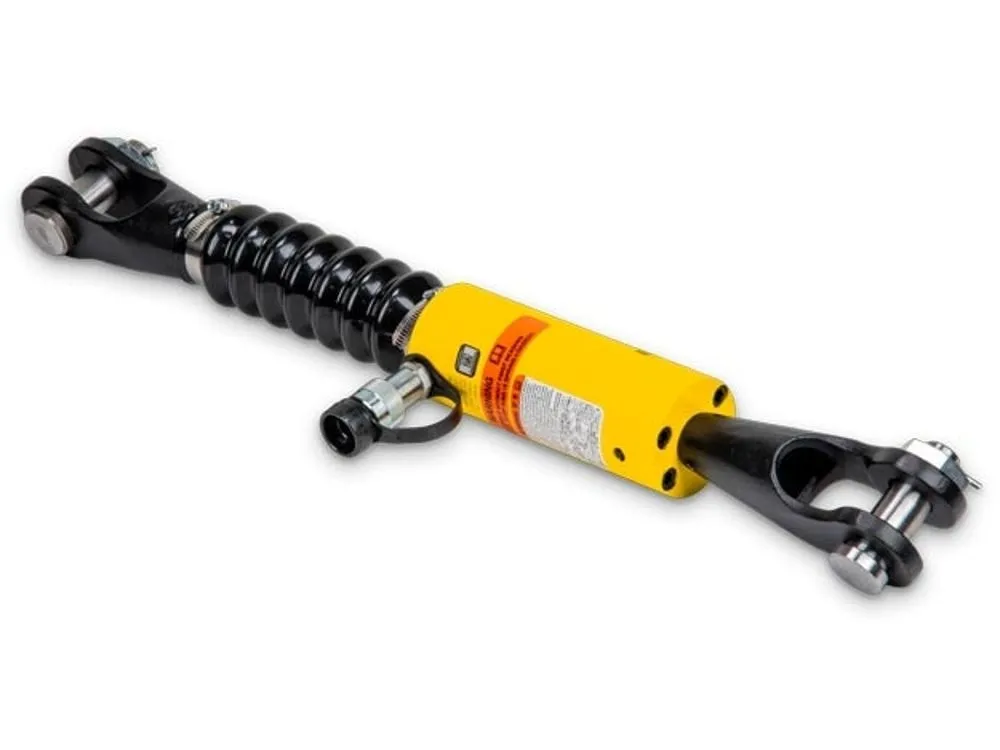

BRP106C | 5 7/8" | 23.66" | 13.8 cu. in. | 10 ton. | 3.35" | 2.13" | 4.13" | 2 1/8" | €8,282.93 | |
 |

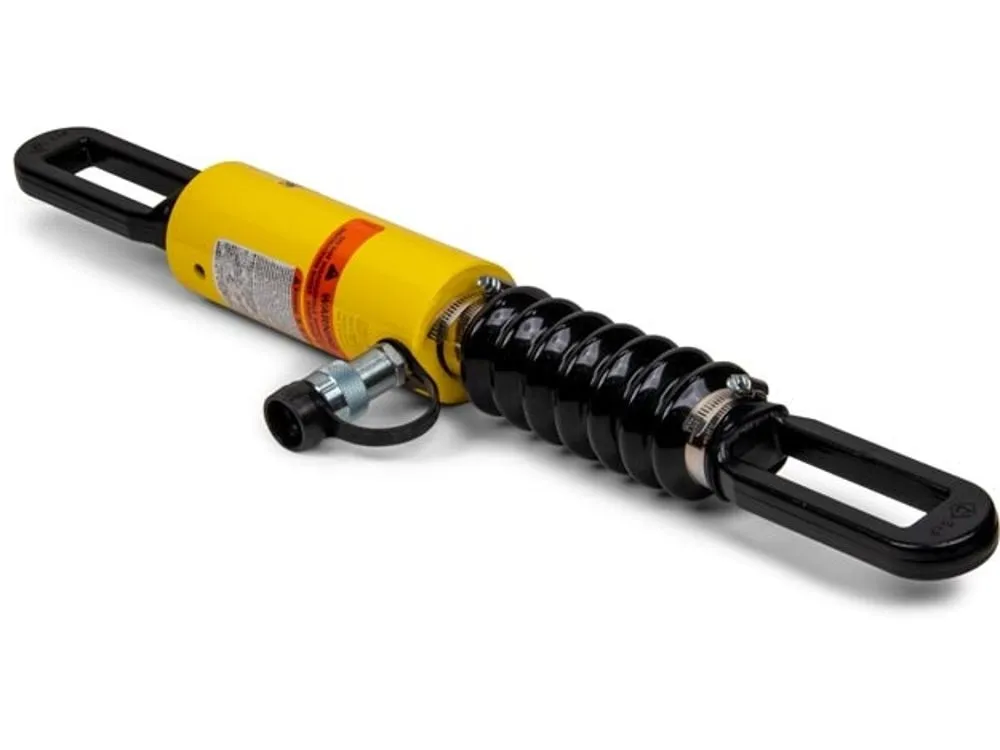

BRP106L | 5 7/8" | 22.56" | 13.8 cu. in. | 10 ton. | 3.35" | 2.13" | 2 13/25" | 2 1/8" | €4,940.20 | |
 |

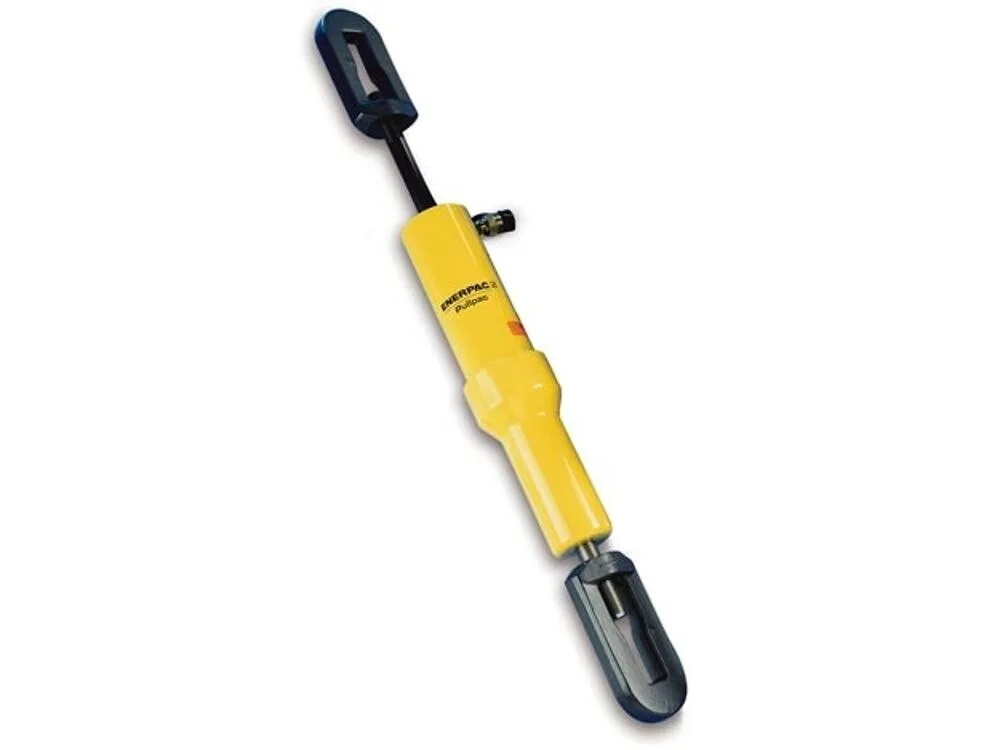

BRP306 | 6" | 43.71" | 43.27 cu. in. | 30 ton. | 5.39" | 3 1/2" | 4.49" | 3 1/2" | €11,697.19 |
