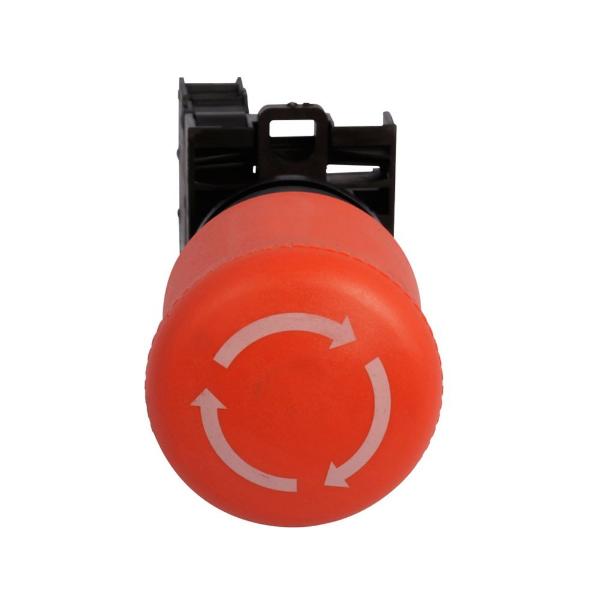

EATON M22-PVT-K01 Non-Illuminated Modular Pushbutton Selector Switch, 22.5 mm, 1NC Contact, Red/Silver
Item: BH4TUPModel: M22-PVT-K01Cross Ref: 30XF75
7 In Stock
Ships within 2 days via
5.00% off
€103.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Emergency Stop |
| Ac Contact Rating | 6A @ 230V |
| Action | Maintained |
| Actuator Function | Maintained |
| Actuator Type | Knob, Twist To Release |
| Bezel | Silver |
| Bezel Material | Nylon |
| Button Color | Red |
| Contact Configuration | 1 NC |
| Contact Form | 1NC |
| Dc Contact Rating | 5A @ 250V |
| Display Qty | 1 |
| Features | Field Conversion From Momentary To Maintained Can Be Done, Includes Contact Block Mounting Adapter |
| Head Material | Plastic |
| Head/lens Color | Red |
| Height | 1" |
| Illumination | Non-Illuminated |
| Ip Rating | IP67, IP69K |
| Length | 2" |
| Maintained Action Release | Twist |
| Max. Operating Temp. | 158°F |
| Mechanical Operating Durability | 1 x 10^6 |
| Min. Operating Temp. | -13°F |
| Mushroom Head Dia. | 40 mm |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Notes | Positively Driven Contact Blocks. |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Overall Depth | 2.77" |
| Overall Height | 1" |
| Overall Width | 1" |
| Panel Mounting Hole Dia. | 22 mm |
| Product Type | Emergency Stop Push Buttons |
| Push Button Style | Mushroom Head |
| Resistance Properties | Corrosion Resistant |
| Series | M22 Series |
| Terminal Connection | Screw Clamp |
| Type | Emergency Stop |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Product Variants
| Product | Model | Bezel Material | Height | Illumination | Nema Enclosure Rating | Actuator Type | Ip Rating | Actuator Size | Contact Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M22-PV60P | - | - | - | - | - | - | - | - | €72.53 | |
 |
M22-PV45P | - | 1" | Non-Illuminated | - | - | - | - | - | €54.08 | |
|
M22-PV45P-MPI | - | 3" | Non-Illuminated | - | - | - | - | - | €175.22 | RFQ
|
 |
M22-PV-K12 | - | 5" | Non-Illuminated | NEMA 13, NEMA 4X | Knob, Push Pull | IP67, IP69K | - | 1 NO-2 NC | €118.99 | |
|
M22-PV-B100 | - | 14" | - | - | - | - | - | - | €4,143.56 | |
|
M22-PV-GB99-K11 | - | 2" | Non-Illuminated | NEMA 13, NEMA 4X | Knob, Push Pull | IP67, IP69K | - | 1 NC, 1 NO | €93.96 | |
|
M22-PV60P-MPI | - | 1" | Non-Illuminated | - | - | - | - | - | €148.41 |
