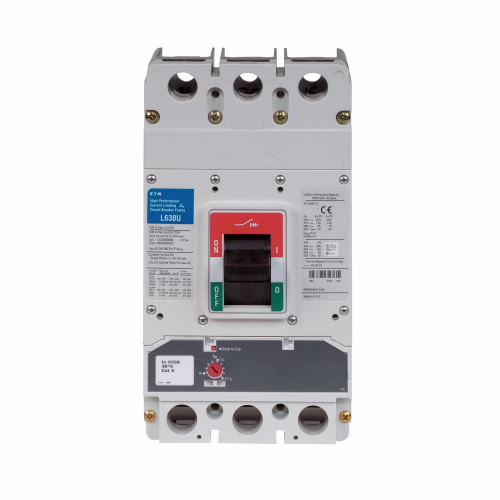

EATON LGU3400AAG Molded Case Circuit Breaker, Lg-Frame, Lg Type, 3-Pole, 400A, Line And Load, 50/60 Hz
Get it by Friday, Dec 19
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Amperage Rating | 400A |
| Circuit Breaker Frame Type | Complete Breaker |
| Circuit Breaker Type | LG |
| Frame | LG |
| Frequency Rating | 50-60 Hz |
| Height | 5 12/25" |
| Interrupt Rating | 65 kAIC at 600V AC, 150 kAIC at 480V AC, 200 kAIC at 240V AC |
| Length | 4.09" |
| Mfr. Series | Series G |
| Mounting Hardware | Metric |
| Notes | Adjustable Thermal, Adjustable Magnetic Trip Units Are Typically Used In Iec Markets And Are Not UL Or CSA Listed, LG Breaker Is HACR Rated |
| Number Of Poles | 3 |
| Rating | 80% Rated |
| Terminals | Line And Load |
| Trip Type | Adjustable Thermal, Adjustable Magnetic |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Weight | 11.9 lbs. |
| Width | 5 12/25" |
Shipping Info:
| Ship weight (kg) | 5.36 |
| Ship height (cm) | 13.92 |
| Ship length (cm) | 10.39 |
| Ship width (cm) | 13.92 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Poles | Circuit Breaker Type | Voltage | Frame Size | Ac Voltage Rating | Phase | Phase Connection | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LGC3250FAG | 3 | LG | - | - | - | - | - | - | €8,995.66 | |
|
LGE3250FAG | 3 | LG | - | - | - | - | - | - | €8,651.72 | |
|
LGE3300FAG | 3 | LG | - | - | - | - | - | - | €3,683.35 | |
 |
LGE340033G | 3 | LG | - | - | - | - | - | - | €5,001.51 | |
 |
LGH3300FAG | 3 | LG | - | - | - | - | - | - | €5,556.93 | |
 |
LGS3250FAG | 3 | LG | - | - | - | - | - | - | €4,705.71 | |
 |
LGS3300FAG | 3 | LG | - | - | - | - | - | - | €3,856.25 |
