EATON JGE3175FAG Molded Case Circuit Breaker, Jg-Frame, Jg Type, 3-Pole, 175A, 600 Vac, 50/60 Hz
Item: AG8QDVModel: JGE3175FAGCross Ref: 46MY55
7 In Stock
Ships within 2 days via
10.00% off
€3,134.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 600V AC |
| Amperage Rating | 175A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Frame Type | Complete Breaker |
| Circuit Breaker Mounting Style | Free Standing |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | 250V AC |
| Depth | 3.57" |
| For Use With | Allen Bradley Mcc, Eaton Mcc Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse |
| Frame | JG |
| Frame Size | 250A, JG |
| Frequency Rating | 50-60 Hz |
| Height | 4.13" |
| High Amp Trip Setting | 250A |
| Instantaneous Trip | Fixed |
| Interrupt Rating | 25 kAIC at 480V AC, 65 kAIC at 240V AC, 18 kAIC at 600V AC |
| Length | 3.57" |
| Low Amp Trip Setting | 20A |
| Max. Air Rating | 25 kA At 240V AC |
| Max. Operating Temp. | 158°F |
| Max. Wire Size | 1/0 AWG |
| Mfr. Series | Series G |
| Min. Operating Temp. | -4°F |
| Min. Wire Size | 14 AWG |
| Mounting Hardware | Metric |
| Number Of Poles | 3 |
| Phase | Three |
| Phase Connection | ABC |
| Rating | 80% Rated |
| Series | JG Series |
| Terminal Connection | Line/Load Lug |
| Terminals | Line And Load |
| Trip Type | Thermal Magnetic |
| Voltage | 600V AC |
| Voltage Type | AC |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 4.13" |
Shipping Info:
| Ship weight (kg) | 2.7 |
| Ship height (cm) | 10.49 |
| Ship length (cm) | 9.07 |
| Ship width (cm) | 10.49 |
| Country of Origin | US |
Product Variants
| Model | Circuit Breaker Type | Voltage | Number Of Poles | Frame Size | Ac Voltage Rating | Phase | Phase Connection | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| JGE3100FAG | Standard | 600V AC/250V DC | 3 | 250A, JG | 600V AC | Three | ABC | 14 AWG | €3,172.99 | |
| JGE3150FAG | Standard | 600V AC | 3 | 250A, JG | 600V AC | Three | ABC | 14 AWG | €3,284.08 | |
| JGE3200FAG | Standard | 600V AC | 3 | 250A, JG | 600V AC | Three | ABC | 14 AWG | €2,675.87 | |
| JGE3250FAG | Standard | 600V AC | 3 | 250A, JG | 600V AC | Three | ABC | 14 AWG | €3,713.25 | |

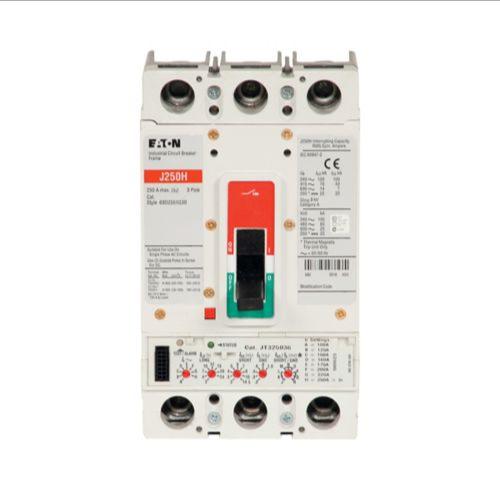

| JGH3100FAG | Standard | 600V AC/250V DC | 3 | 250A, JG | 600V AC | Three | ABC | 14 AWG | €7,063.92 | |
| JGH3150FAG | Standard | 600V AC | 3 | 250A, JG | 600V AC | Three | ABC | 14 AWG | €2,869.58 | |
| JGH3200FAG | Standard | 600V AC | 3 | 250A, JG | 600V AC | Three | ABC | 14 AWG | €8,235.36 |
