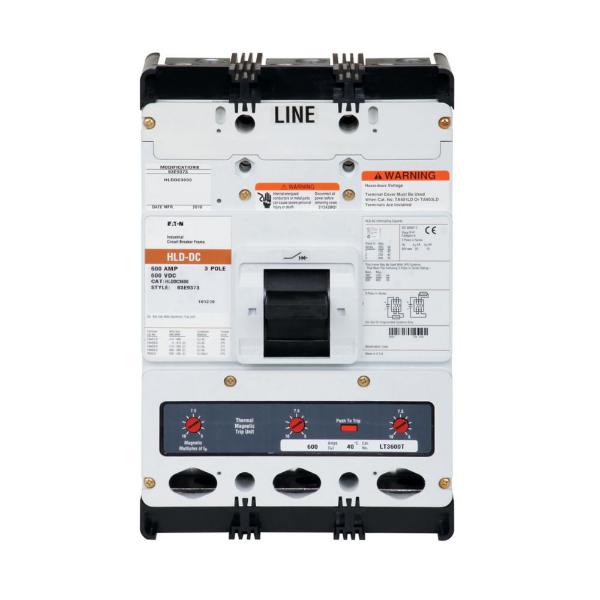

EATON HLDDC3600A13M01S42 Molded Case Circuit Breaker, 600A, 600 Vac, 600 Vdc, 12-24 Vac/Dc Rear W/ Left Pigtail
Get it by Thursday, Dec 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Amperage Rating | 600A |
| Auxiliary Switch | 2A-2B Rear With Right Pigtail |
| Circuit Breaker Frame Type | Complete Breaker |
| Circuit Breaker Type | HLD |
| Class | V DC |
| Frame | L |
| Height | 8 1/4" |
| Interrupt Rating | 50 kAIC at 250V DC, 35 kAIC at 600V AC |
| Length | 8 1/4" |
| Mounting Hardware | Single-Pole Imperial Mounting Base |
| Number Of Poles | 3 |
| Terminals | Line And Load |
| Trip Type | Fixed Thermal, Fixed Magnetic |
| Voltage | 600V AC/DC |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 8 1/4" |
Shipping Info:
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 20.96 |
| Ship length (cm) | 20.96 |
| Ship width (cm) | 20.96 |
| Country of Origin | US |
Product Variants
| Model | Number Of Poles | Voltage | Circuit Breaker Type | Price | |
|---|---|---|---|---|---|

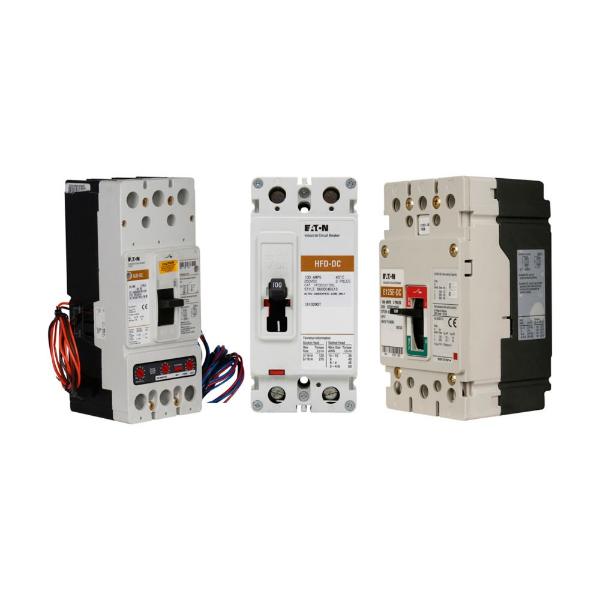

| HLDDC20800 | 2 | 250V DC | HLD | €39,841.71 | |
| HLDDC20700 | 2 | 250V DC | HLD | €39,841.71 | |
| HLDDC21000 | 2 | 250V DC | HLD | €39,841.71 | |
| HLDDC21200 | 2 | 250V DC | HLD | €39,841.71 | |
| HLDDC20600 | 2 | 250V DC | HLD | - | RFQ
|
| HLDDC20900 | 2 | 250V DC | HLD | €39,841.71 |
