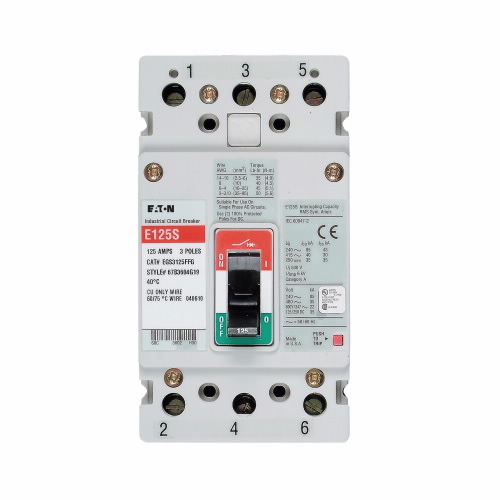

EATON EGS3125FFGA1 Molded Case Circuit Breaker, Eg-Frame, 3-Pole, 125A, 600Y/347 Vac, 1A-1B W/ Right Pigtail
Get it by Thursday, Dec 18
€2,068.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Amperage Rating | 125A |
| Auxiliary Switch | 1A-1B With Right Pigtail |
| Circuit Breaker Frame Type | Complete Breaker |
| Circuit Breaker Type | EG |
| Frame | EG |
| Frequency Rating | 50/60 Hz |
| Height | 3" |
| Interrupt Rating | 22 kAIC at 600Y/347V AC, 85 kAIC at 240V AC, 35 kAIC at 480V AC |
| Length | 2.99" |
| Mfr. Series | Series G |
| Number Of Poles | 3 |
| Terminals | Line And Load |
| Trip Type | Fixed Thermal, Fixed Magnetic |
| Type | Fixed |
| Voltage | 347/600V AC |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 7.59 |
| Ship width (cm) | 7.62 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Poles | Circuit Breaker Type | Voltage | Frame Size | Ac Voltage Rating | Phase | Phase Connection | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EGB3080FFG | 3 | EG | 347/600V AC | - | - | - | - | - | €1,077.27 | |
|
EGB3090FFG | 3 | - | 347/600V AC | - | - | - | - | - | €1,077.27 | |
|
EGB3100FFG | 3 | - | 347/600V AC | - | - | - | - | - | €994.41 | |
 |
EGB3110FFG | 3 | EG | 347/600V AC | - | - | - | - | - | - | RFQ
|
 |
EGC3125FFG | 3 | EG | 347/600V AC | - | - | - | - | - | €1,775.55 | |
 |
EGH3015FFG | 3 | Standard | 347/600V AC | 125A, EG | 347/600V AC | Three | ABC | 14 AWG | €1,256.71 | |
|
EGH3020FFG | 3 | - | 347/600V AC | 125A, EG | 347/600V AC | Three | ABC | 14 AWG | €1,256.71 |
