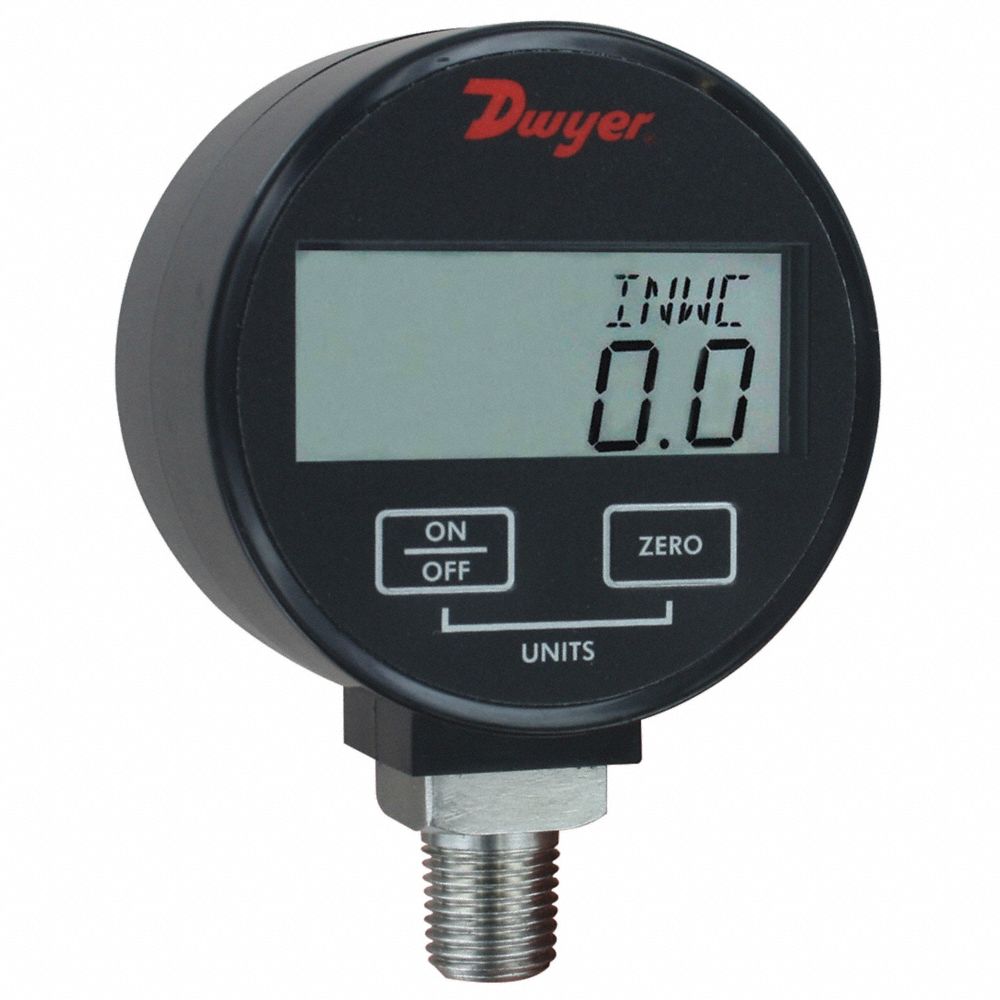

DWYER INSTRUMENTS DPGW-00 Digital Vacuum Gauge, -30 to 0 PSI, 3 Inch Dial, 1/4 Inch MNPT Connection
Get it by Wednesday, Dec 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€186.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Digital Vacuum Gauge |
| Accuracy | -1% to +1% |
| Adjustable Set Points | No |
| Application | OEM Applications, Process Industries |
| Auto Shutoff | 20 min. , Yes |
| Backlit Screen | No |
| Battery Included | Yes |
| Battery Type | 9V Battery |
| Blowout Safety Back | No |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Depth | 1 13/25" |
| Case Dia. | 2.62" |
| Case Material | Plastic |
| Case Shape | Round |
| Compatible Process Media | Liquids And Compatible Gases |
| Connection Location | Bottom |
| Digit Height | 0.43" |
| Digital Gauge Display Units | Bar, In Hg, Kpa, Mbar, Mm Hg, Psi |
| Display Range | -1.013 Bar to 0 Bar, -1.033 to 0 kg/sq. cm, -101.4 to 0 kPa, -1013 to 0 mbar, -1034 to 0 cm wc., -235.2 to 0 oz./sq. in., -29.93 to 0 in. hg, -33.94 to 0 ft. wc., -407.3 to 0 in. wc., -761 to 0 mm hg, 30 to 0 in. hg |
| Display Resolution | 0.01 psi |
| Display Screen Type | LCD |
| Display Type | LCD |
| Features | Automatic Shutoff, Zero Adjustment |
| Gauge Accuracy Grade | Not Graded |
| Gauge Application | For Liquids & Gases |
| Gauge Case Material | ABS |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 3" |
| Gauge Primary Range Units | Psi |
| Hazardous Location Rating | Not Rated |
| Includes | Alkaline Batteries |
| Includes Mounting Hardware | No |
| Includes Rubber Boot | No |
| Ip Rating, Nema Rating | Not Rated |
| Language | English |
| Low-battery Indicator | Yes |
| Manufacturer Warranty Length | 1 yr. |
| Memory Storage | No |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 3" |
| Non-sparking | No |
| Number Of Digits | 4 |
| Number Of Display Digits | 4 |
| Operating Range | 30" Hg to 0 psi |
| Panel-mountable | No |
| Peak Hold | No |
| Power Source | Battery |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | -30 in. hg to 0 in. hg |
| Pressure Range Type | Compound |
| Primary Display Range | -30 to 0 |
| Primary Display Units | in. hg |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | 30°F to 120°F |
| Product Datasheet | dwyer-instruments-dpgw-00.pdf |
| Resolution | Dependent On Range |
| Sensor Material | Silicone |
| Series | DPGW Series |
| Socket Material | Stainless Steel |
| Temp. Error | 0.05% |
| Weatherproof | No |
| Wetted Material | Stainless Steel, Silicon |
| Wetted Parts Material | Stainless Steel, Silicon |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Country of Origin | USA |
Documentation:
Product Variants
| Product | Model | Pressure Range Type | Pressure Range | Auto Shutoff | Digit Height | Display Resolution | Primary Display Range | Range | Operating Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DPGW-06 | Pressure | 0 psi to 30 psi | Yes | 0.425" | 0.01 psi | 0 to 30 | 0 psi to 30 psi | 0 psi to 30 psi | €207.40 | |
|
DPGW-08 | Pressure | 0 psi to 100 psi | Yes | 0.425" | 0.1 psi | 0 to 100 | 0 psi to 100 psi | 0 psi to 100 psi | €207.40 |
