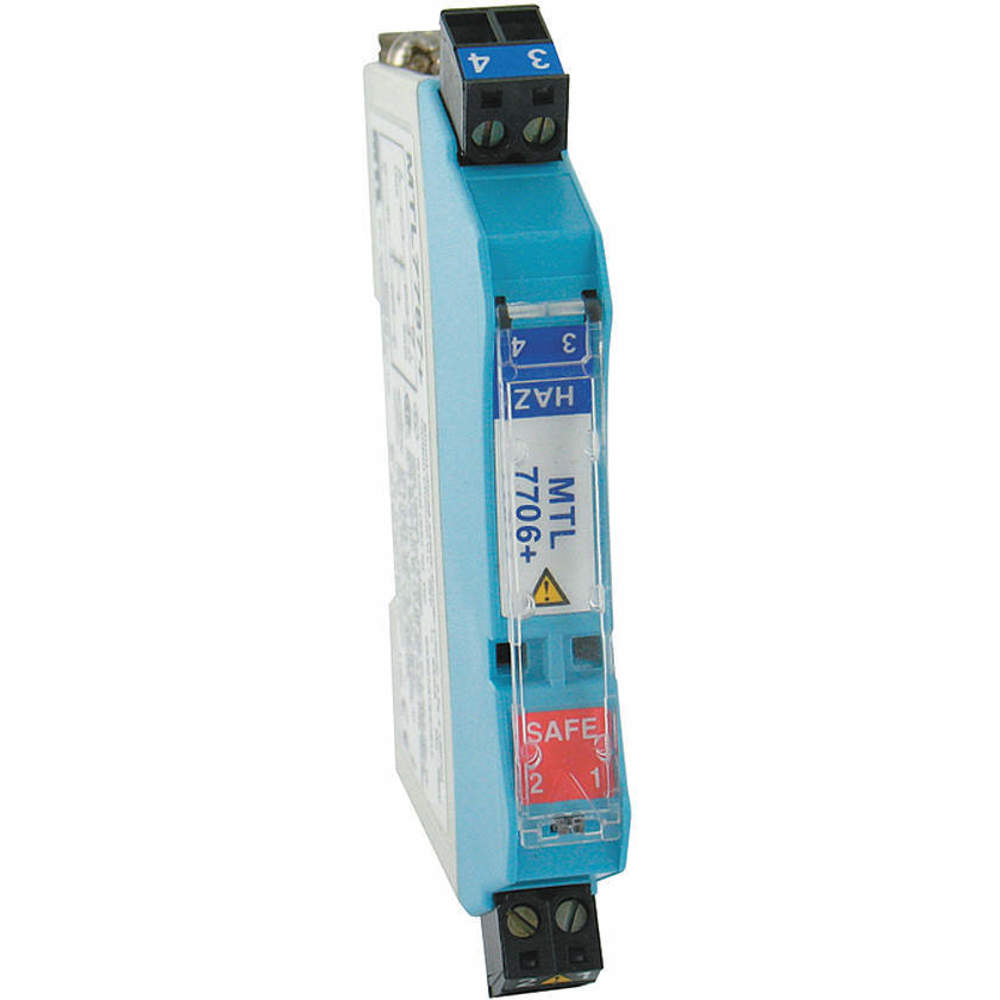

DWYER INSTRUMENTS MTL7706 Zener Barrier for Intrinsically Safe Transmitters
Ships within 2 days via
Payment
Product Specifications:
| Item | Zener Barrier |
| Accuracy | -2 µA to +2 µA |
| Compatible Brand And Series | Dwyer 608, Dwyer 637, Dwyer Is626, Dwyer Isdp, Dwyer Pblt2, Dwyer Pbltx, Dwyer Sblt2, Dwyer Sbltx |
| For Use With | 608 Intrinsically Safe Differential Pressure Transmitter, Is626 Intrinsically Safe Pressure Transmitter, Isdp Intrinsically Safe Differential Pressure Transmitter, Pblt2 And Pblt X Submersible Level Transmitter, Sblt2 And Sblt X Submersible Level Transmitter |
| Led Color | Green Power Indication |
| Load Resistance | 0 ohms to 500 ohms |
| Loop Resistance | Less Than 2 ohms |
| Operating Temperature Range | -4°F to +140°F |
| Overall Height | 1 1/5" |
| Overall Length | 4.156" |
| Overall Width | 3.546" |
| Power Requirement | 20-35V DC |
| Product Type | Zener Barrier For Dwyer Transmitters |
| Relative Humidity Range | 5% rh to 95% rh |
| Safe Area Output | 4-20 mA |
| Safety Rating | 28 Uv, 300 Ohm, 93 mA |
| Storage Temp. Range | -40 Deg. to 176 Deg. F |
| Storage Temp. Range | -40°F to +176°F |
| Temp. Range | -4°F to +140°F |
| Terminals | 0 sq. mm to 2.5 sq. mm |
| Transmitter Voltage | 16.2V @ 20 mA With 250 ohms Load, 11V @ 20 mA With 500 ohms Load |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 13.97 |
| HS code | 8536308000 |
| Country of Origin | IN |
Product Details:
Zener Barrier, Series MTL7706/7787, For Use With 608 Intrinsically Safe Differential Pressure Transmitter, IS626 Intrinsically Safe Pressure Transmitter, ISDP Intrinsically Safe Differential Pressure Transmitter, PBLT2 and PBLTX Submersible Level Transmitter, SBLT2 and SBLTX Submersible Level Transmitter, Compatible Brand and Series Dwyer 608, Dwyer 637, Dwyer IS626, Dwyer ISDP, Dwyer PBLT2, Dwyer PBLTX, Dwyer SBLT2, Dwyer SBLTX, Includes Wiring Instructions, Loop Resistance Less Than 2 ohm
