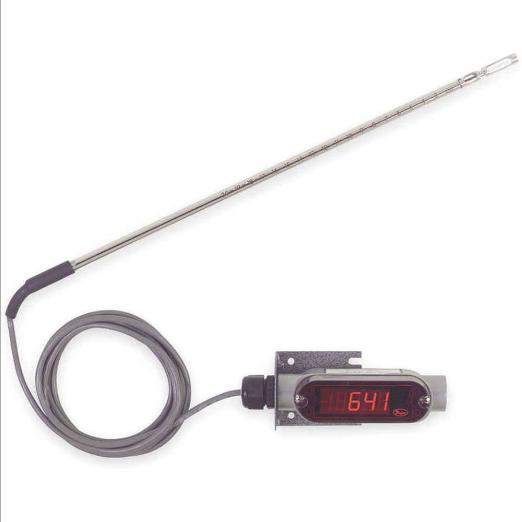

DWYER INSTRUMENTS 641RM-12 Air Velocity Transmitter, 0 To 15000 Fpm
Item: AA8UULModel: 641RM-12Cross Ref: 1AEW4
7 In Stock
Ships within 2 days via
10.00% off
€849.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Velocity Transmitter |
| Air Velocity Accuracy | -3% to +3% |
| Air Velocity Measured | 250-15000 FPM |
| Cable Length | 72" |
| Calibration Certificate | Not Included |
| Dia. | 5/16" |
| Display Digits | 4.5 |
| Display Size | 1/2" |
| Display Type | No Display |
| Includes | Instructions |
| Manufacturer Warranty Length | 1 yr. |
| Max. Current | 300 mA |
| Max. Output Signal | 20 mA |
| Max. Pressure | 100 psi |
| Max. Probe Length | 12" |
| Maximum Ac Voltage Required | 16V |
| Maximum Dc Voltage Required | 35V |
| Maximum Operating Temperature | 140°F |
| Maximum Temperature Measured | 212°F |
| Maximum Velocity Measured | 15000 FPM |
| Minimum Ac Voltage Required | 10V |
| Minimum Dc Voltage Required | 12V |
| Minimum Operating Temperature | 32°F |
| Minimum Output Signal | 4 mA |
| Minimum Temperature Measured | -40°F |
| Minimum Velocity Measured | 250 FPM |
| Mounting Orientation | Unit Not Position Sensitive Probe Must Be Aligned With Airflow |
| Operating Temp. | -40°F to +212°F |
| Operating Temperature | 32°F to 140°F |
| Output | 4-20 mA |
| Output Signal | 4-20 mA |
| Probe Dia. | 0.31" |
| Range | 250 FPM |
| Resolution | 1 FPM |
| Response Time | 1.5 sec. |
| Temp. Limit (deg. F) | +32°F to +140°F |
| Temp. Limit (deg. F) | +32.0°F to +140.0°F |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 6.86 |
| Ship length (cm) | 48.77 |
| Ship width (cm) | 14.22 |
| HS code | 9026802000 |
| Country of Origin | US |
Product Details:
Air Velocity Transmitter, Velocity Ranges 0 To 250 FPM, 0 To 15,000 FPM, Velocity Accuracy +/-3% (32 To 122 F), +/-4% (-40 To 32 F & 122 To 212 F), Output 4 To 20 mA DC, Power Required 12 To 35 VDC, 10 To 16 VAC, Response Time 1.5 Sec, Operating Temp Process: -40 To 212 F, Ambient: 32 To 140 F, Max Pressure 100 PSI, Lead Length 72 In, Probe Length 12 In, Dia 5/16 In, Includes Instructions
Product Variants
| Product | Model | Cable Length | Output Signal | Operating Temp. | Response Time | Temp. Limit (deg. F) | Range | Output | Resolution | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
641RM-12-LED | 6" | 4-20 mA | -40°F to +212°F | 1.5 sec. | +32°F to +140°F | 250 FPM | 4-20 mA | 1 FPM | €1,188.08 |
