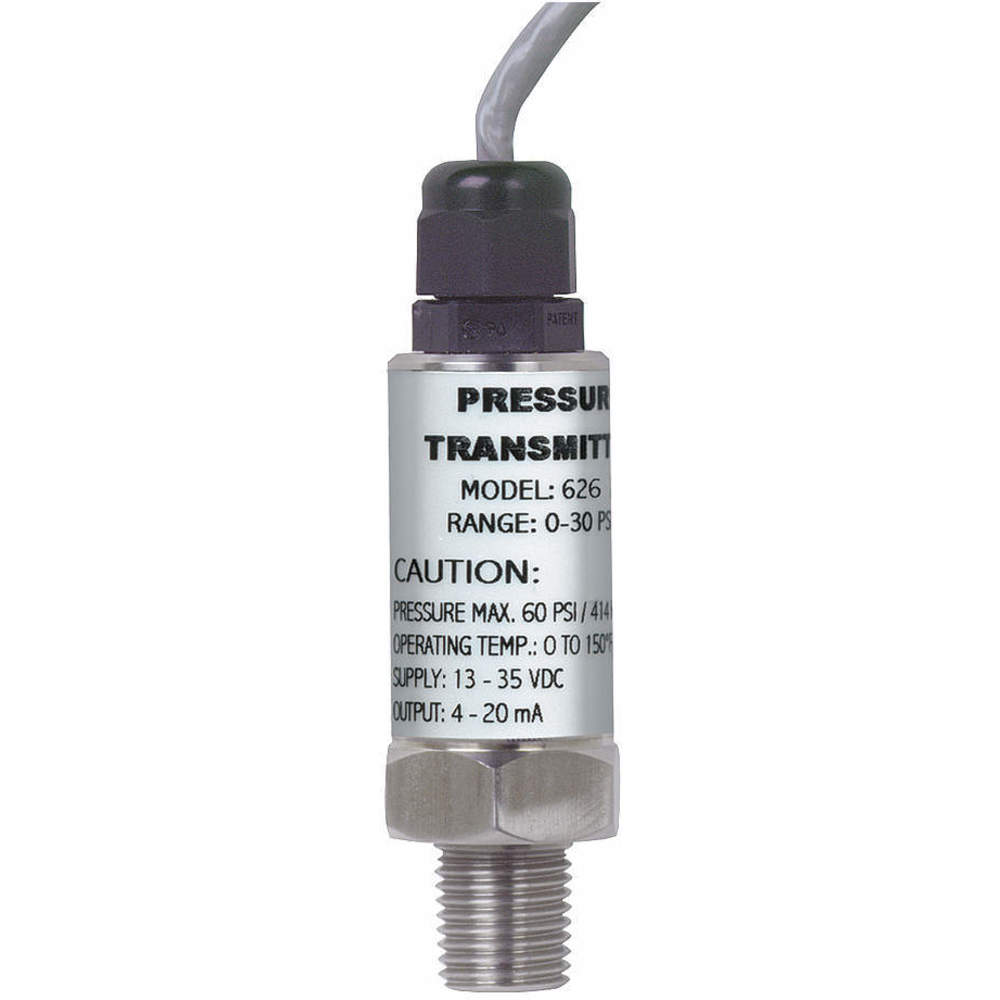

DWYER INSTRUMENTS 626-08-CB-P1-E5-S1 Pressure Transducer, 0 to 30 PSI, Conduit
Item: AC2CDKModel: 626-08-CB-P1-E5-S1Cross Ref: 2HLR3
7 In Stock
Ships within 2 days via
5.00% off
€505.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Transducer |
| Connection Size | 1/4" |
| Connection Type | MNPT |
| Electrical Connections | Screw Terminal |
| Explosion/fire Proof | No |
| Features | Protection In Harsh Environments, Shock And Vibration Resistance, Wide Range Of Models And Connections That Can Meet Pressure Measurement Specifications From Low To Very High |
| For Use With Media Type | Compressors, Hydraulics, Pumps |
| Full Scale Accuracy | -0.25% to +0.25% |
| Grade | Grade 316, Grade 316L |
| Housing Material | Cast Aluminum |
| Intrinsically Safe | No |
| Loop Resistance | 0 ohms to 1300 ohms |
| Material | Stainless Steel |
| Max. Loop Resistance | 0 ohms to 1250 ohms |
| Max. Operating Temp. | 200°F |
| Max. Pressure | 30 psi , 60 psi |
| Min. Operating Temp. | 0°F |
| Min. Pressure | 0 psi |
| Nist Traceable Certificate | No |
| No. Of Wires | 2 |
| Operating Range | 0 to 30 psi |
| Operating Temp. | 0°F to +200°F |
| Output | 4-20 mA |
| Output Amps | 4 to 20mA |
| Output Amps | 4-20 mA |
| Over Pressure | 300 psig |
| Overall Height | 3 1/2" |
| Overall Length | 1.281" |
| Overall Width | 5 1/2" |
| Power Required | 13-30V DC |
| Pressure | 0 psi to 30 psi |
| Pressure Units | Psig |
| Process Connection | 1/4" Male NPT |
| Process Connection Gender | Male |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Range | 0 psi to 30 psi |
| Response Time | 300 ms |
| Series | 626 Series |
| Thermal Error | -0.02% to +0.02% |
| Type Of Pressure | Gauge |
| Wetted Material | Stainless Steel |
| Wiring Entry | 1/2" FNPT Conduit Connection |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 17.02 |
| Ship width (cm) | 11.43 |
| HS code | 9026204000 |
| Country of Origin | US |
Product Variants
| Model | Max. Pressure | Housing Material | Process Connection Size | Over Pressure | Pressure | Process Connection | Range | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 626-07-CB-P1-E5-S1 | 15 psi | Cast Aluminum | 1/4" | 150 psig | 0 psi to 15 psi | 1/4" Male NPT | 0 psi to 15 psi | 5 1/2" | €531.69 | |
| 626-07-GH-P1-E1-S1 | 15 psi | Stainless Steel | 1/4" | 150 psig | 0 psi to 15 psi | 1/4" Male NPT | 0 psi to 15 psi | 5 1/2" | €478.41 | |
| 626-08-GH-P1-E1-S1 | 30 psi | Stainless Steel | 1/4" | 300 psig | 0 psi to 30 psi | 1/4" Male NPT | 0 psi to 30 psi | 5 1/2" | €478.41 | |
| 626-09-CB-P1-E5-S1 | 50 psi | Cast Aluminum | 1/4" | 300 psig | 0 psi to 50 psi | 1/4" Male NPT | 0 psi to 50 psi | 5 1/2" | €531.69 | |
| 626-09-GH-P1-E1-S1 | 50 psi | Stainless Steel | 1/4" | 300 psig | 0 psi to 50 psi | 1/4" Male NPT | 0 psi to 50 psi | 5 1/2" | €478.41 | |
| 626-10-CB-P1-E5-S1 | 100 psi | Cast Aluminum | 1/4" | 500 psig | 0 psi to 100 psi | 1/4" Male NPT | 0 psi to 100 psi | 5 1/2" | €531.69 | |
| 626-10-GH-P1-E1-S1 | 100 psi | Stainless Steel | 1/4" | 500 psig | 0 psi to 100 psi | 1/4" Male NPT | 0 psi to 100 psi | 5 1/2" | €478.41 |
