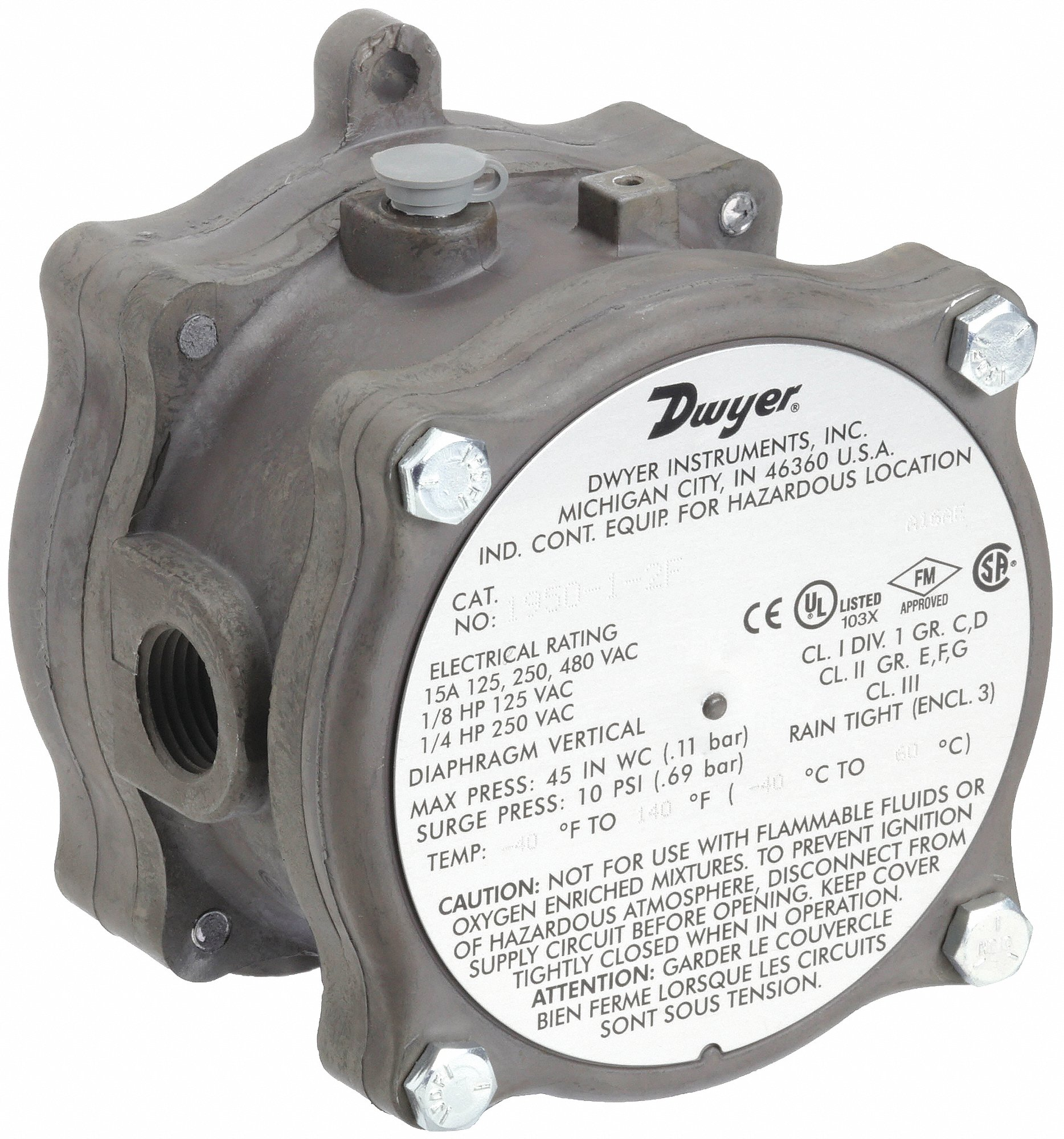

DWYER INSTRUMENTS 1950-1-2F Differential Pressure Switch, Adjustable, Auto Reset, Nema 3 Enclosure, SPDT, NPT
Get it by Wednesday, Aug 19
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€488.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Connection Size | 1/8 FNPT |
| Connection Type | 1NO, 1NC |
| Electrical Connection | Screw Terminals |
| Electrical Rating | 15 A @ 125, 250, 480 Vac, 60 Hz. Resistive 1/8 Hp @ 125 Vac, 1/4 Hp @ 250 Vac, 60 Hz. |
| Enclosure Type | Explosion Proof, Class I Groups C Group D Class II, Groups E, Group F Group G, Class III, ATEX |
| Family Series | Dwyer Instruments Pressure Switches, 1950 Series |
| For Use With | Air And Non-Combustible, Compatible Gases |
| Ip Rating | IP54 |
| Mounting Orientation | Vertical |
| Nema Rating | NEMA 3, NEMA 7, NEMA 9 |
| Port Size | 1/8" |
| Pressure | 10 psi |
| Primary Type | Pressure Switch |
| Process Connection | 1/8" FNPT |
| Series | 1950 Series |
| Set Point Adjustment | Screw Type On Top Of Housing. |
| Temp. | -40°F to +140°F |
| Temp. Limits | -40°F To 140°F (-40°C To 60°C), 0°F To 140°F (-17.8°C To 60°C)For 1950P-8, 15, 25, And 50 -30°F To 130°F (-34.4°C To 54.4°C) For 1950-02. |
| Type | Differential Switch |
Shipping Info:
| Ship weight (kg) | 1.46 |
