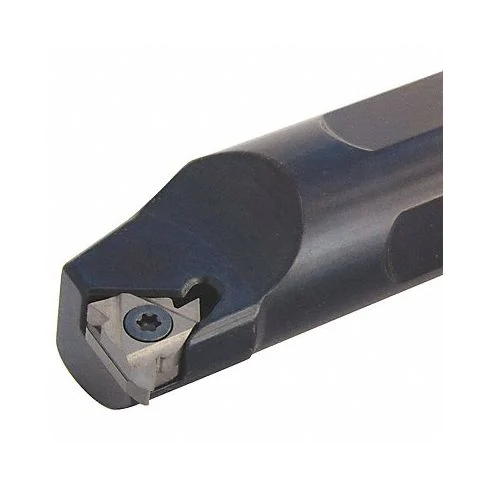

DORIAN MTJNR16-4D Turning Toolholder Tnmg Rh
Item: AD4MBHModel: MTJNR16-4DCross Ref: 41T777
7 In Stock
Ships within 2 days via
5.00% off
€117.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Toolholder |
| Ansi Code | Mtjnr164D |
| Ansi Number | MTJNR16-4D |
| Clamp | CL-9 |
| Clamp Screw | XNS-510 |
| Cutting Application | Turning |
| Cutting Direction | Right Hand |
| Cutting Height | 1" |
| Features | Hardened To 44 Hrc |
| Head Length | 1 1/4" |
| Inscribed Circle | 1/2" |
| Insert Clearance Angle | 0° |
| Insert Holding Type | Clamp And Lock Pin |
| Insert Inscribed Circle | 1/2" |
| Insert Screw | NL-46 |
| Insert Shape | Triangle |
| Insert Size | 432 |
| Insert Style | Tnm |
| Iso Number | MTJNR164D |
| Lead Angle | 3° |
| Mounting Style | Multi Lock |
| Overall Length | 6" |
| Rake | Negative |
| Rake Angle | 7 Degrees |
| Rake Angle | 7° |
| Shank | Square |
| Shank Height | 1" |
| Shank Material | Alloy, Steel |
| Shank Width | 1" |
| Shim | ITSN-433 |
| Side Cutting Edge Angle | -3° |
| Style | MTJNR16-4D |
| Toolholder Style | Mtjn |
| Type | TNMG |
| Width Offset | 1 1/4" |
Shipping Info:
| Ship weight (kg) | 0.79 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 3.81 |
| HS code | 7318190000 |
| Country of Origin | US |
Product Variants
| Model | Shank Width | Shank Height | Cutting Direction | Rake Angle | Style | Rake | Lead Angle | Clamp Screw | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MCKNR12-4B | 3/4" | 3/4" | Right Hand | 7° | MCKNR12-4B | Negative | 15° | XNS-48 | €135.92 | |
| MCKNR16-4C | 1" | 1" | Right Hand | 7° | MCKNR16-4C | Negative | 15° | XNS-48 | €150.62 | |
| MCKNR16-4D | 1" | 1" | Right Hand | 7° | MCKNR16-4D | Negative | 15° | XNS-48 | €150.62 | |
| MCKNL16-4D | 1" | 1" | Left Hand | 7° | MCKNL16-4D | Negative | 15° | XNS-48 | €150.62 | |
| MCKNR20-4D | 1 1/4" | 1 1/4" | Right Hand | 7° | MCKNR20-4D | Negative | 15° | XNS-48 | €159.20 | |
| MCKNL20-4D | 1 1/4" | 1 1/4" | Left Hand | 7° | MCKNL20-4D | Negative | 15° | XNS-48 | €165.44 | |
| MCKNR20-5D | 1 1/4" | 1 1/4" | Right Hand | 7° | MCKNR20-5D | Negative | 15° | XNS-59 | €198.55 |
