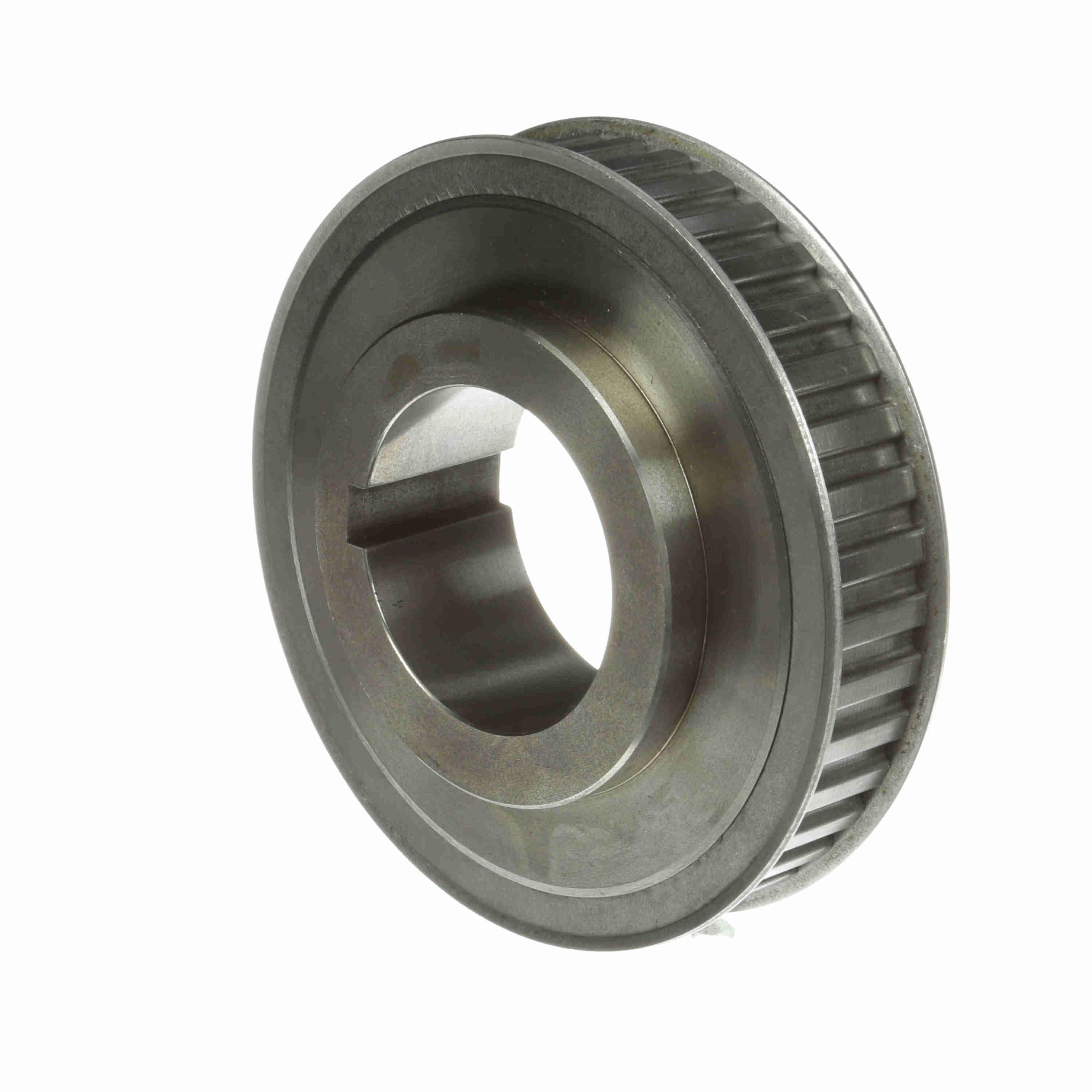

BROWNING 1056969 40HQ100 Gearbelt Pulley, Bushed Bore, Steel
Item: AX4AWVModel: 1056969Cross Ref: 40HQ100
7 In Stock
40
3/4" to 2 11/16"
Ships within 2 days via
€548.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 1/2" |
| Belt Style | H |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 1.313" |
| Flange | Yes |
| Flange Dia. | 6 9/16" |
| For Belt Width | 1" |
| For Use With | 1 Inch Width Type H100 Belt |
| Hub Dia. | 4 1/8" |
| Hub Projection | 3/4" |
| Keyway | Yes |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| Number Of Teeth | 40 |
| Other Features | Heavy, Split Taper Bushing, Type 7 |
| Outside Dia. | 6.312" |
| Overall Length | 2 25/32" |
| Pitch Dia. | 6.366" |
| System Of Measurement | Imperial |
| Type | Type 13 |
| Weight | 4.114 Kg |
Shipping Info:
| Ship weight (kg) | 3.92 |
| Ship height (cm) | 16.03 |
| Ship length (cm) | 7.06 |
| Ship width (cm) | 16.03 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Bore Dia. | Type | Hub Dia. | Hub Projection | Flange Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1056845 | 22 | 3.501" | 3.447" | 3/8" to 1 1/2" | Type 16 | 2 1/2" | 1/32" | 3 13/16" | €193.94 | |
 |
1056852 | 22 | 3.501" | 3.447" | 1/2" to 1 3/4" | Type 6 | 3" | 5/8" | 3 13/16" | €287.99 | |
 |
1056860 | 24 | 3.82" | 3.766" | 3/8" to 1 1/2" | Type 16 | 2 1/2" | 1/32" | 4 1/16" | €198.82 | |
 |
1056902 | 28 | 4.456" | 4.402" | 3/8" to 1 1/2" | Type 16 | 2 1/2" | 1/32" | 4 11/16" | €242.07 | |
 |
1056910 | 28 | 4.456" | 4.402" | 1/2" to 1 3/4" | Type 6 | 3" | 5/8" | 4 11/16" | €388.25 | |
 |
1056928 | 30 | 4.775" | 4.721" | 3/8" to 1 1/2" | Type 16 | 2 1/2" | 1/32" | 5" | €272.97 | |
 |
1056936 | 30 | 4.775" | 4.721" | 1/2" to 1 3/4" | Type 6 | 3" | 5/8" | 5" | €352.46 |
