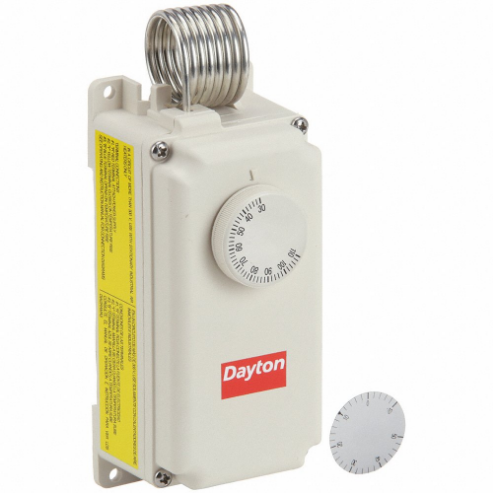

DAYTON 6EDY5 Line Voltage Thermostat, 24 - 600 VAC, 30 - 110 degrees F, SPDT
Item: AE8MXHModel: 6EDY5
7 In Stock
Ships within 2 days via
10.00% off
€67.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Volt Mechanical Tstat |
| Application | Heat Or Cool |
| Changeover Type | Automatic |
| Color | Gray |
| Compatible System Type | Fan Coil Units |
| Contact Rating Resistive @ 120v | 22A |
| Contact Rating Resistive @ 120v | 15A |
| Contact Rating Resistive @ 240v | 22A |
| Contact Rating Resistive @ 277v | 22A |
| Contact Type | Snap Action |
| Control Type | Exposed Dial |
| Cooling Full Load @ 120v | 16A |
| Cooling Full Load @ 240v | 8A |
| Cooling Locked Rotor @ 120v | 96A |
| Cooling Locked Rotor @ 240v | 48A |
| Dehumidification Control | No |
| Depth | 2 1/2" |
| Differential | 3.5°F |
| Differential Type | Fixed |
| Display Type | Analog |
| Enclosure Color | White |
| Enclosure Material | Plastic |
| Enclosure Nema Rating | 4X |
| Enclosure Type | Standard Enclosure |
| For Washdown Environment | Yes |
| Frequency | 50/60 Hz |
| Full Load Amps @ 120v | 16A |
| Full Load Amps @ 240v Ac | 8A |
| Full Load Amps @ 240vac | 8A |
| Height | 5 3/4" |
| Includes | Mounting Plate, Screws |
| Inductive Amps @ 120v | 16A |
| Inductive Amps @ 208v | 9.2A |
| Inductive Amps @ 240v | 8A |
| Input Voltage | 24-600V AC |
| Locked Rotor Amps @ 120v | 96A |
| Locked Rotor Amps @ 240v | 48A |
| Maximum Control Temperature | 110°F |
| Maximum Operating Temperature | 110°F |
| Minimum Control Temperature | 30°F |
| Minimum Operating Temperature | 30°F |
| Mounting Direction | Vertical |
| Number Of Cooling Stages | 1 |
| Number Of Heating Stages | 1 |
| Number Of Poles | 1 |
| Number Of Stages | 1 |
| Number Of Switches | 1 |
| Operating Temperature Range | 30°F to 110°F |
| Overall Depth | 2 1/2" |
| Overall Height | 6 3/4" |
| Overall Length | 5 1/2" |
| Overall Width | 2 1/2" |
| Phase | 1 |
| Pilot Duty Contacts | 125 VA |
| Pilot Duty Contacts (va) | 125VA |
| Pilot Duty Rating | 125 VA @ 24 to 600V AC |
| Programming Capability | Not Programmable |
| Remote Sensing Bulb Included | No |
| Remote Sensing Capability | No |
| Resistive Amps @ 208v Ac | 22A |
| Resistive Amps @ 208vac | 22A |
| Sensing Bulb Dia. | 3/16" |
| Sensor Dia. | 1/8" |
| Sensor Length | 36" |
| Sensor Location | Built-In |
| Shape | Rectangle |
| Standards | Cul Listed, Ul Listed |
| Switch Action | Open/Close On Rise |
| Switch Type | SPDT |
| Temp. Sensitivity | -3°F to +3°F |
| Temp. Sensitivity | +/- 3 Degrees F |
| Temperature Differential | 3.5°F |
| Temperature Limiting | No |
| Temperature Scale | Fahrenheit |
| Temperature Sensitivity | -3°F to +3°F |
| Temperature Settings Per Day | Manual Adjust |
| Thermostat Programmable | No |
| Thermostat Type | Line Voltage |
| Thread Npt | 1/2" Knockout |
| Voltage | 120-240V AC |
| Voltage Range | 24-600V AC |
| Width | 2 1/2" |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 17.15 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 6.35 |
| HS code | 9032100030 |
| Country of Origin | CN |
Product Details:
Dayton 6EDY5 line voltage thermostat is designed for HVAC (heating, ventilating and refrigeration) systems that require direct electrical power. The unit connects or disconnects the power going to the devices.
Features:
- It is equipped with a sensor bulb to enable temperature monitoring and a dust-proof enclosure for protection against water spray, high humidity, airborne contaminants & corrosive conditions.
- It is facilitated with a single-stage system that allows a single output (i.e. either on / off) and an analog display for conducting simple operations.
- This thermostat offers both vertical and horizontal mounting for user convenience.
- It is integrated with an easy-to-read dial and an adjusting knob to manually select the desired temperature between 30 and 120 degrees F.
Frequently Asked Questions:
Q. What is the advantage of NEMA 4X enclosures?
A. These rain-tight enclosures provide tight sealing against the ingress of moisture and debris. These enclosures are ideal for both indoor and outdoor use.
Q. What is an air-coil sensor?
A. Dayton 6EDY5 air coil sensor helps to monitor and regulate the ambient temperature in heating and ventilation applications.
Q. Will a line voltage thermostat work at low voltage?
A. No, line voltage thermostats do not work at low voltage because they are meant for directly heating HVAC appliances at 120 and 240V. They do not require a transformer to reduce the heavy voltage down to the applicable voltage rating, which is otherwise needed in low voltage thermostats.
Product Variants
| Product | Model | Compatible System Type | Application | Switch Type | Switch Action | Number Of Heating Stages | Height | Depth | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1UHH1 | Fan Coil Units | Heat Or Cool | SPDT | Open/Close On Rise | 1 | 5 3/4" | 2 1/2" | White | €226.74 | |
 |
1UHH2 | Fan Coil Units | Heat Or Cool | SPDT | Open/Close On Rise | 1 | 5 3/4" | 2 1/4" | Gray | €218.76 | |
|
1UHH4 | Fan Coil Units | Cool Only | SPST | Close On Rise | - | 5 3/4" | 2 1/4" | Gray | €158.20 | |
 |
2E815 | Gas Or Forced Air Furnaces | Heat Only | SPST | Open On Rise | 1 | 5 1/2" | 2.63" | Gray | €78.37 | |
 |
2NNR5 | Attic Fans, Fan Coil Units | Cool Only | SPST | Close On Rise | - | 4 1/2" | 2 1/2" | Gray | €105.49 | |
 |
2NNR6 | Attic Fans, Fan Coil Units | Heat And Cool | SPDT | Open/Close On Rise | 1 | 4 1/2" | 2 1/2" | Beige | €138.73 | |
|
2NNR7 | Attic Fans, Fan Coil Units | Heat And Cool | SPDT | Open/Close On Rise | 1 | 4 1/2" | 2 1/8" | Gray | €451.58 |
