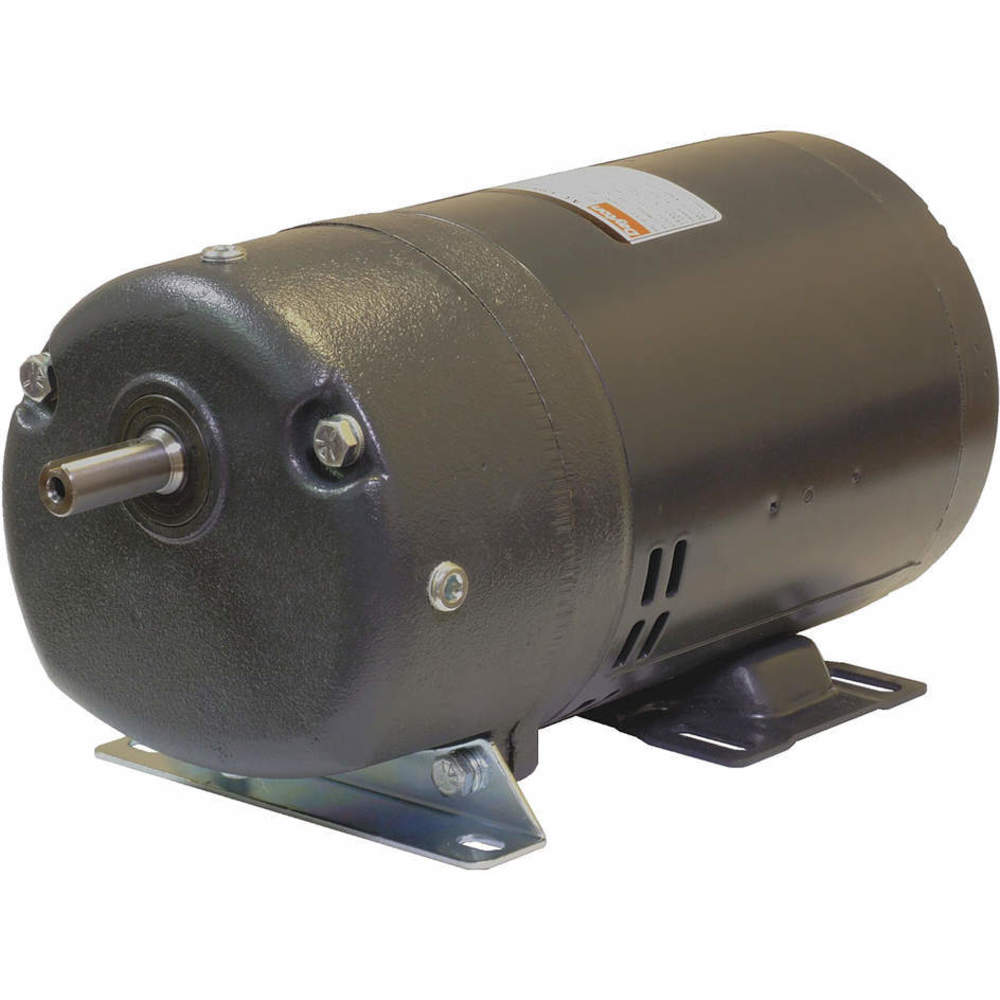

DAYTON 4FDZ2 Ac Gearmotor 157 Rpm Ofc 115vac
157 RPM
33/100 hp
Get it by Tuesday, Dec 23
10.00% off
€1,914.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Amps | 5.9A |
| Application | Conveyors, Feeders, Mixers, Pumps |
| Bearing Type | Ball , Ball On Case, Ball On Motor |
| Capacitor Required | Yes |
| Dimension A | 6 1/2" |
| Dimension C | 13.65" |
| Dimension E | 2 3/4" |
| Dimension U | 5/8" |
| Enclosure Type | Open Fan Cooled |
| Frame | 56Y |
| Full Load Amps | 5.9A |
| Gear Case Material | Cast Iron |
| Gear Material | Steel |
| Gear Ratio | 11:1 |
| Gear Type | Steel |
| Gearmotor Enclosure | Open Fan Cooled |
| Gearmotor Mounting Position | Horizontal |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Gears | Steel |
| Housing Material | Cast Iron |
| Input Hp | 33/100 hp |
| Keyway Depth | 1 1/8" |
| Keyway Size | 3/16" x 1 1/8" |
| Keyway Type | Woodruff |
| Keyway Width | 3/16" |
| Length Less Shaft | 12 1/2" |
| Lubrication | SAE #90, Type 5EP, ISO 220 Grade Gear Oil |
| Max. Ambient Temp. | 40°C |
| Maximum Torque | 125 lbs.-in. |
| Motor Thermal Protection | None |
| Mount Hole Center-to-center Length | 7.69" |
| Mount Hole Center-to-center Width | 5 1/2" |
| Mount Type | Horizontal |
| Mounting | Horizontal |
| Mounting Orientation | Horizontal |
| Nameplate Rpm | 157 RPM |
| Nameplate Rpm Range | 151-200 RPM |
| No. Of Output Shafts | 1 |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115V AC |
| Output Shaft Dia. | 5/8" |
| Output Shaft Height | 4.63" |
| Output Shaft Length | 1 5/8" |
| Overall Height | 6.83" |
| Overall Length | 13.65" |
| Overall Width | 6 1/2" |
| Overhung Load | 245 lbs. |
| Phase | 1 |
| Rotation | Reversible |
| Rpm Range | 151-200 RPM |
| Seals | Oil Seals On Output Shaft |
| Shaft | Single Output |
| Shaft Dia. | 5/8" |
| Shaft Orientation | Parallel |
| Thermal Protection | None |
| Type | Split Phase |
Shipping Info:
| Ship weight (kg) | 18.99 |
| Ship height (cm) | 17.35 |
| Ship length (cm) | 34.67 |
| Ship width (cm) | 16.51 |
| HS code | 8501406020 |
| Country of Origin | CN |
Product Variants
| Model | Nameplate Rpm Range | Mounting Orientation | Gear Ratio | Operating Voltage | Motor Enclosure | Overhung Load Capacity | Rotation | Base To Center Of Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1LPN9 | 101-150 RPM | Any Angle | 14:1 | 115V AC | Open Dripproof | 150 lbs.-ft. | CW/CCW | 3" | €1,164.74 | |
| 1LPP1 | 76-100 RPM | Any Angle | 19:1 | 115V AC | Open Dripproof | 150 lbs.-ft. | CW/CCW | 3" | €1,168.08 | |
| 1LPP2 | 51-75 RPM | Any Angle | 29:1 | 115V AC | Open Dripproof | 190 lbs.-ft. | CW/CCW | 3" | €1,175.25 | |
| 1LPP3 | 31-50 RPM | Any Angle | 43:1 | 115V AC | Open Dripproof | 190 lbs.-ft. | - | 3" | €1,170.73 | |
| 1LPP4 | 16-30 RPM | Any Angle | 57:1 | 115V AC | Open Dripproof | 190 lbs.-ft. | CW/CCW | 3" | €1,123.62 | |
| 1LPP5 | 16-30 RPM | Any Angle | 97:1 | 115V AC | Open Dripproof | 300 lbs.-ft. | CW/CCW | 3" | €1,120.56 | |
| 1LPP6 | 0-15 RPM | Any Angle | 144:1 | 115V AC | Open Dripproof | 300 lbs.-ft. | CW/CCW | 3" | €1,124.74 |
