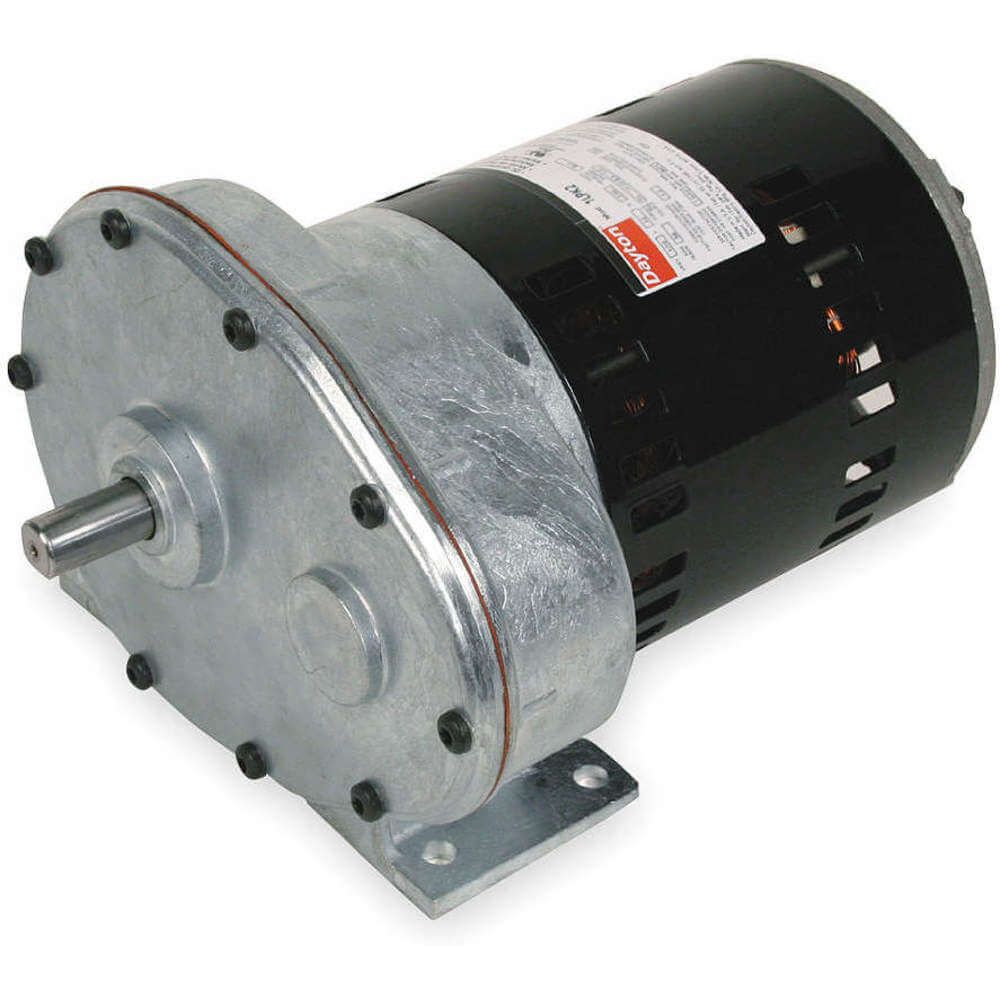

DAYTON 1LPU3 Ac Gearmotor 92 Rpm Odp 115v
92 RPM
1/2 hp
Get it by Tuesday, Dec 23
10.00% off
€1,517.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Amps | 8.3A |
| Base To Center Of Shaft | 3 3/4" |
| Bearing Type | Ball on Case and Motor |
| Enclosure Type | Open Dripproof |
| Finish | Unpainted |
| Frame | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 8.3A |
| Gear Case Material | Die Cast Zinc |
| Gear Material | Cut Steel, Phenolic |
| Gear Ratio | 19:1 |
| Gearmotor Enclosure | Open Dripproof |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Gears | Cut Steel, Phenolic |
| Housing Material | Die Cast Zinc |
| Housing Material Finish | Unpainted |
| Input Hp | 1/2 hp |
| Inverter Rated | No |
| Inverter Rating | 191 |
| Keyway Depth | 5/8" |
| Keyway Size | #605 |
| Keyway Type | Woodruff |
| Keyway Width | 3/16" |
| Length Less Shaft | 10" |
| Lubrication | Grease Filled |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Torque | 287 lbs.-in. |
| Motor Enclosure | Open Dripproof |
| Motor Insulation Class | Class B |
| Motor Thermal Protection | None |
| Motor Type | Split-Phase |
| Mount Hole Center-to-center Length | 2 1/2" |
| Mount Hole Center-to-center Width | 7" |
| Mount Type | Any Position |
| Mounting | All Position |
| Mounting Orientation | Any Angle |
| Nameplate Rpm | 92 RPM |
| Nameplate Rpm Range | 76-100 RPM |
| No. Of Output Shafts | 1 |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115V AC |
| Output Shaft Dia. | 3/4" |
| Output Shaft Diameter | 3/4" |
| Output Shaft Height | 3 3/4" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 7 11/25" |
| Overall Width | 8 1/4" |
| Overhung Load | 400 lbs. |
| Overhung Load Capacity | 400 lbs.-ft. |
| Phase | 1 |
| Reversible Shaft Output | No |
| Rotation | CW/CCW |
| Rpm Range | 76-100 RPM |
| Seal Type | Lip Type on Input, Output Shaft |
| Seals | Lip Type On Input, Output Shaft |
| Shaft | Single Output |
| Shaft Dia. | 3/4" |
| Shaft Orientation | Parallel |
| Thermal Protection | No |
| Type | Split Phase |
Shipping Info:
| Ship weight (kg) | 14.63 |
| Ship height (cm) | 22.61 |
| Ship length (cm) | 49.28 |
| Ship width (cm) | 26.42 |
| HS code | 8501404020 |
| Country of Origin | US |
Product Variants
| Model | Nameplate Rpm Range | Mounting Orientation | Gear Ratio | Operating Voltage | Motor Enclosure | Overhung Load Capacity | Rotation | Base To Center Of Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1LPN9 | 101-150 RPM | Any Angle | 14:1 | 115V AC | Open Dripproof | 150 lbs.-ft. | CW/CCW | 3" | €1,164.74 | |
| 1LPP1 | 76-100 RPM | Any Angle | 19:1 | 115V AC | Open Dripproof | 150 lbs.-ft. | CW/CCW | 3" | €1,168.08 | |
| 1LPP2 | 51-75 RPM | Any Angle | 29:1 | 115V AC | Open Dripproof | 190 lbs.-ft. | CW/CCW | 3" | €1,175.25 | |
| 1LPP3 | 31-50 RPM | Any Angle | 43:1 | 115V AC | Open Dripproof | 190 lbs.-ft. | - | 3" | €1,170.73 | |
| 1LPP4 | 16-30 RPM | Any Angle | 57:1 | 115V AC | Open Dripproof | 190 lbs.-ft. | CW/CCW | 3" | €1,123.62 | |
| 1LPP5 | 16-30 RPM | Any Angle | 97:1 | 115V AC | Open Dripproof | 300 lbs.-ft. | CW/CCW | 3" | €1,120.56 | |
| 1LPP6 | 0-15 RPM | Any Angle | 144:1 | 115V AC | Open Dripproof | 300 lbs.-ft. | CW/CCW | 3" | €1,124.74 |
