DAYTON 1LPP2 Ac Gearmotor 60 Rpm Odp 115v | AB2EXP

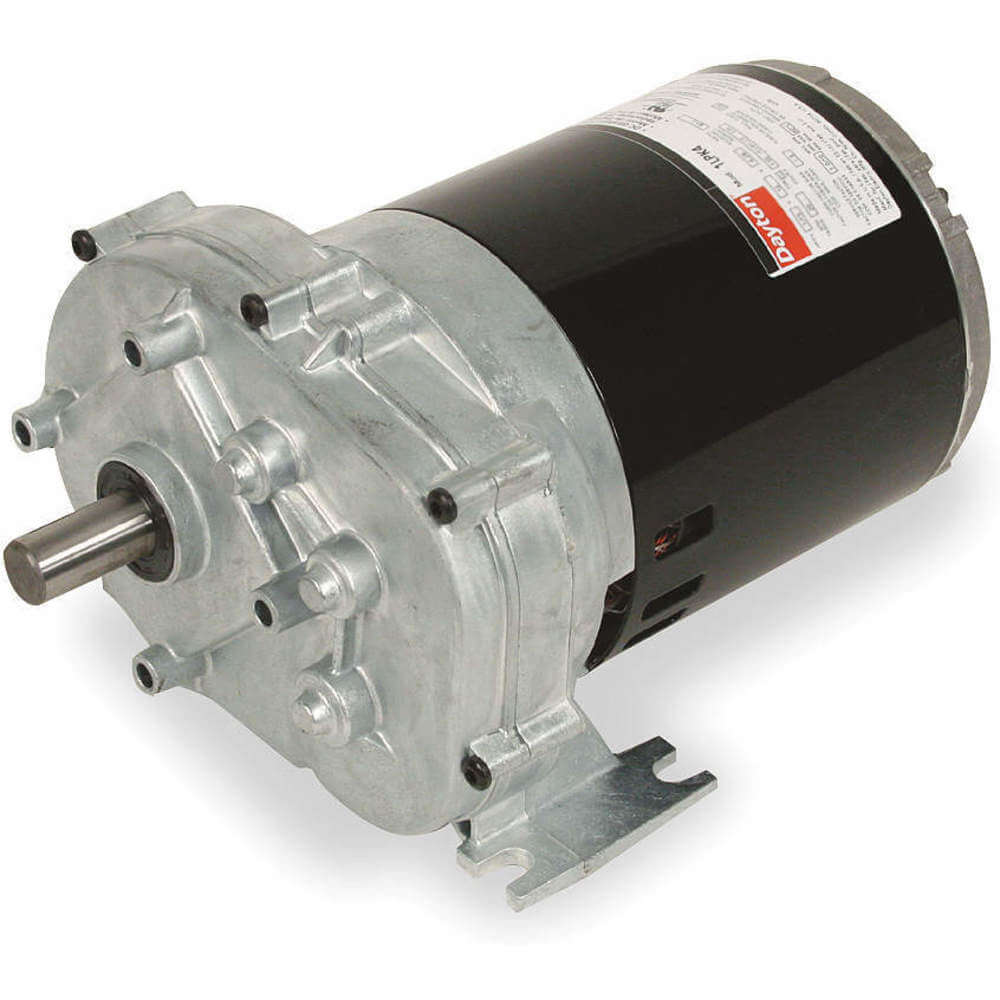

DAYTON 1LPP2 Ac Gearmotor 60 Rpm Odp 115v

Item: AB2EXPModel: 1LPP2
Check Availability
In Stock

Get it by Friday, Dec 19

€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€1,175.25
10.00% off
€1,057.73 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item AC Gearmotor
Agma Gear Class Class 9
Amps 3.9A
Base To Center Of Shaft 3"
Bearing Type Ball On Motor, Porous Bronze Sleeve On Case
Enclosure Type Open Dripproof
Finish Unpainted
Frame 48
Frequency 60 Hz
Full Load Amps 3.9A
Gear Case Material Die Cast Zinc
Gear Material Phenolic, Steel
Gear Ratio 29:1
Gear Type Helical, Spur
Gearmotor Enclosure Open Dripproof
Gearmotor Mounting Position All Angle
Gearmotor Shaft Orientation Parallel
Gearmotor Shaft Type Single
Gears Phenolic, Steel
Housing Material Die Cast Zinc
Housing Material Finish Motor Painted, Gearcase Unpainted
Input Hp 1/4 hp
Inverter Rated No
Inverter Rating 291
Keyway Depth 5/8"
Keyway Size #605
Keyway Type Woodruff
Keyway Width 3/16"
Length Less Shaft 9.28"
Lubrication Grease Filled
Max. Ambient Temp. 40°C
Maximum Ambient Temperature 104°F
Maximum Torque 200 lbs.-in.
Motor Duty Class Continuous
Motor Enclosure Open Dripproof
Motor Insulation Class Class B
Motor Thermal Protection None
Motor Type Split-Phase
Mount Hole Center-to-center Length 2.38"
Mount Hole Center-to-center Width 7.13"
Mount Type Any Position
Mounting All Position
Mounting Orientation Any Angle
Nameplate Rpm 60 RPM
Nameplate Rpm Range 51-75 RPM
No. Of Output Shafts 1
Number Of Output Shafts 1
Operating Voltage 115V AC
Output Shaft Dia. 3/4"
Output Shaft Diameter 3/4"
Output Shaft Height 3"
Output Shaft Length 1 1/2"
Overall Height 6"
Overall Width 8.13"
Overhung Load 190 lbs.
Overhung Load Capacity 190 lbs.-ft.
Phase 1
Reversible Shaft Output No
Rotation CW/CCW
Rpm Range 51-75 RPM
Seal Type Lip Type on Input, Output Shaft
Seals Lip Type On Input, Output Shaft
Shaft Single Output
Shaft Dia. 3/4"
Shaft Orientation Parallel
Thermal Protection No
Type Split Phase

Shipping Info:

Ship weight (kg) 9
Ship height (cm)22.86
Ship length (cm)48.51
Ship width (cm)24.89
HS code8501404020
Country of OriginUS

Product Variants

ProductModelNameplate Rpm RangeMounting OrientationGear RatioOperating VoltageMotor EnclosureOverhung Load CapacityRotationBase To Center Of ShaftPrice
DAYTON 1LPN9 Ac Gearmotor 120 Rpm Odp 115v | AB2EXM 1LPN9101-150 RPMAny Angle14:1115V ACOpen Dripproof150 lbs.-ft.CW/CCW3"€1,164.74
DAYTON 1LPP1 Ac Gearmotor 90 Rpm Odp 115v | AB2EXN 1LPP176-100 RPMAny Angle19:1115V ACOpen Dripproof150 lbs.-ft.CW/CCW3"€1,168.08
DAYTON 1LPP3 Ac Gearmotor 40 Rpm Odp 115v | AB2EXQ 1LPP331-50 RPMAny Angle43:1115V ACOpen Dripproof190 lbs.-ft.-3"€1,170.73
DAYTON 1LPP4 Ac Gearmotor 30 Rpm Odp 115v | AB2EXR 1LPP416-30 RPMAny Angle57:1115V ACOpen Dripproof190 lbs.-ft.CW/CCW3"€1,123.62
DAYTON 1LPP5 Ac Gearmotor 18 Rpm Odp 115v | AB2EXT 1LPP516-30 RPMAny Angle97:1115V ACOpen Dripproof300 lbs.-ft.CW/CCW3"€1,120.56
DAYTON 1LPP6 Ac Gearmotor 12 Rpm Odp 115v | AB2EXU 1LPP60-15 RPMAny Angle144:1115V ACOpen Dripproof300 lbs.-ft.CW/CCW3"€1,124.74
DAYTON 1LPP7 Ac Gearmotor 6 Rpm Odp 115v | AB2EXV 1LPP70-15 RPMAny Angle286:1115V ACOpen Dripproof300 lbs.-ft.CW/CCW3"€1,192.47
