DAYTON 3TP96 Lever Chain Hoist 3300 Lb. 20 Feet Lift
Get it by Wednesday, Dec 24
10.00% off
€651.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Lever Chain Hoist |
| Body Depth | 6 1/2" |
| Body Finish | Chrome Plated |
| Body Material | Steel |
| Body Width | 5 9/16" |
| Brake Type | Double Disc Brake, Weston Style |
| Chain | Hardened Steel |
| Chain Finish | Black Tempered |
| Chain Grade | Grade 100 |
| Chain Length | 21 ft. |
| Chain Material | Alloy Steel |
| Color | Silver |
| Features | Dual-Stage Reduction Gearing, The Top And Bottom Hooks Rotate 360° And Open Slowly Without Fracturing Under Overloads |
| Finish | Chrome Plated |
| For Outdoor Use | Yes |
| Head Room | 14 3/8" |
| Hook Opening | 1 7/64" |
| Included Components | Safety Latch Hooks |
| Includes | Safety Latch Hooks |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Lever Length | 16-1/2" |
| Lever Length | 16 3/8" |
| Lift Length | 20 ft. |
| Lifting Capacity | 3000 lbs. |
| Lifting Hook Material | Alloy Steel |
| Lifting Hook Opening Width | 1 1/8" |
| Lifting Hook Type | Hook With Safety Latch |
| Load Capacity | 3300 lbs. |
| Manufacturers Warranty Length | 1 yr. |
| Material | Nickel, Zinc |
| Min. Between Hooks | 14 3/8" |
| Minimum Retracted Length | 14 3/8" |
| Mounting Type | Hook Mounted - No Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 1 |
| Operating Position | Vertical |
| Overload Protection | No |
| Overload Protection Included | No |
| Power Source | Lever |
| Pull Force To Lift Rated Load | 46 lbs. |
| Pull To Lift Rated Load | 73 lbs. |
| Pull To Lift Rated Load | 73 lb. |
| Reeving | 1 |
| Tonnage - Lifting Capacity | 1.5 ton. |
Shipping Info:
| Ship weight (kg) | 16.2 |
| Ship height (cm) | 17.53 |
| Ship length (cm) | 52.32 |
| Ship width (cm) | 20.32 |
| HS code | 8425190000 |
| Country of Origin | CN |
Product Variants
| Model | Hook Opening | Overload Protection Included | Lever Length | Body Material | Body Depth | Body Width | Color | Lift Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3TP92 | 29/32" | No | 10 7/16" | Steel | 5 13/16" | 4 3/4" | Silver | 10 ft. | €650.41 | |
| 3TP93 | 29/32" | No | 10 7/16" | Steel | 5 13/16" | 4 3/4" | Silver | 20 ft. | €497.12 | |
| 3TP95 | 1 7/64" | No | 16 3/8" | Steel | 6 1/2" | 5 9/16" | Silver | 10 ft. | €573.09 | |
| 3TP98 | 1 29/64" | No | 16 1/2" | Steel | 7 11/16" | 7" | Silver | 10 ft. | €873.60 | |
| 3TP99 | 1 29/64" | No | 16 1/2" | Steel | 7 11/16" | 7" | Silver | 20 ft. | €948.11 | |

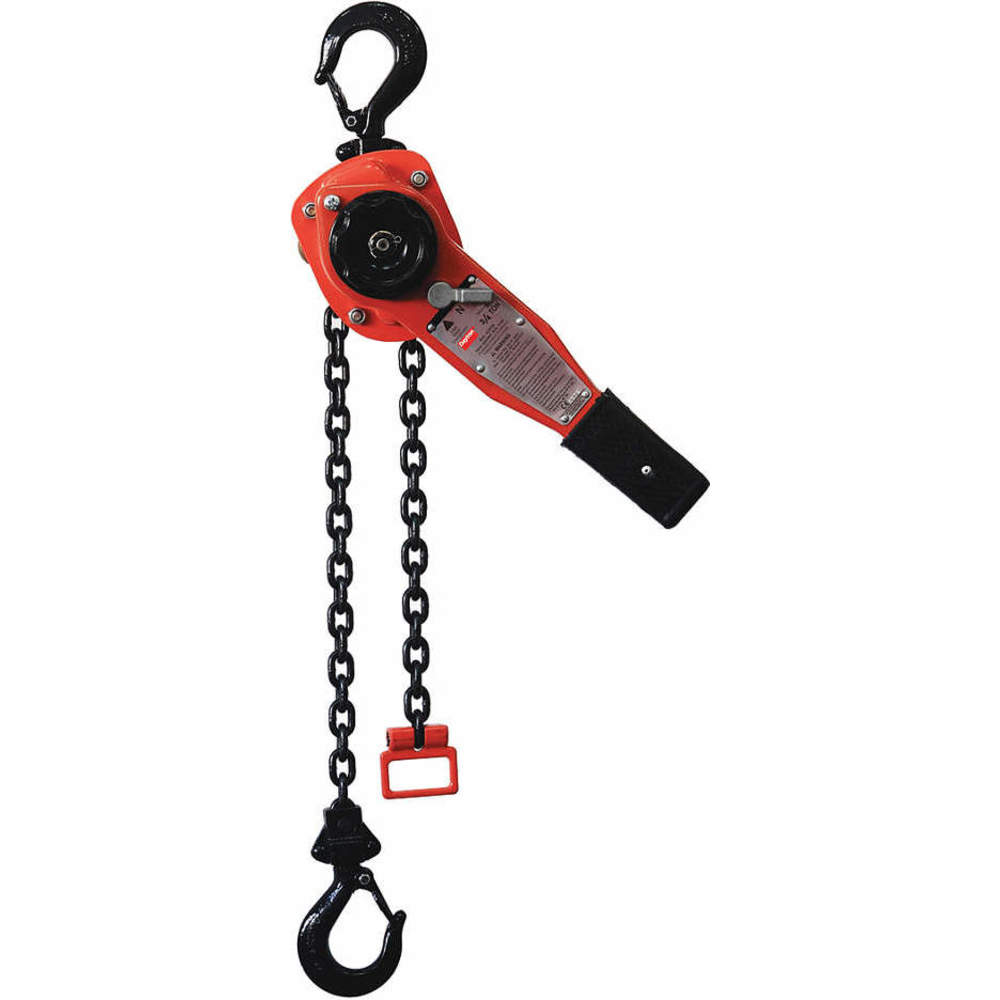

| 4ZX44 | 29/32" | No | 12 3/16" | Steel | 5 15/16" | 5 5/16" | Red | 10 ft. | €786.05 | |
| 4ZX45 | 29/32" | No | 12 3/16" | Steel | 5 15/16" | 5 5/16" | Red | 20 ft. | €709.62 |
