EATON 50 Series Polarized Reflex Sensors


Eaton 50 Series polarised reflex sensors are photoelectric sensors that use a polarised retroreflective mode of operation to detect an object. They are designed to detect objects over a wide range of distances and are suitable for industrial automation.

Filter
EATON 1451E-8504A

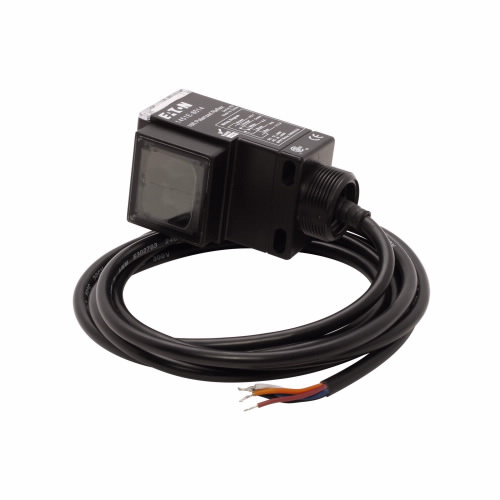

EATON 1451E-8514B
EATON 1451E-6503C
EATON 1451E-8513D
EATON 1451E-8534E
EATON 1451E-6537F
StyleModelHeightInput VoltageMax. AmpsContact ConfigurationContact RatingTime DelayCord LengthTypePrice
A
1451E-8504		1.81"24-240V AC/12-240V DC3ASPDT Form C Relay3A at 240V ACTime Delayed--€326.69
B
1451E-8514		1.81"24-240V AC/12-240V DC3ASPDT Form C Relay3A at 240V ACTime Delayed79.2 ft.Photoelectric Sensor-
RFQ
C
1451E-6503		1.81"24-240V AC/12-240V DC300 mASPNO SSR300 MA at 240V AC/DC---€288.00
D
1451E-8513		1.81"24-240V AC/12-240V DC300 mASPNO SSR300 MA at 240V AC/DCTime Delayed79.2 ft.Photoelectric Sensor€309.98
C
1451E-6504		1.81"24-240V AC/12-240V DC3ASPDT Form C Relay3A at 240V AC---€275.40
E
1451E-8534		2 1/4"12-240V AC/24-240V DC3ASPDT Form C Relay3A at 240V ACYes6 ft.-€297.68
E
1451E-8547		2"10-40V DC250 mANPN And PNP Open Collector250 MA at 40V DCYes--€544.26
E
1451EF1617		3.46"10-40V DC250 mANPN And PNP Open Collector250 MA at 40V DC-192 ft.-€252.88
E
1451EF1014		3.46"12-240V AC/24-240V DC3ASPDT Form C Relay3A at 240V AC-120 ft.-€227.24
E
1451E-8517		3.46"10-40V DC250 mANPN And PNP Open Collector250 MA at 40V DCYes79.2 ft.-€544.26
E
1451E-8533		3.46"12-240V AC/24-240V DC300 mAIsolated Solid State Relay300 MA at 240V AC/V DCYes6 ft.-€578.28
E
1451E-8537		3.46"10-40V DC250 mANPN And PNP Open Collector250 MA at 40V DCYes6 ft.-€544.26
E
1451E-6533		3.46"12-240V AC/24-240V DC300 mAIsolated Solid State Relay300 MA at 240V AC/V DC-6 ft.-€447.88
F
1451E-6537		3.46"10-40V DC250 mANPN And PNP Open Collector250 MA at 40V DC-6 ft.Reflex Sensor€364.43
E
1451E-8507		4 4/25"10-40V DC250 mANPN And PNP Open Collector250 MA at 40V DCYes--€544.26
E
1451E-6507		4 4/25"10-40V DC250 mANPN And PNP Open Collector250 MA at 40V DC---€266.40
A
1451E-8503		4 4/25"12-240V AC/24-240V DC300 mAIsolated Solid State Relay300 MA at 240V AC/V DCYes--€328.02
E
1451E-8543		4.01"12-240V AC/24-240V DC300 mAIsolated Solid State Relay300 MA at 240V AC/V DCYes--€578.28

Working Mechanism

  • The light-emitting diode of Eaton 50 Series polarised reflex sensors emits a beam of light, typically infrared. The sensor receives a return beam from the object being sensed.
  • The reflected beam is captured by the sensor's phototransistor detector, which then transforms it into an electrical signal.
  • Once the electrical signal has been processed by the sensor, it becomes output as a control signal to the connected load or control system.
  • Depending on the reflectivity of the object and the particular setup of the sensor, the control signal either indicates the object's presence or absence.

Features

  • They feature fibreglass-reinforced plastic enclosures for structural rigidity.
  • These photoelectric sensors can be operated at temperatures ranging from -13 to 131 degrees F.
  • They provide reverse polarity and short circuit protection for added safety.

Standards and Approvals

  • CSA
  • CE

Frequently Asked Questions

Are Eaton 50 Series polarised reflex sensors dust or waterproof?

Yes, they are IP67 and IP69 rated to ensure protection from dust and water.

What is the response time of these AC / DC powered polarised reflex sensors?

  • DC operation: 2 ms.
  • AC operation: 15 ms.
