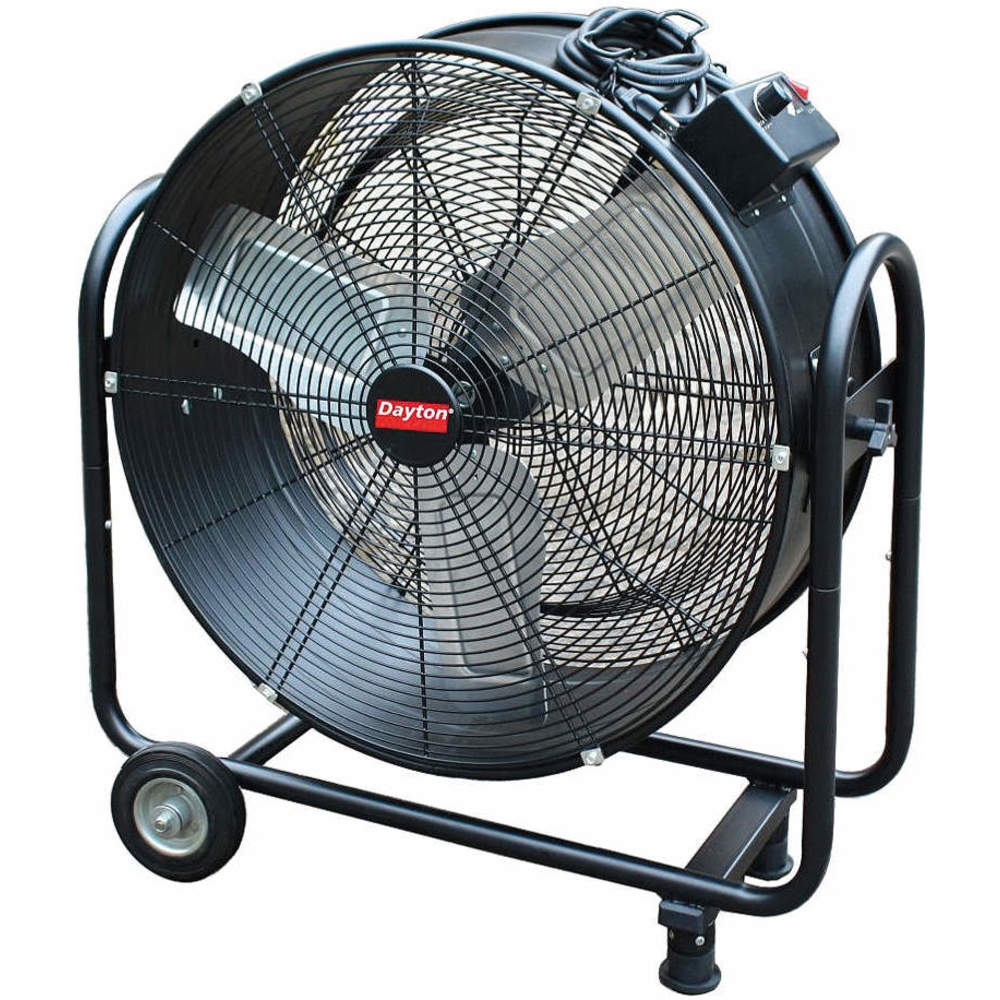

DAYTON 31XL41 Air Circulator 24 Inch 7000 Cfm 115v
Get it by Wednesday, Feb 18
10.00% off
€818.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Circulator |
| Air Flow | 7000 CFM |
| Air Velocity (fpm) @ 10 Ft. | 400 |
| Air Velocity (fpm) @ 20 Ft. | 250 |
| Air Velocity (fpm) @ 40 Ft | 95 FPM |
| Air Velocity (fpm) @ 40 Ft | 95 |
| Air Velocity (fpm) @ 60 Ft. | 8 FPM |
| Air Velocity (fpm) @ 60 Ft. | 8 |
| Air Velocity @ 10 Ft. | 400 FPM |
| Air Velocity @ 20 Ft. | 250 FPM |
| Amps | 0.1/3.1A |
| Assembled | Partially Assembled |
| Assembly Required | Yes |
| Bearing Type | Ball |
| Blade Dia. | 24" |
| Blade Material | Aluminum |
| Color | Black |
| Cord Length | 9 ft. |
| Depth | 14 1/2" |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
| Fan Accessory Style | Standard |
| Fan Cord Length | 9 ft. |
| Fan Housing Material | Steel |
| Fan Mounting Location | Floor |
| Fan Speed | 250/1200 RPM |
| Fan Style | Standard |
| Features | Variable Speed Motor |
| Guard Material | Steel |
| Head Tilt Adjustment | 360° |
| Height | 31 3/8" |
| Height Adjustment | Fixed Height |
| Housing Material | Steel |
| Hz | 60 Hz |
| Includes | 5" Steel And Rubber Wheels, Cord Wrap, Tilt Fan Housing |
| Max. Ambient Temp. | 120°F |
| Max. Depth | 13 1/2" |
| Mobile/stationary | Mobile |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Hp | 1/4 hp |
| Motor Insulation | Class A |
| Motor Insulation Class | Class A |
| Motor Speed | 250/1200 RPM |
| Motor Type | DC Brushless |
| Mounting Location | Floor |
| Mounting Style | Mobile |
| Nema Plug Configuration | 5-15P |
| Number Of Blades | 3 |
| Number Of Speeds | 1 |
| Oscillating | No |
| Oscillating/non-oscillating | Non Oscillating |
| Oscillation | Non Oscillating |
| Outside Dia. | 25" |
| Phase | 1 |
| Product Type | Standard-Duty Industrial Fan |
| Rpm | 250/1200 RPM |
| Shaft Dia. | 12 mm |
| Sound Level | 73 dBA |
| Thermal Protection | Automatic Reset |
| Voltage | 115V AC |
| Watts | 250 W |
| Wheel Dia. | 5" |
| Wheel Material | Steel, Rubber |
| Wheeled Base | Mobile |
| Width | 29 1/4" |
| Wire Guard Finish | Polyester Powder Coat |
Shipping Info:
| Ship weight (kg) | 20.13 |
| Ship height (cm) | 78 |
| Ship length (cm) | 30.99 |
| Ship width (cm) | 81 |
| HS code | 8414596090 |
| Country of Origin | CN |
Product Details:
- Mobile/Stationary (Mobile)
Product Variants
| Product | Model | Number Of Speeds | Voltage | Blade Dia. | Motor Hp | Mounting Location | Guard Material | Thermal Protection | Max. Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1YNW3 | 2 | 120V AC | 24" | 1/3 hp | - | Steel | Automatic Reset | 19 3/4" | €458.23 | |
 |
1YNW4 | 2 | 120V AC | 30" | 1/3 hp | - | Steel | Automatic Reset | 20" | €564.61 | |
 |
1YNW5 | 2 | 120V AC | 36" | 1/2 hp | - | Steel | Automatic Reset | 20 1/4" | €1,002.09 | |
 |
1YNW6 | 2 | 120V AC | 42" | 1/2 hp | - | Steel | Automatic Reset | 20 1/4" | €1,757.04 | |
 |
1YNW7 | 2 | 120V AC | 36" | 1 hp | - | Steel | Automatic Reset | 24 1/4" | €973.22 | |
|
1YNW8 | 2 | 120V AC | 42" | 1 hp | - | Steel | Automatic Reset | 24 1/4" | €1,556.79 | |
 |
2RDZ1 | 2 | 120V AC | 24" | 1/3 hp | - | Galvanized Steel | Automatic Reset | 15" | €699.95 |
